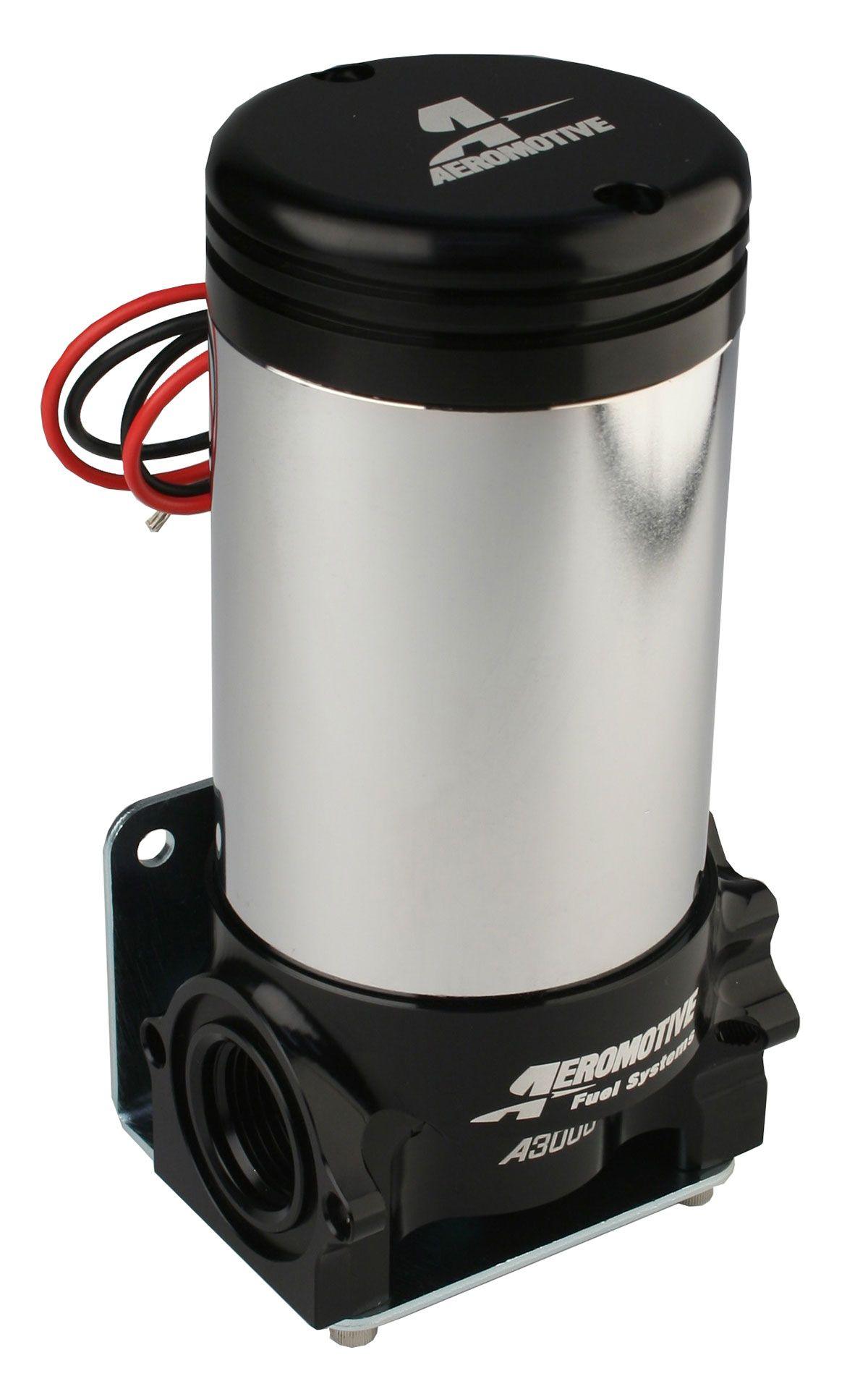

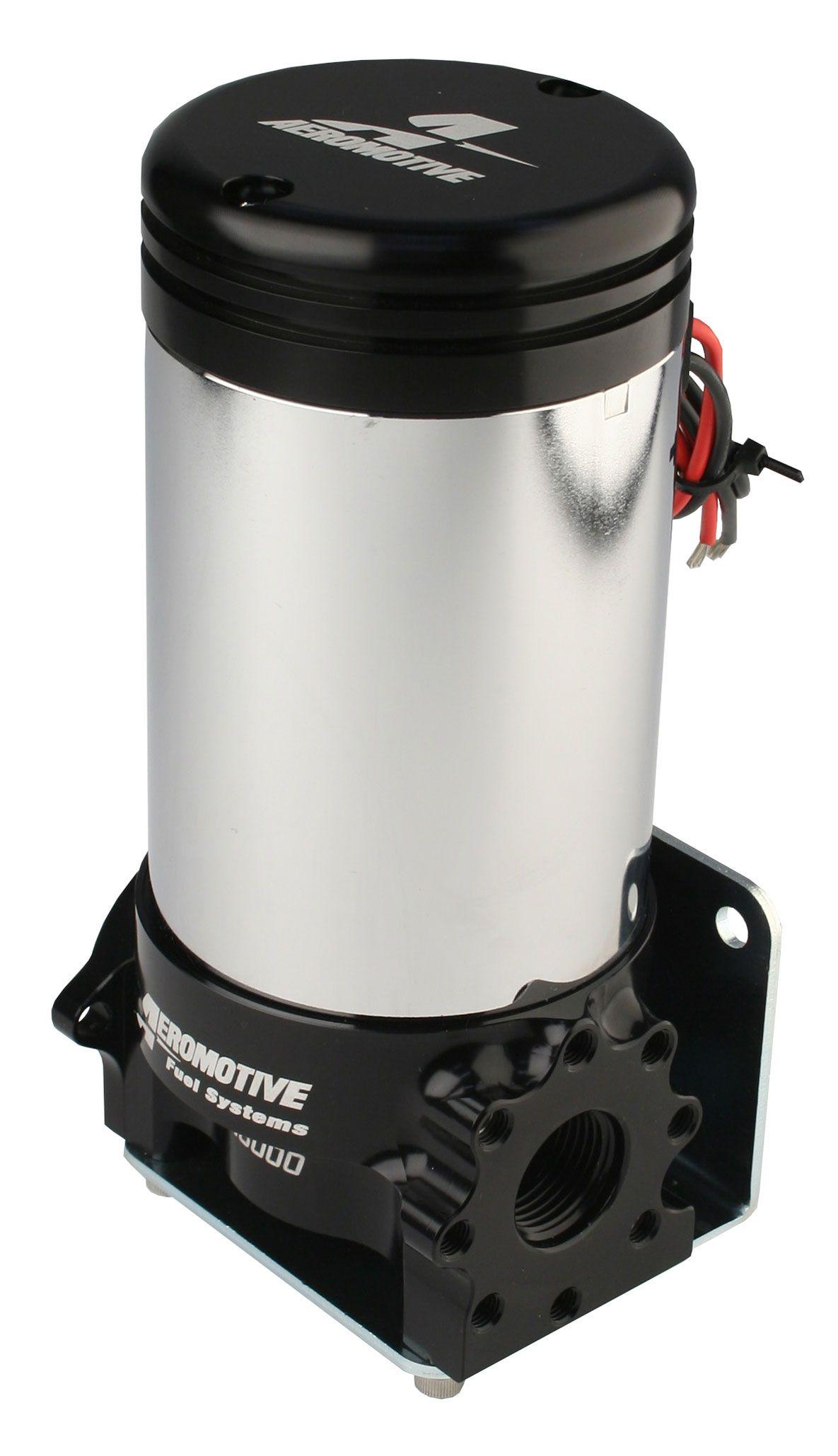

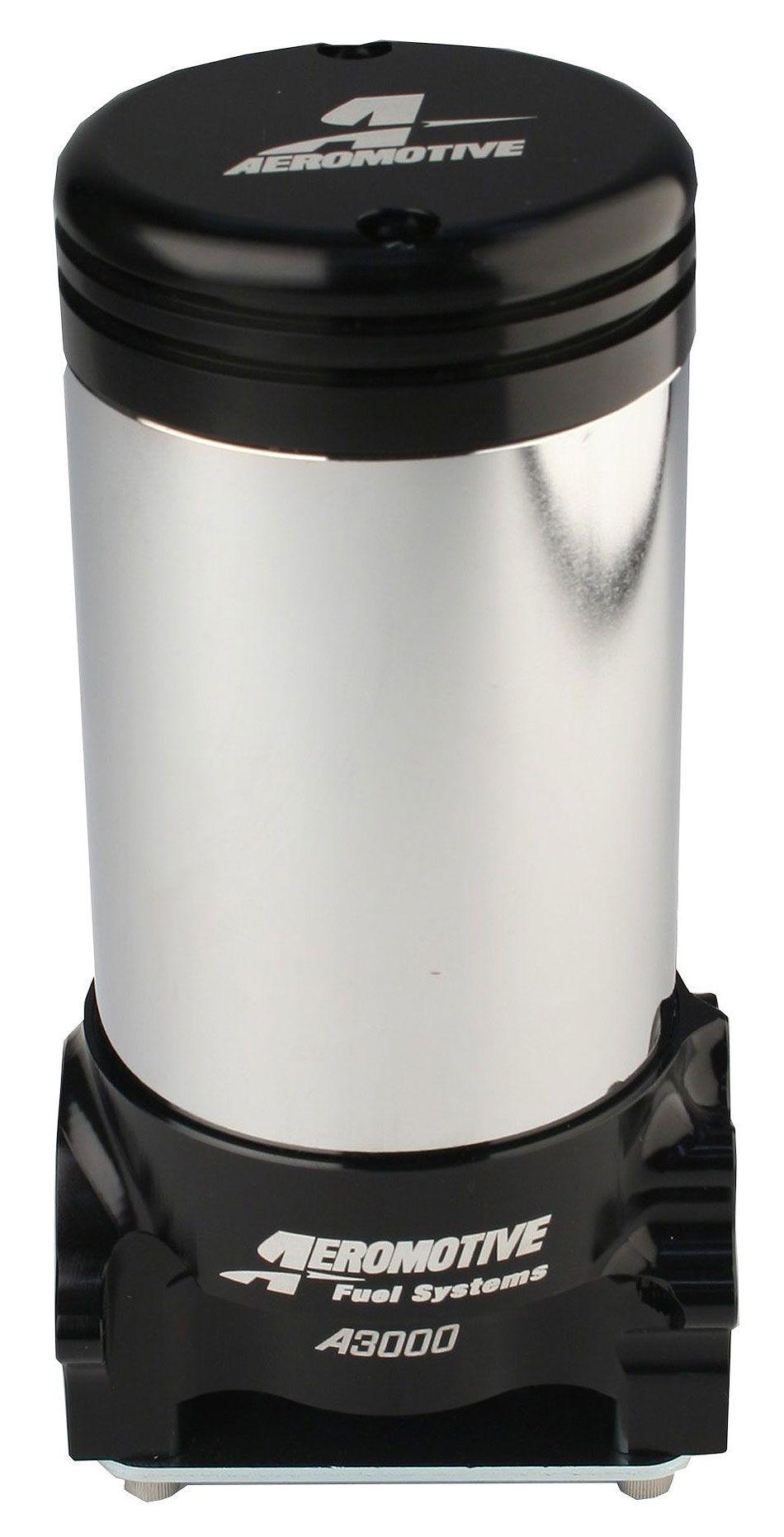

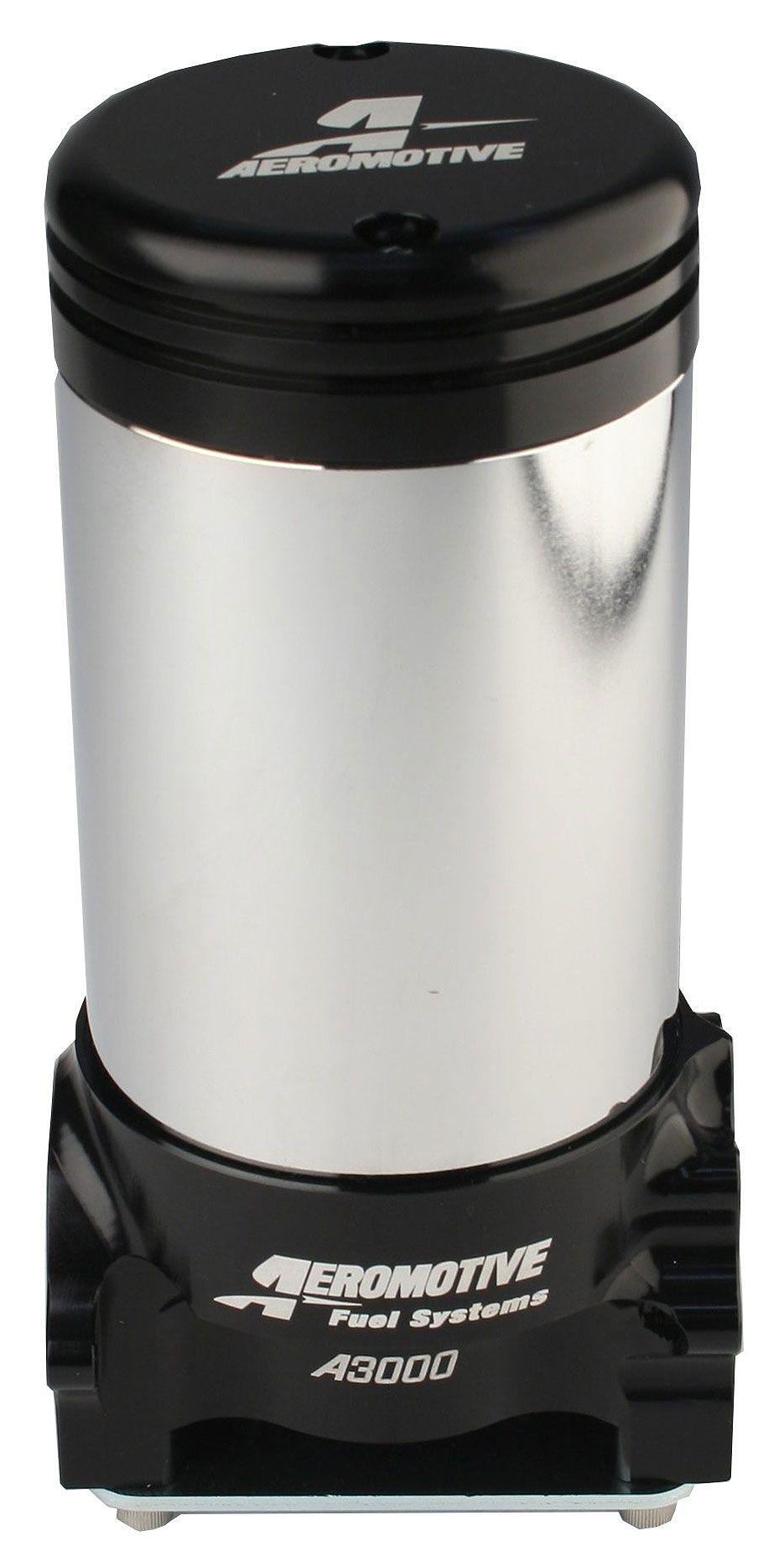

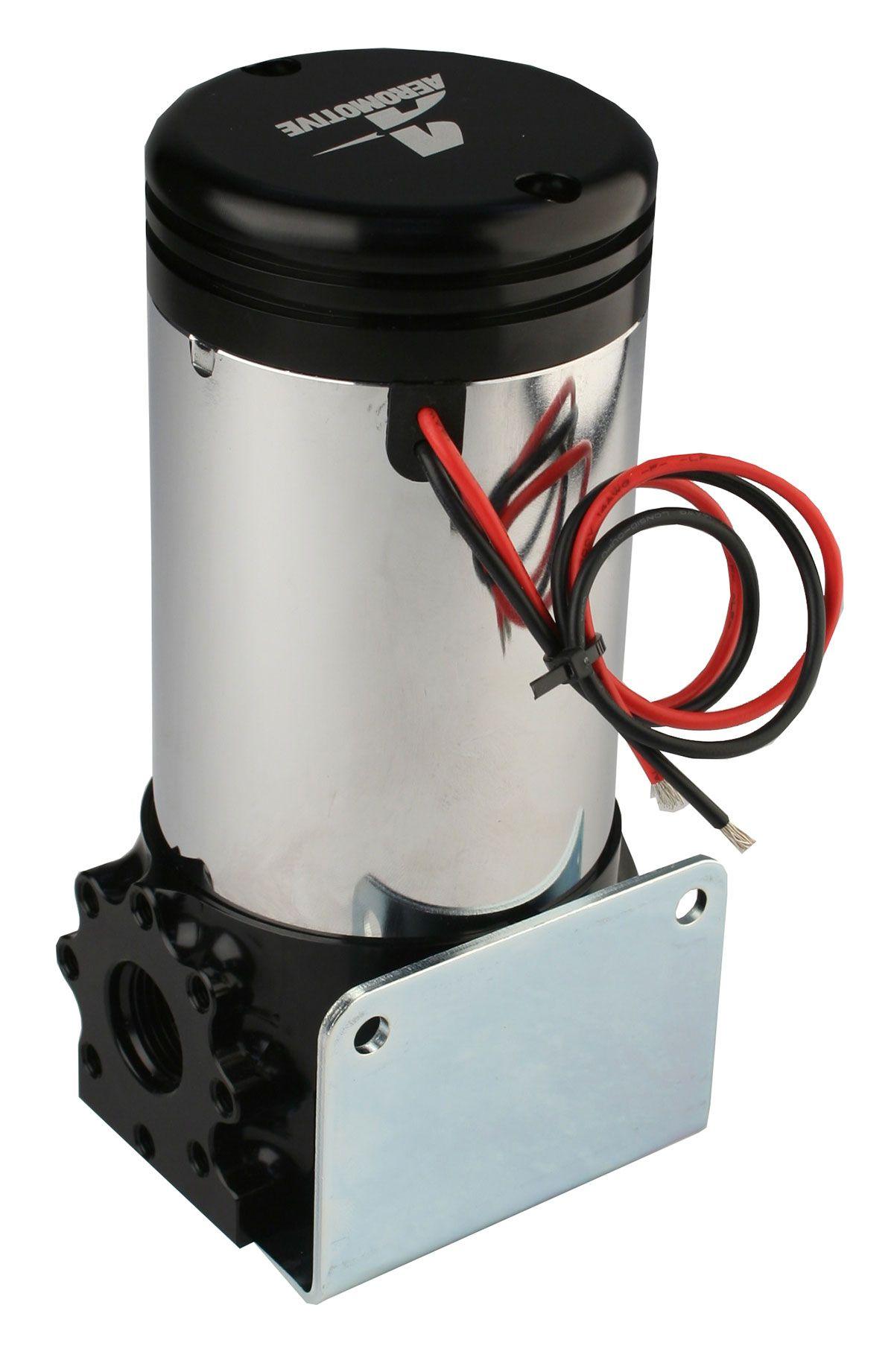

Aeromotive A3000 Electric Fuel Pump (ARO11216)

ARO11216 - A3000 DRAG RACE CARB FUEL PUMP

Suit Carburettor Application

Part Number: ARO11216

The new A3000 Fuel Pump is an upgrade and redesign to one of the winningest fuel pumps in drag racing, the popular A2000 Fuel Pump. The A3000 features the same basic design and function as its predecessor but boasts less weight, over 1 GPM more flow at pressure and never-before-seen modular features and mounting options, like a removable and indexible fuel filter and true diaphragm-controlled bypass regulator.
The A3000 Fuel Pump provides more mounting provisions, enhanced performance and better pressure control than any fuel pump in its class. This crafty Modular design affords the racer a variety of options for mounting and pressure control. When mated with the P/N 11218 100-Micron Filter and / or the P/N 11217 Pressure Regulator, (both parts sold separately) you have the ability to independently index those components for a custom installation on your race car. If you already have a compatible Pre-Filter* or don’t want to utilize a return on the pump, the pump can operate as a “stand alone” featuring a -12 ORB inlet port and -10 ORB outlet port.
Features:
15% more flow across the entire pressure range (vs. the A2000)
Light weight (5.1 lbs)
6.8 gpm @ 5 psi / 13.5V (Over 400 gph)
New ORB-12 Inlet, ORB-10 Outlet
Alcohol / Methanol Compatible
Multiple bolt patterns on the bottom of the pump fit almost any chassis mounting options, including competitor's pumps.
Integrated Pre-Pump Fuel Filter
True Diaphragm Controlled Bypass Regulator Integrated into the pump
