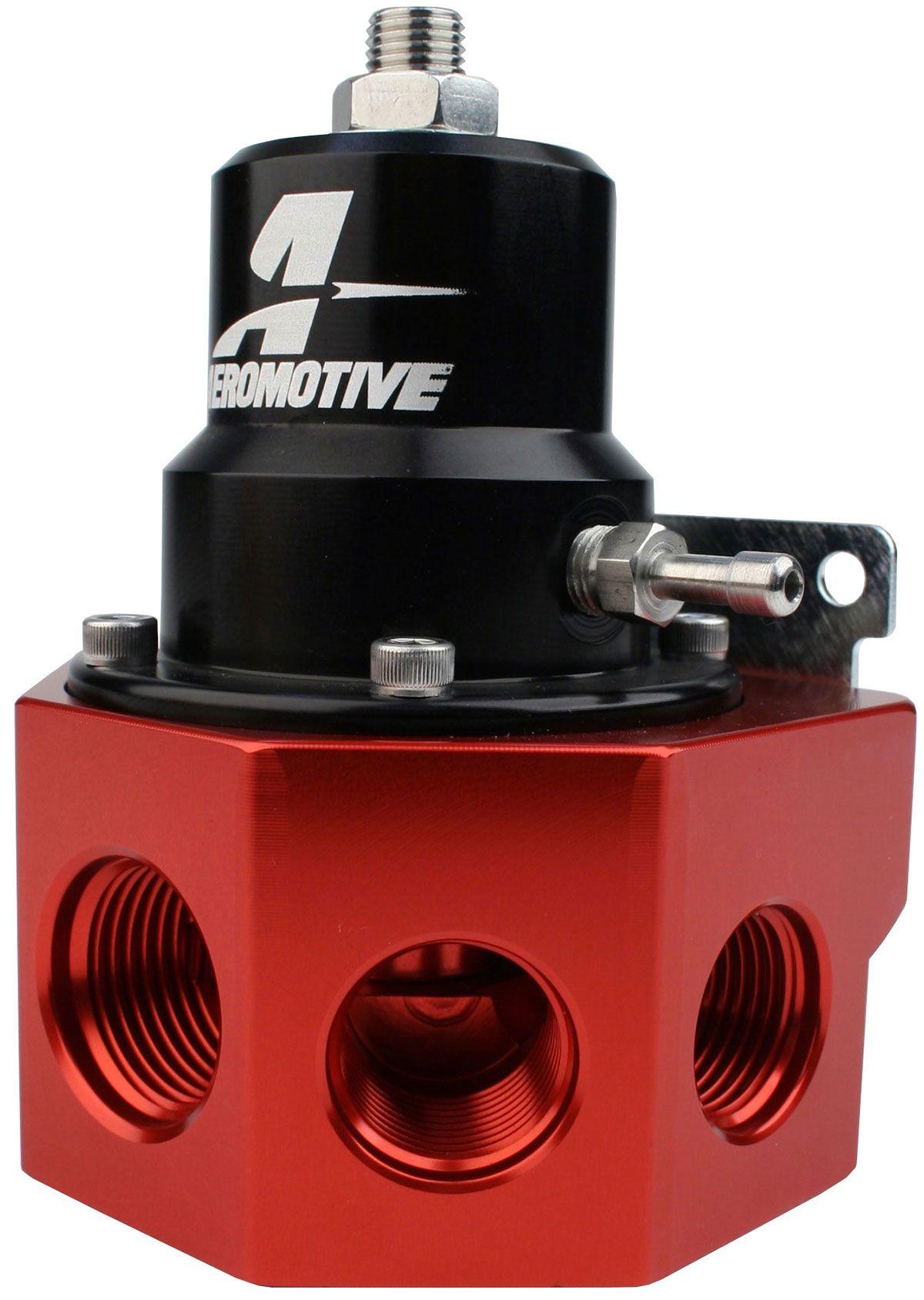

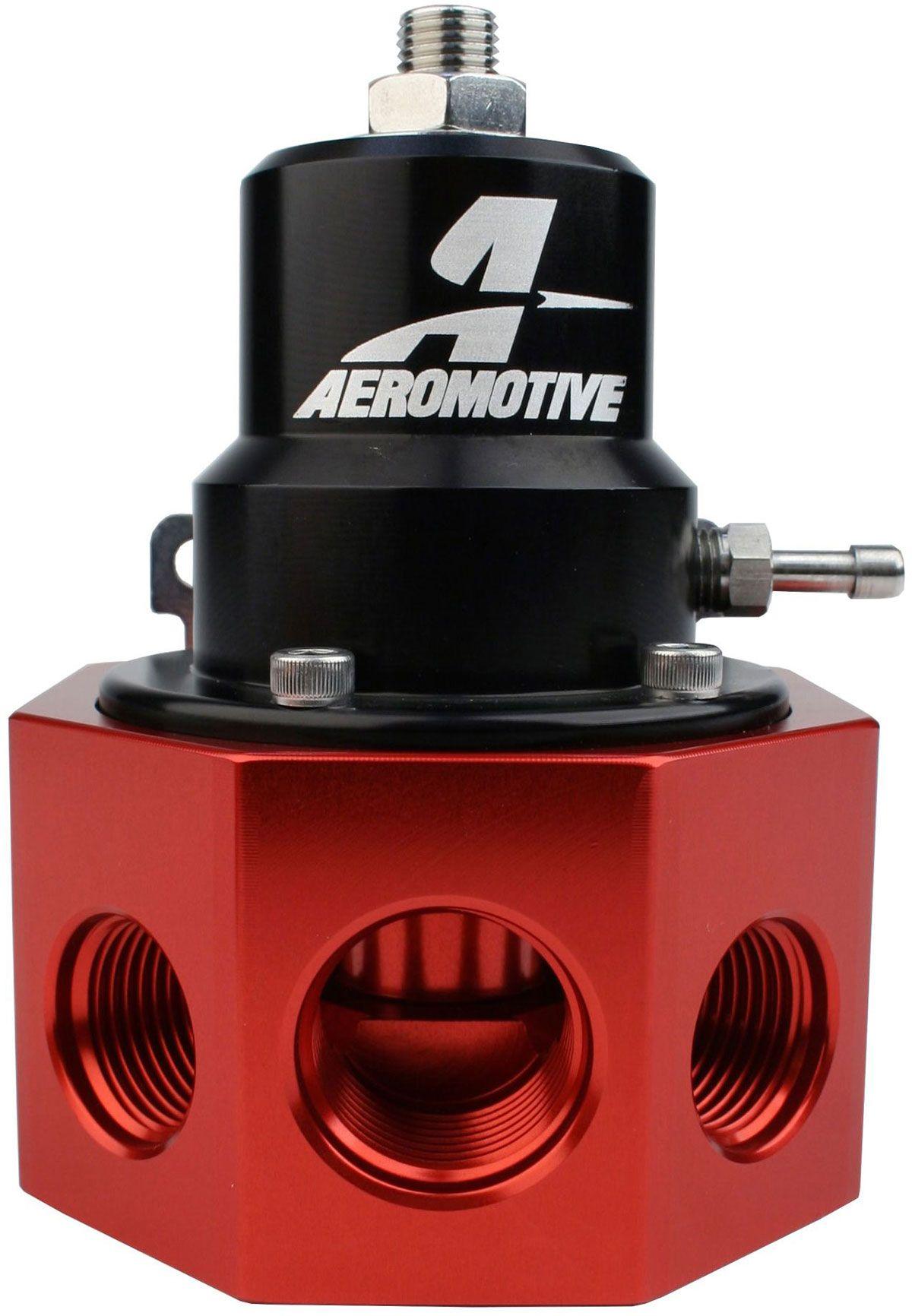

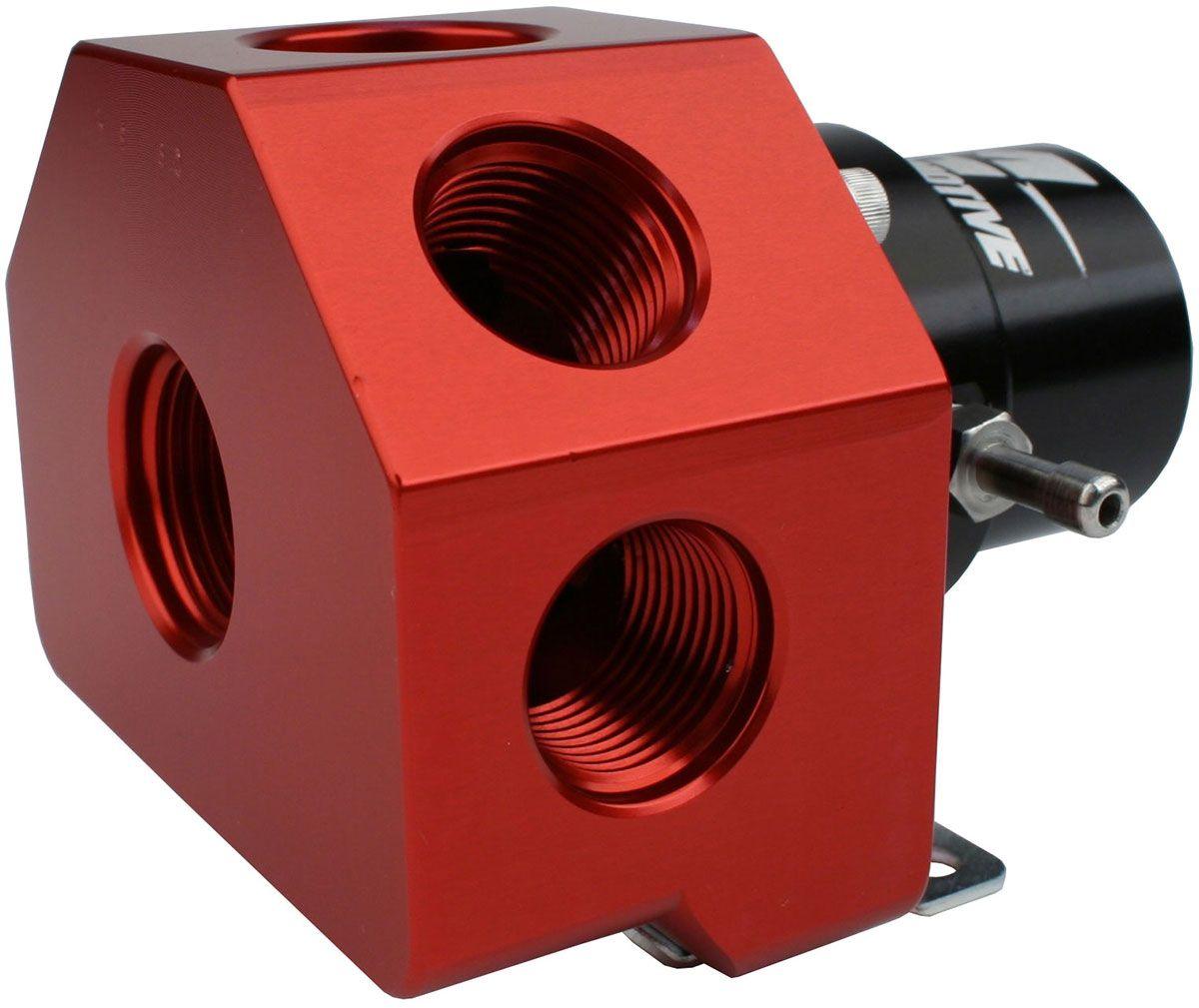

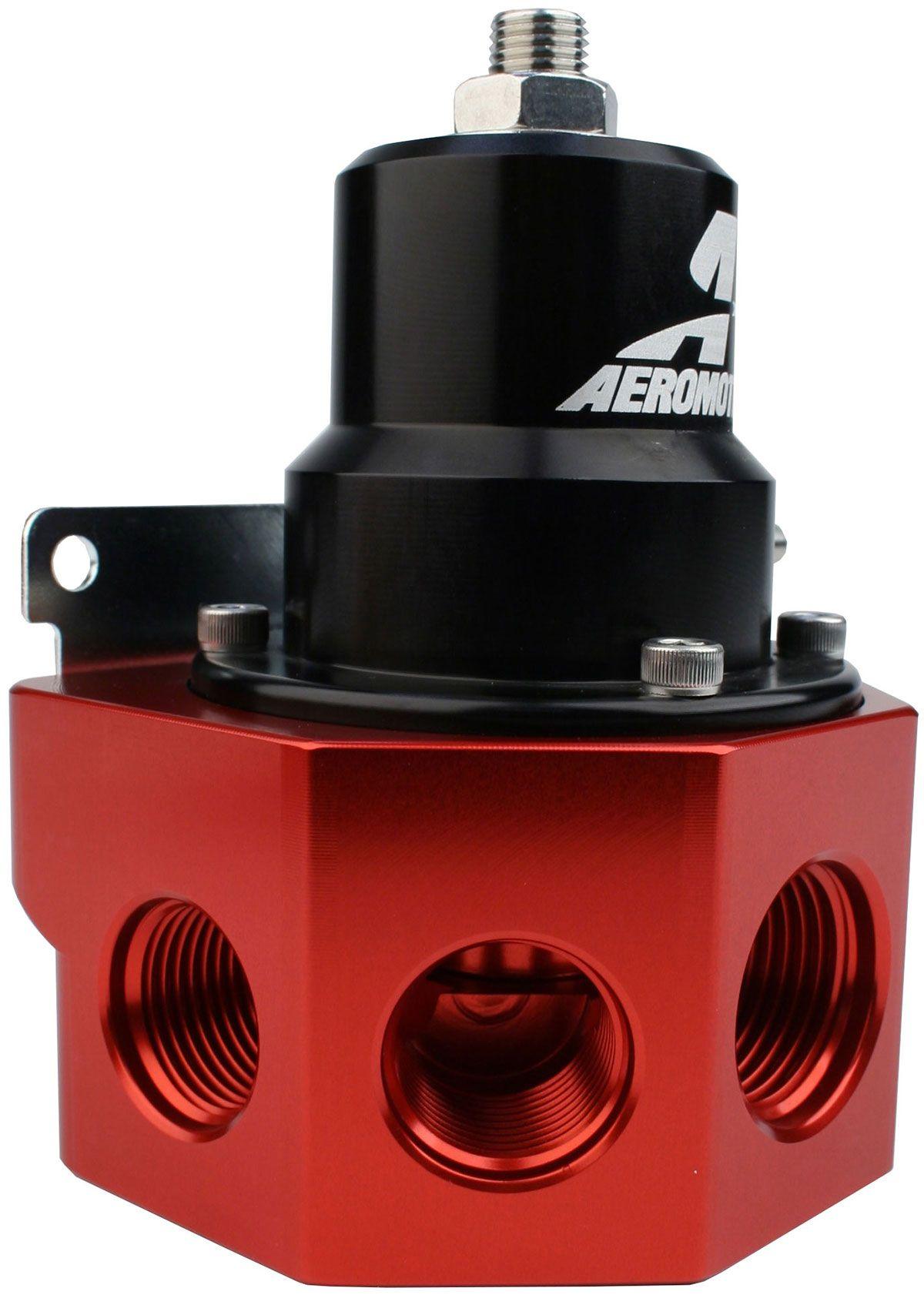

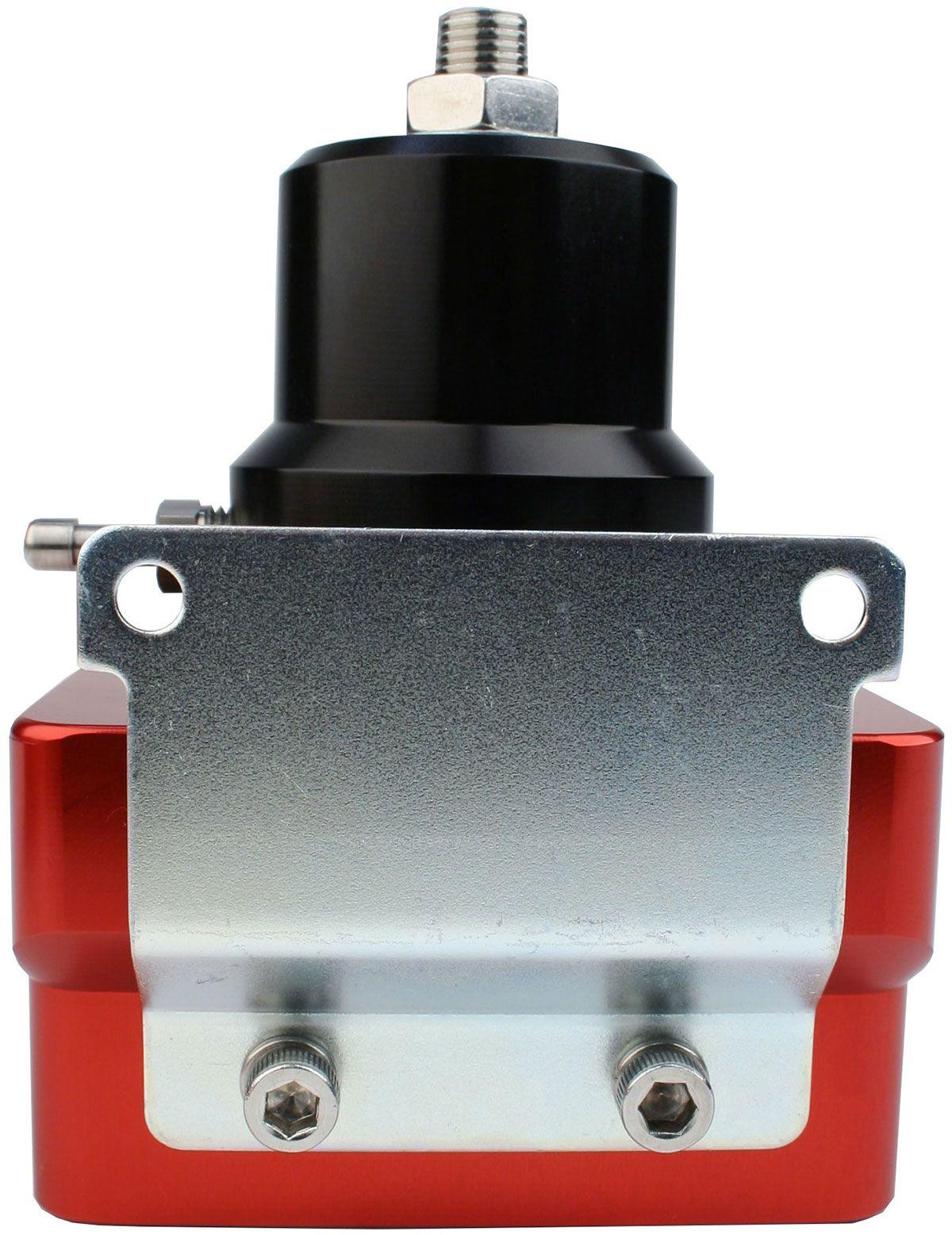

Aeromotive A2000 Bypass Fuel Pressure Regulator (ARO13202)

ARO13202 - AEROMOTIVE CARB BYPASS REG

2-20 PSI. ORB-10 Inlet Ports, ORB-8 Outlet Ports

Part Number: ARO13202

Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carburetted blow-through applications. The A2000 Bypass Regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump.
Features:

Adjustable from 2-20 PSI
Bypass design provides the ultimate, dynamic fuel delivery system (Requires AN-10 return line)
Fuel pressure rises on a 1:1 ratio when referencing boost
ORB-10 inlet and return ports
Provides (4) ORB-08 outlet ports
