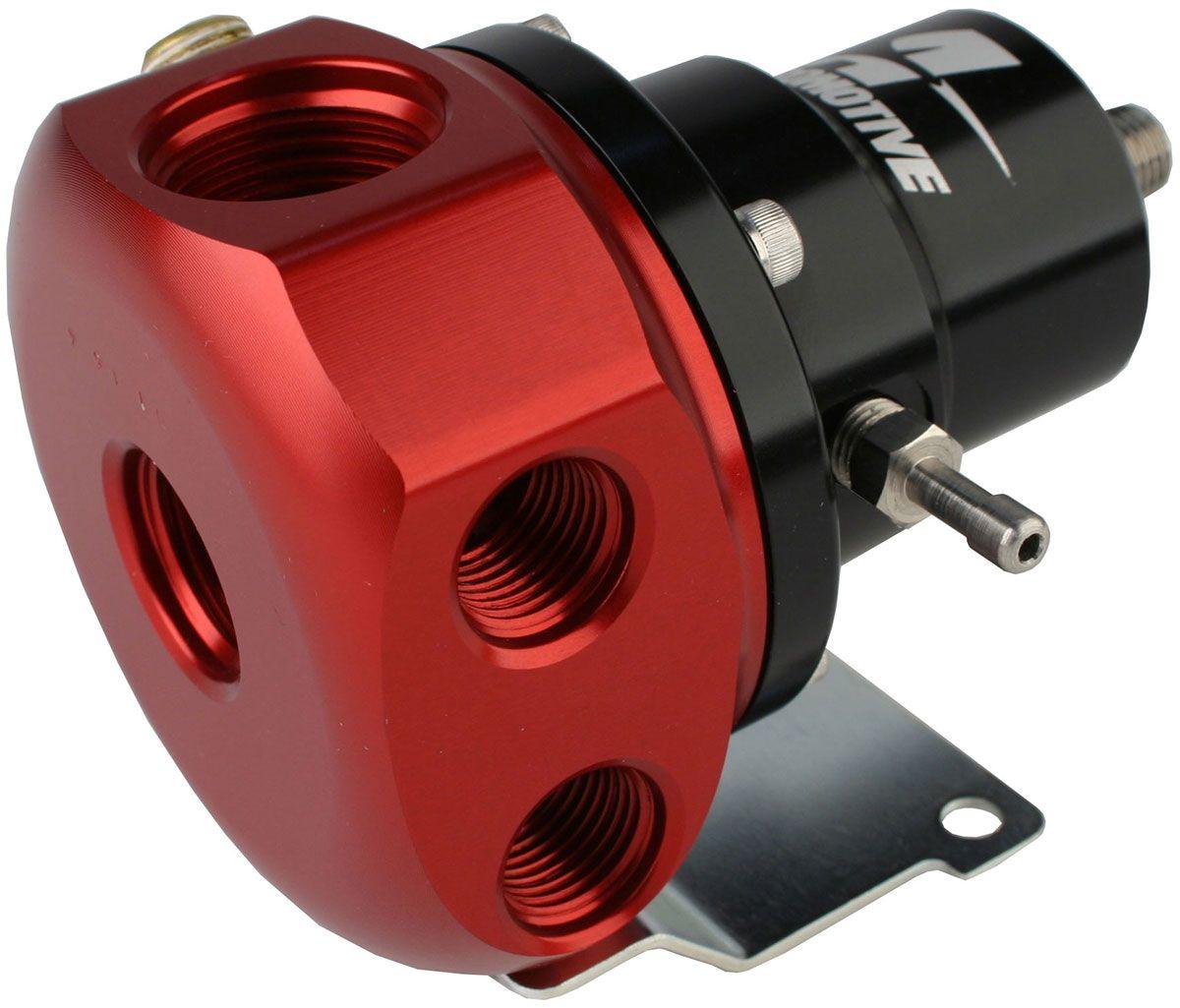

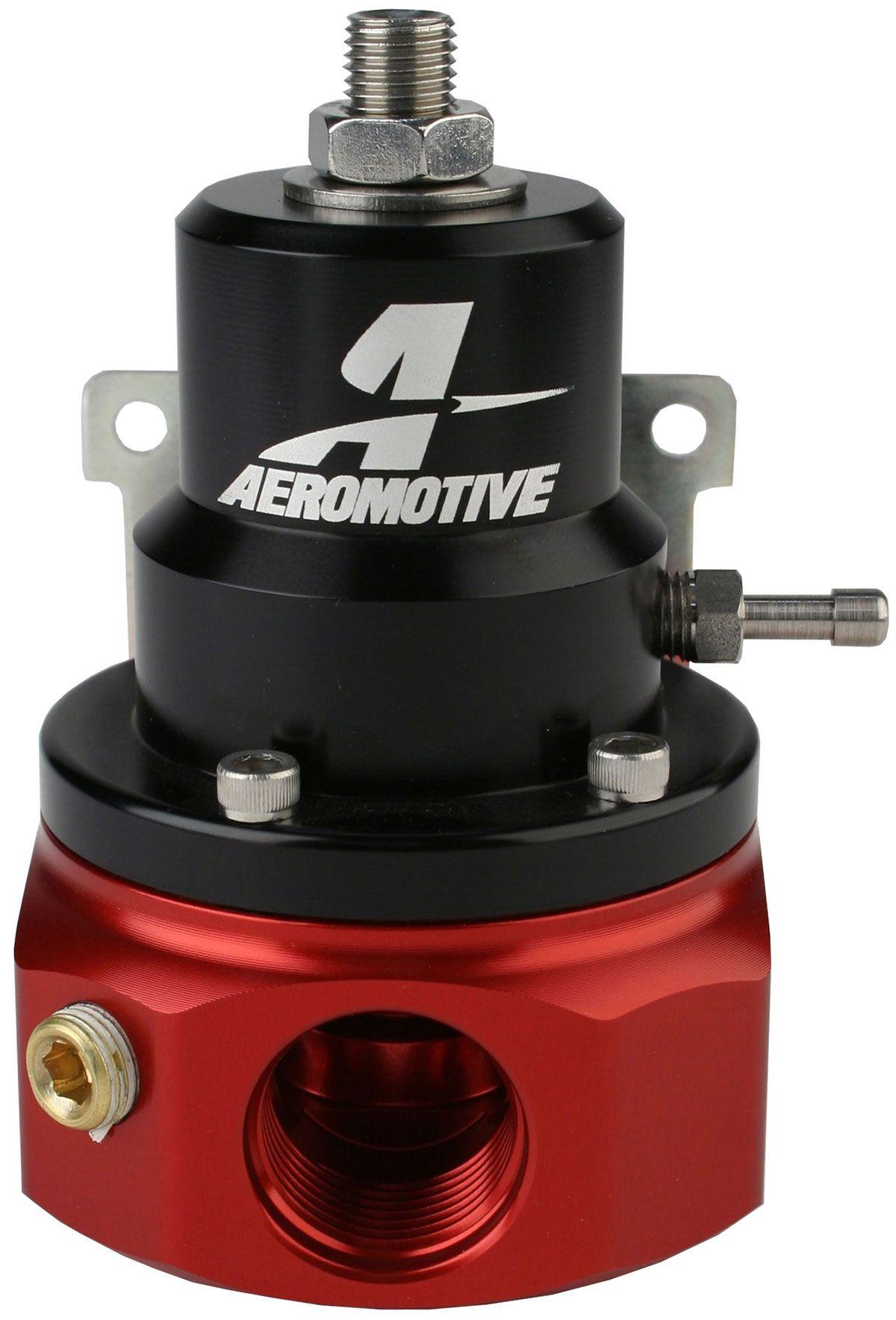

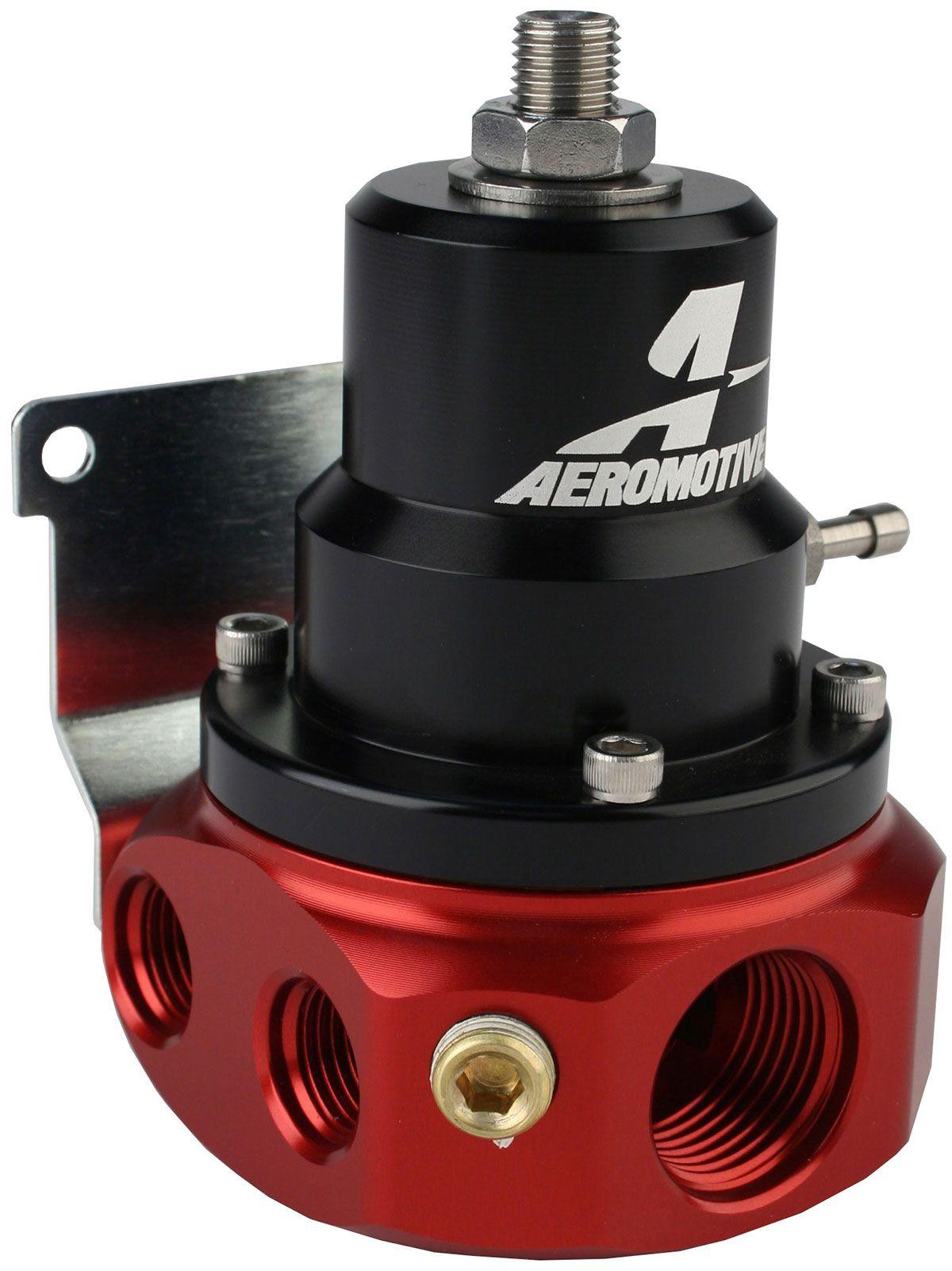

Aeromotive A1000 4-Port Bypass Fuel Regulator (ARO13224)
Suit Carburettor With X1 -10AN Inlet, X4 -6AN Outlet & -8AN Bypass
Aeromotive A1000 4-Port Bypass Fuel Regulator (ARO13224)
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
AEROMOTIVE CARB BYPASS 4xPORT
Suit Carburettor With X1 -10AN Inlet, X4 -6AN Outlet & -8AN Bypass
Part Number: ARO13224
The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carburettor application. These regulators are perfect for naturally aspirated or "blow-through" supercharged engines.
Features:
- Base fuel pressure adjustable from 3-15 PSI.
- (1) ORB-10 inlet port and (1) ORB-08 return port.
- P/N 13224 provides (4) ORB-06 outlet ports and 1/8" NPT gauge port.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- Bypass design provides the ultimate, dynamic fuel delivery system.
- Ideal for converting from fuel injection to carburetion using the stock, in-tank pump.
- EFI conversions will require a larger-than-stock return line for proper low pressure control.
