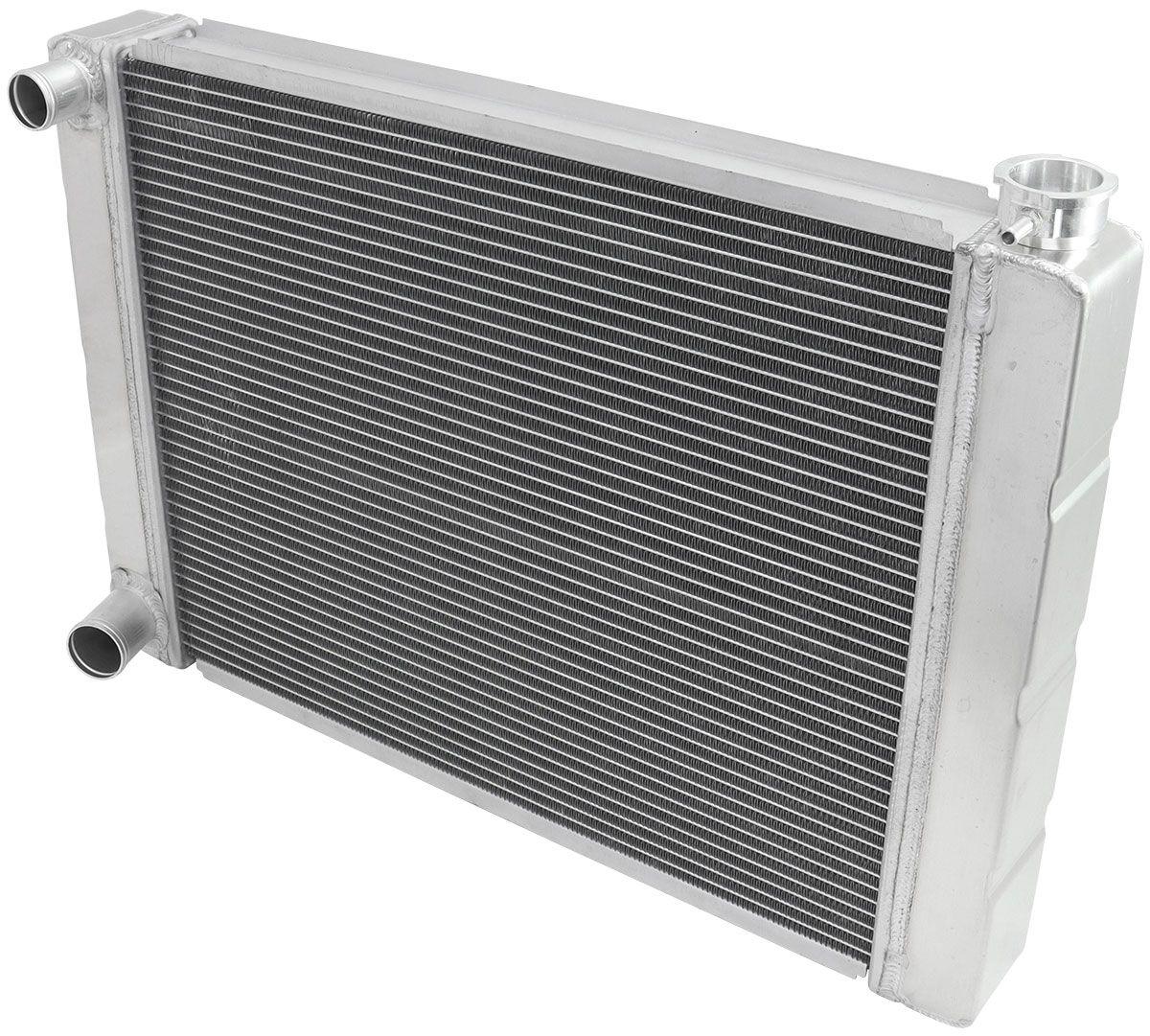

Aeroflow Universal GM Aluminium Radiator, Dual Pass, 27" x 19" x 3" (AF77-2063)

AF77-2063 - UNIVERSAL GM RADIATOR 27" x

Core Dimensions 19.75" x 19" x 2.25"

Part Number: AF77-2063

Aeroflow Performance line of universal aluminium radiators makes it easy for budget-minded car builders to get a professional quality aluminium radiator. Constructed from aluminium, we braze the radiator assembly which minimizes metal fatigue and allows for maximum durability and performance.
The double-pass design flows the coolant twice, once through the top half of the radiator then again in the bottom half of the radiator. This allows the coolant longer time in the airflow and lowering your coolant temperatures by 10-20 degrees compared to the single pass design. This makes it great street and race applications. Dual pass design radiators will have the inlet and outlets on the same side.
These universal radiators are not made for any one specific car and will require modifications to fit your application. All radiators do not have any mounting brackets, this means you can easily adapt our radiator to any application.

Specifications: Dimensions:
Overall Height - 470mm
Overall Thickness - 78mm
Overall Width - 690mm
Core Height - 448mm
Core Width - 555mm
Core Thickness - 58mm
*Refer to instructions/photos for further dimensions

Mounting Bungs 5/16”-18 x 4

Radiator Hose Inlet Size - 1.5” (38mm)
Radiator Hose Inlet (upper) Location - Australian Passenger side

Radiator Hose Outlet Size - 1.75” (44mm)
Radiator Hose Outlet (lower) Location - Australian Passenger side
Suits Large 42mm Radiator Cap (sold separatley)
