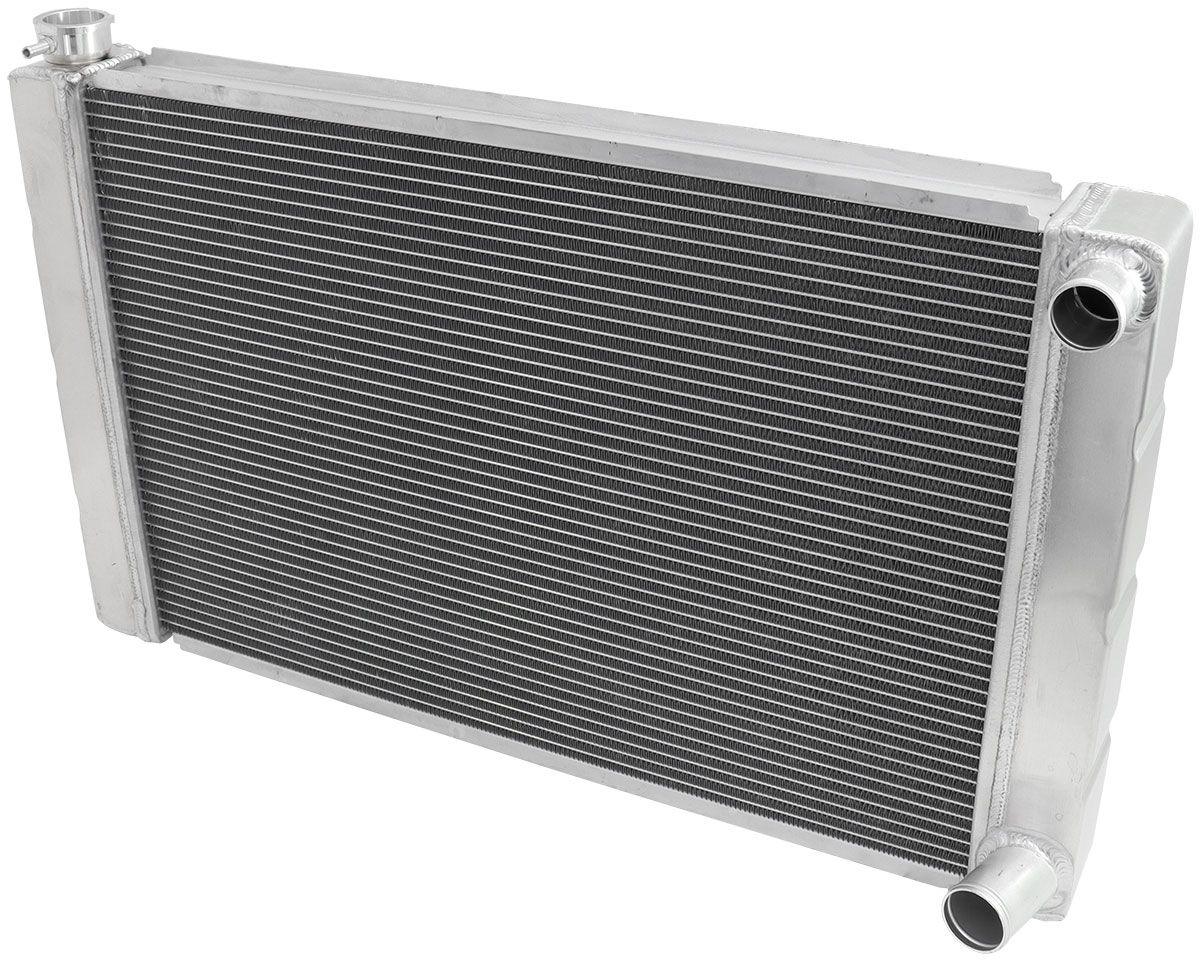

Aeroflow Universal Ford Aluminium Radiator, Dual Pass, 31" x 19" x 3" (AF77-2056)

Core Dimensions 22.25" x 19" x 2.25"
SKU: AF77-2056
Original price $590.90 - Original price $590.90
Original price
$590.90
$590.90 - $590.90
Current price $590.90
+ GST
Availability:
Available, allow for 2-10 days shipping

AF77-2056 - UNIVERSAL FORD RADIATOR 31" x

Core Dimensions 22.25" x 19" x 2.25"

Part Number: AF77-2056

Aeroflow Performance line of universal aluminium radiators makes it easy for budget-minded car builders to get a professional quality aluminium radiator. Constructed from aluminium, we braze the radiator assembly which minimizes metal fatigue and allows for maximum durability and performance.
The double-pass design flows the coolant twice, once through the top half of the radiator then again in the bottom half of the radiator. This allows the coolant longer time in the airflow and lowering your coolant temperatures by 10-20 degrees compared to the single pass design. This makes it great street and race applications. Dual pass design radiators will have the inlet and outlets on the same side.
These universal radiators are not made for any one specific car and will require modifications to fit your application. All radiators do not have any mounting brackets, this means you can easily adapt our radiator to any application.

Specifications: Dimensions:
Overall Height - 470mm
Overall Thickness - 78mm
Overall Width - 791mm
Core Height - 457mm
Core Width - 656mm
Core Thickness - 58mm
*Refer to instructions/photos for further dimensions

Mounting Bungs 5/16”-18 x 4

Radiator Hose Inlet Size - 1.5” (38mm)
Radiator Hose Inlet (upper) Location - Australian Drivers side

Radiator Hose Outlet Size - 1.75” (44mm)
Radiator Hose Outlet (lower) Location - Australian Drivers side
Suits Large 42mm Radiator Cap (sold separatley)

Instructions
