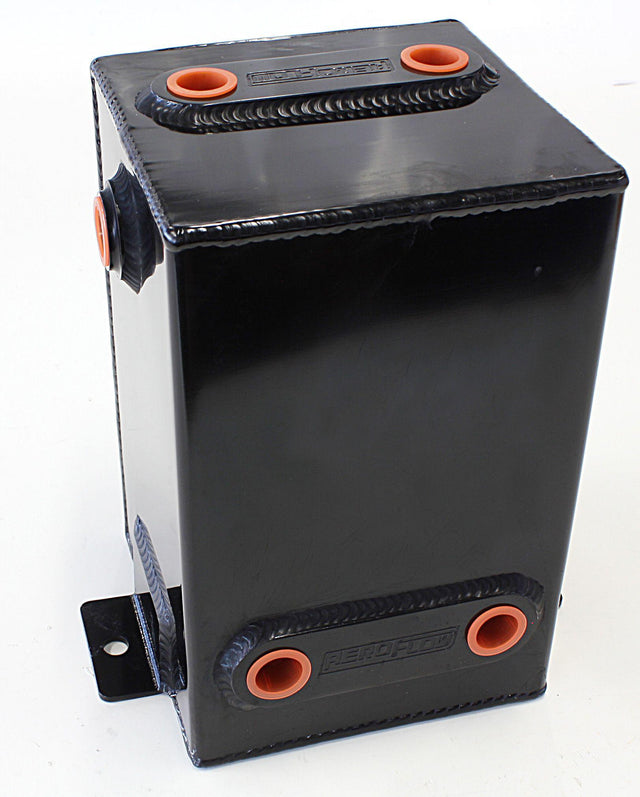

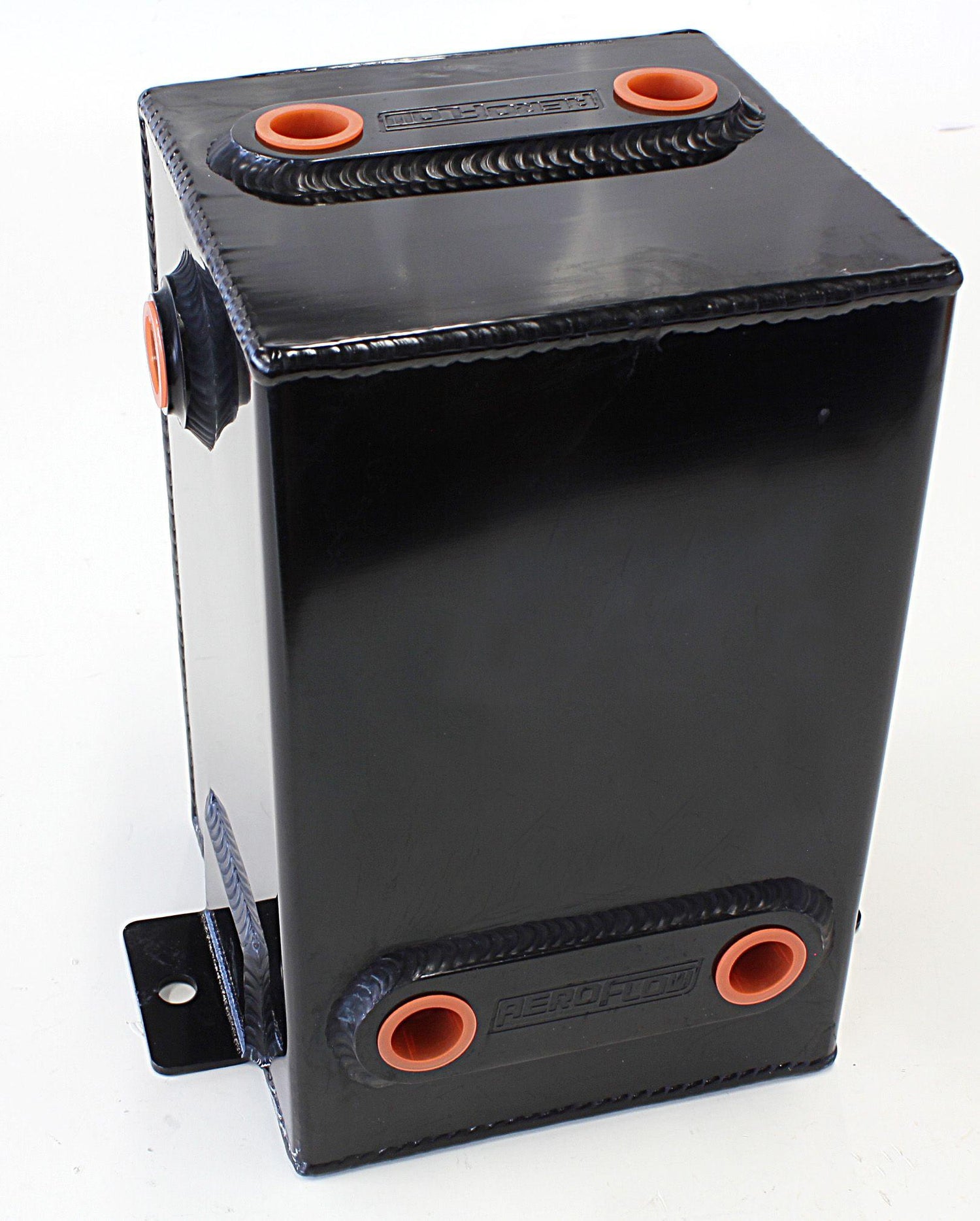

Aeroflow Universal Fabricated Alloy Tank (AF77-1012BLK)3.1L capacity, 5" L x 5" W x 8.25", Black finish
3.1L capacity, 5" L x 5" W x 8.25", Black finish
Part Number: AF77-1012BLK
These Aeroflow Performance alloy tanks are designed for universal applications. They can be used for such applications including surge tanks, breather tanks, water tanks, vacuum tanks and many more. They are robotically TIG welded with 2.5mm thick aluminium. The tanks feature eight female -8 O-ring ports that allow vast variety of adapter fittings to be placed into various positions around the tank. NOTE: if not using all ports ensure to block them with fittings (sold separately). This tank has two female -8an O-rings ports located on the top, front and back of tank, also one on each side of the tank above the mounting tabs. This allows multiple locations for plumbing applications.
This tank comes with mounting tabs welded to the sides of the tank. When mounting this universal alloy tank ensure it is correctly mounted and secured using appropriate methods. Available in various sizes which hold different capacities and available in polished or black finishes.
Tank Height: 210mm (8-1/4")
Tank Length: 127mm (5")
Tank Width: 127mm (5")
Centre to Centre of Mounting Tabs: 162mm
Centre to Centre of Bottom -8ORB Ports: 78mm
Centre to Centre of Top -8ORB Ports: 78mm
Bottom of Tank to Side -8ORB Ports: 179mm
Capacity: 3.1 Litres (105oz)
