Aeroflow Turbo Drain Adapter (AF463-03)

-10AN ORB outlet, 52.4mm bolt centre, Black Finish
SKU: AF463-03
Save $4.56 Save $4.56
Original price $45.60
Original price $45.60 - Original price $45.60
Original price $45.60
Current price $41.04
$41.04 - $41.04
Current price $41.04
+ GST
Availability:
Available, allow for 2-10 days shipping

AF463-03 - TURBO DRAIN ADAPTER -10 ORB

-10AN ORB outlet, 52.4mm bolt centre, Black Finish

Part Number: AF463-03

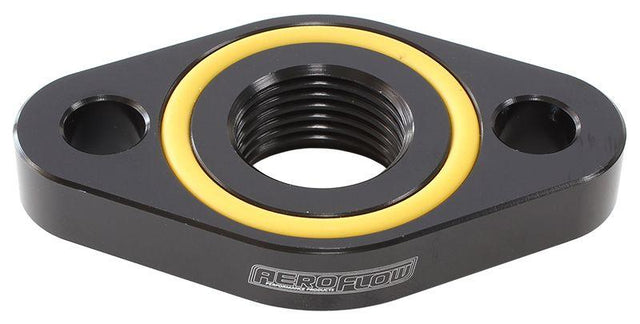

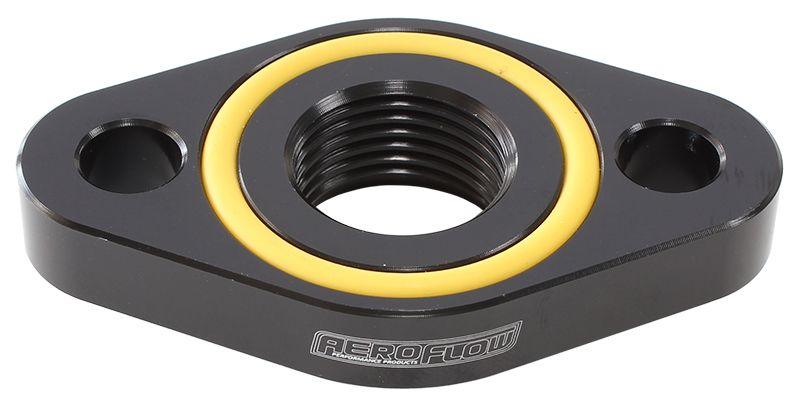

Turbo Oil Drain Adapter With O-Ring Seal.

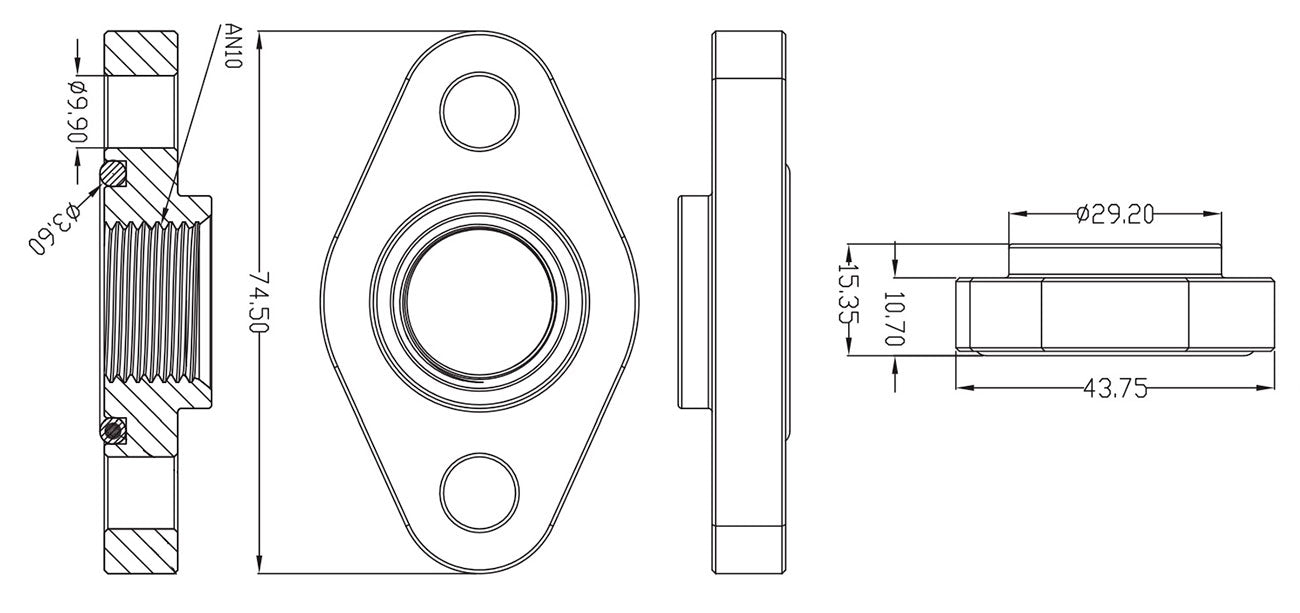

-10 ORB female with 52.4mm hole centres to suit turbos with 52.4mm bolt centres on core.

This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose.
