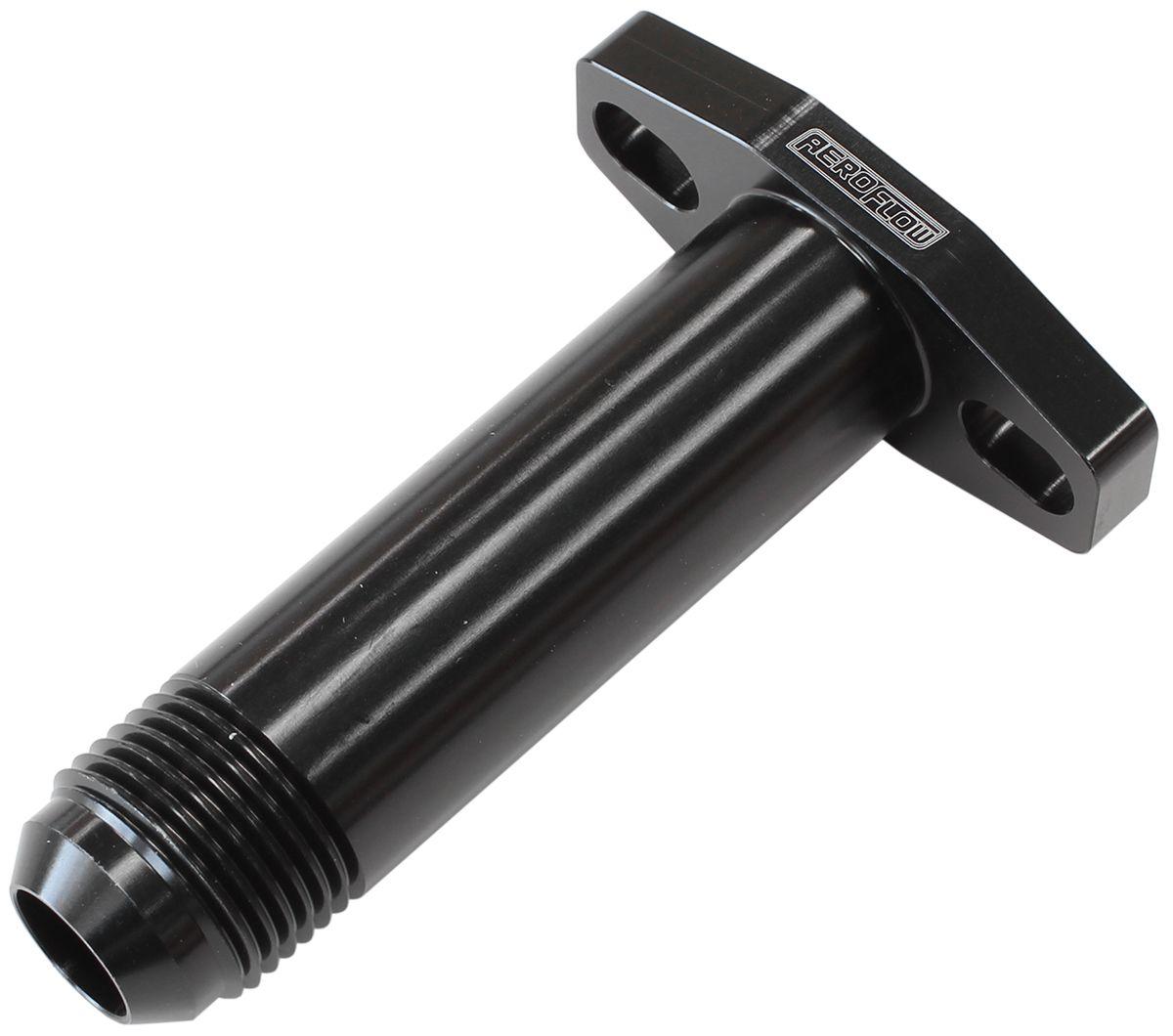

Aeroflow Turbo Drain Adapter (AF463-05L)

AF463-05L - TURBO DRAIN ADAPTER -10AN 3"

-10AN ORB outlet, 3" Long, 38-44mm bolt centre, Black Finish

Part Number: AF463-05L

Turbo Oil Drain Adapter With O-Ring Seal.

-10 AN male 3" (75mm) long tube with 38-44mm hole centres to suit turbos with 38mm bolt centres on core.

This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose.
