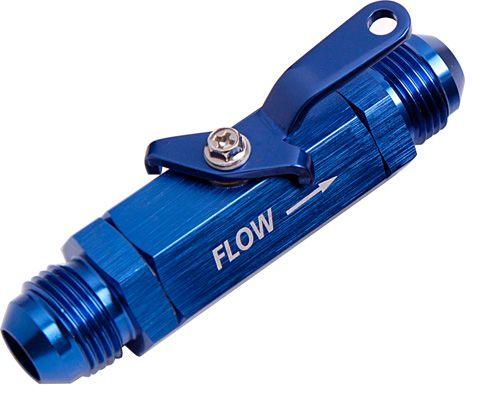

Aeroflow Shut Off Valve -4AN (AF1000-04)
Blue FinishSHUT OFF VALVE -4AN BLUE.
Blue Finish
Part Number: AF1000-04
Aeroflow Performance shut-off valves allow you to easily control the flow of fluid with just a simple quickturn of a handle. These shut-off valves have a large handle that make them easy to use along with a hole to attach a cable. Internally they feature a stainless-steelball and the outside is clearly marked for proper flowdirection. Made from 6061 billet aluminium construction with anodized finishes, and are available in a variety of AN sizes to best suit your application requirements. Thismakes them great for applications such as an emergency fuel shut, anti-theft device or for draining fluid. They are both e85 and methanol safe, we do not recommend these for nitro fuel however. These valves have a maximum pressure ratingof 300 psi
Specifications: Dimensions:
Overall Length - 85mm
Body Length - 43.85mm
Overall Diameter - 22.25mm
Lever Handle Hole - 4.75mm
