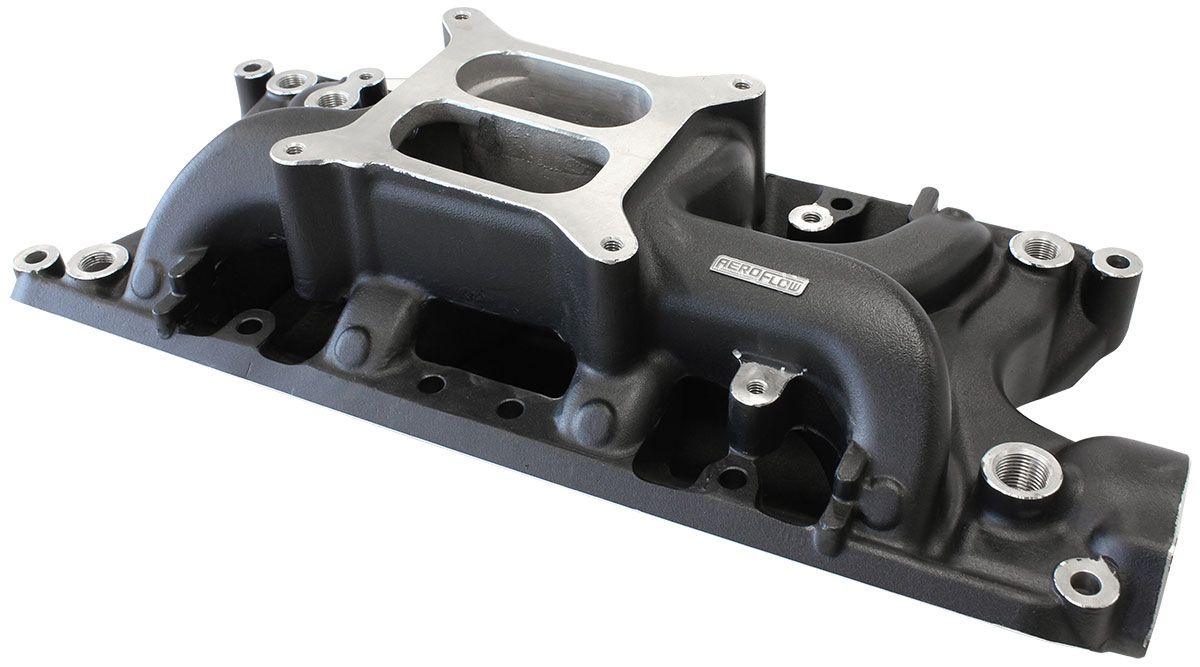

![Aeroflow SB Ford 289-302 Windsor Air Gap Dual Plane Intake Manifold, Black Finish (AF6210-2001)](http://fastlanespares.co.nz/cdn/shop/products/AF6210-2001_1200x667.jpg?v=1688020660)
Aeroflow SB Ford 289-302 Windsor Air Gap Dual Plane Intake Manifold, Black Finish (AF6210-2001)
1500 - 6500 RPM, Square Bore Carburettor Pad, Non-EGRAF6210-2001 - SBF AIR GAP INTAKE MANIFOLD
1500 - 6500 RPM, Square Bore Carburettor Pad, Non-EGR
Part Number: AF6210-2001
Get the maximum power from your carburetted engine with this Air Gap Small Block Ford carburetted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket square-bore carburettors with either manual or electric choke options available on today’s market. Specifically designed for 289-302 cubic inch small-block Ford engines operating in the 1500 to 6500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems.
• Fits Small Block Ford 289 and 302 Windsor Engines.
• Dual Plane Configuration.
• RPM operating range - 1500 to 6500.
• Black Finish.
Specifications: Manifold Specifications
- Square bore carburettor pad
- Overall height (Carb pad to bottom of manifold) is 154mm (
Ensure to Check Bonnet Clearance
)
- Port Size: 1.10" x 1.88"
- Intake manifold gasket, Fel Pro 1250
- 5/16-18" carburettor studs (x4)
- 5/16-18" mounting holes (x2)
- 3/8-16" accessory mounting holes (x1)
- 1/4-20" accessory mounting holes (x1)
- 1/2" NPT ports (x1)
- 3/8" NPT ports (x4)
