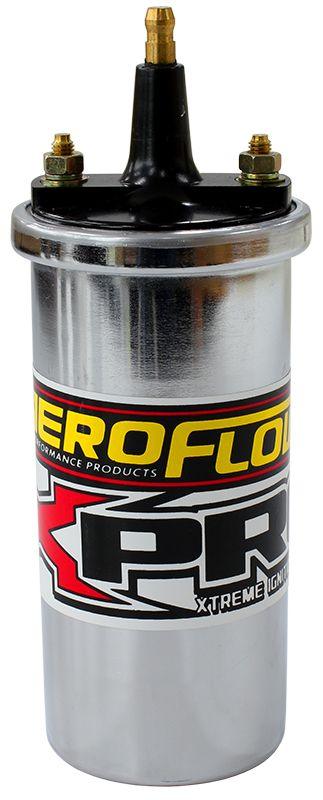

Aeroflow Round Canister Male Terminal Type Ignition Coil (AF4820-8223)

Chrome Finish
SKU: AF4820-8223
Original price $113.20 - Original price $113.20
Original price
$113.20
$113.20 - $113.20
Current price $113.20
+ GST
Availability:
Available, allow for 2-10 days shipping

AF4820-8223 - CHROME ROUND MALE COIL

Chrome Finish

Part Number: AF4820-8223

Excellent High performance replacement for import and local vehicles with a canister type oil filled ignition coil. Re-Engineered windings for even faster throttle response and higher RPM power. Aeroflow's XPRO Coil is effective to over 10,000 RPM. Available in male terminal type and female socket types in black or chrome finishes. Mounting options available separately are AF42-1250 (stainless Steel coil mount) or AF64-2900 (polished billet alloy) or AF64-2900BLK (black anodised billet alloy).
These coils must be mounted in an upright position.

Specifications: Specifications:
Primary Resistance: 1.2 ohms
Secondary Resistance: 5.6k ohms
Frequency: 236hz
Maximum Voltage: 45,000 volts
Dimensions :
Diameter: 54.4mm (2-9/64")
Overall Height: 153mm (6")
