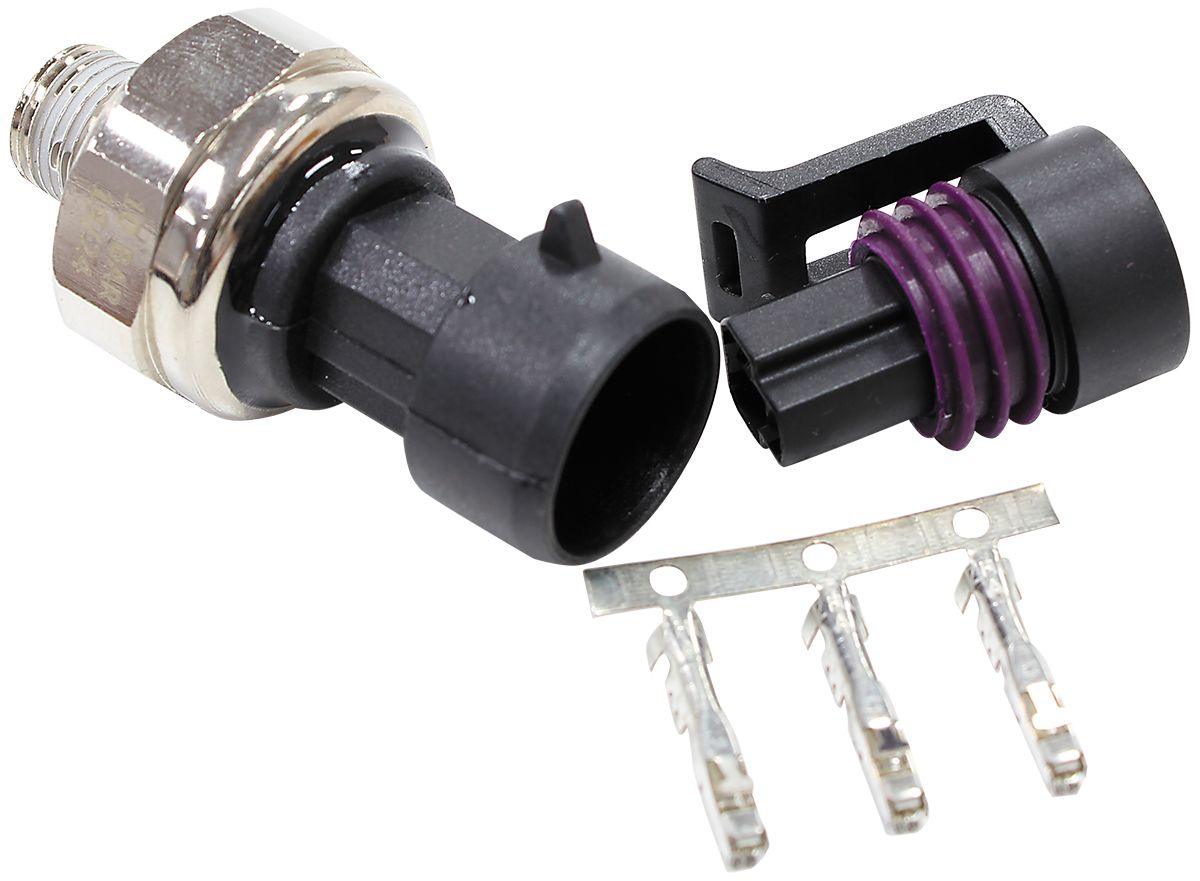

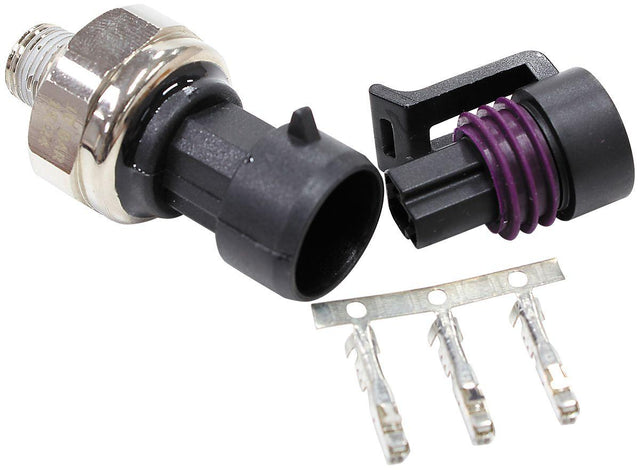

Aeroflow Pressure Sensor (Transducer) 150psi (10 Bar) for Oil, Fuel or Boost (AF49-1551)

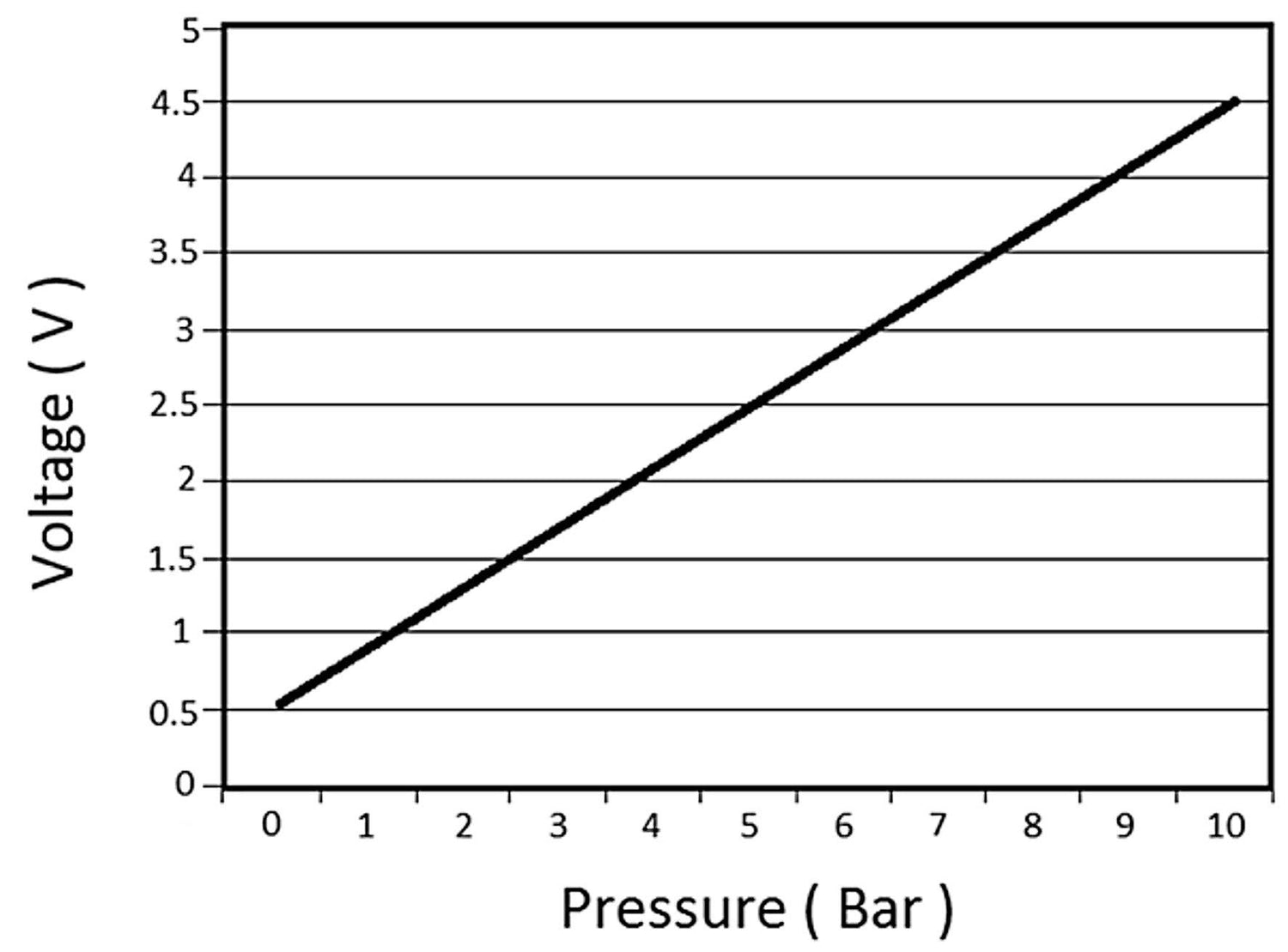

The Aeroflow Performance pressure sensor (transducer) is a 150psi (10 Bar) sensor with linear voltage output. Commonly used as an oil pressure sensor or fuel pressure sensor it also works with automotive gauges and data-loggers (as a pressure sender / transducer sensor) onpopular aftermarket brands andEcu’s. Can also be used forWastegate Pressure and in CO2 Systems making it a very versatile sensor. This sensoris fully calibrated for high accuracy and designed for highstability across the temperature range. It includesthe plug and pins to easily wire into any application (plug / pins also sold separately AF49-1520).

• This sensor has a 1/8" NPT thread
• The sensor bodymaterial is Brass
• Overall length is 44.30mm
• Operating pressure range is 0 to 10 bar (150 psi)
• Supply voltage range is 4.65 to 5.35 volts (working voltage is 5 volts)
• Response working time is 10 milliseconds
