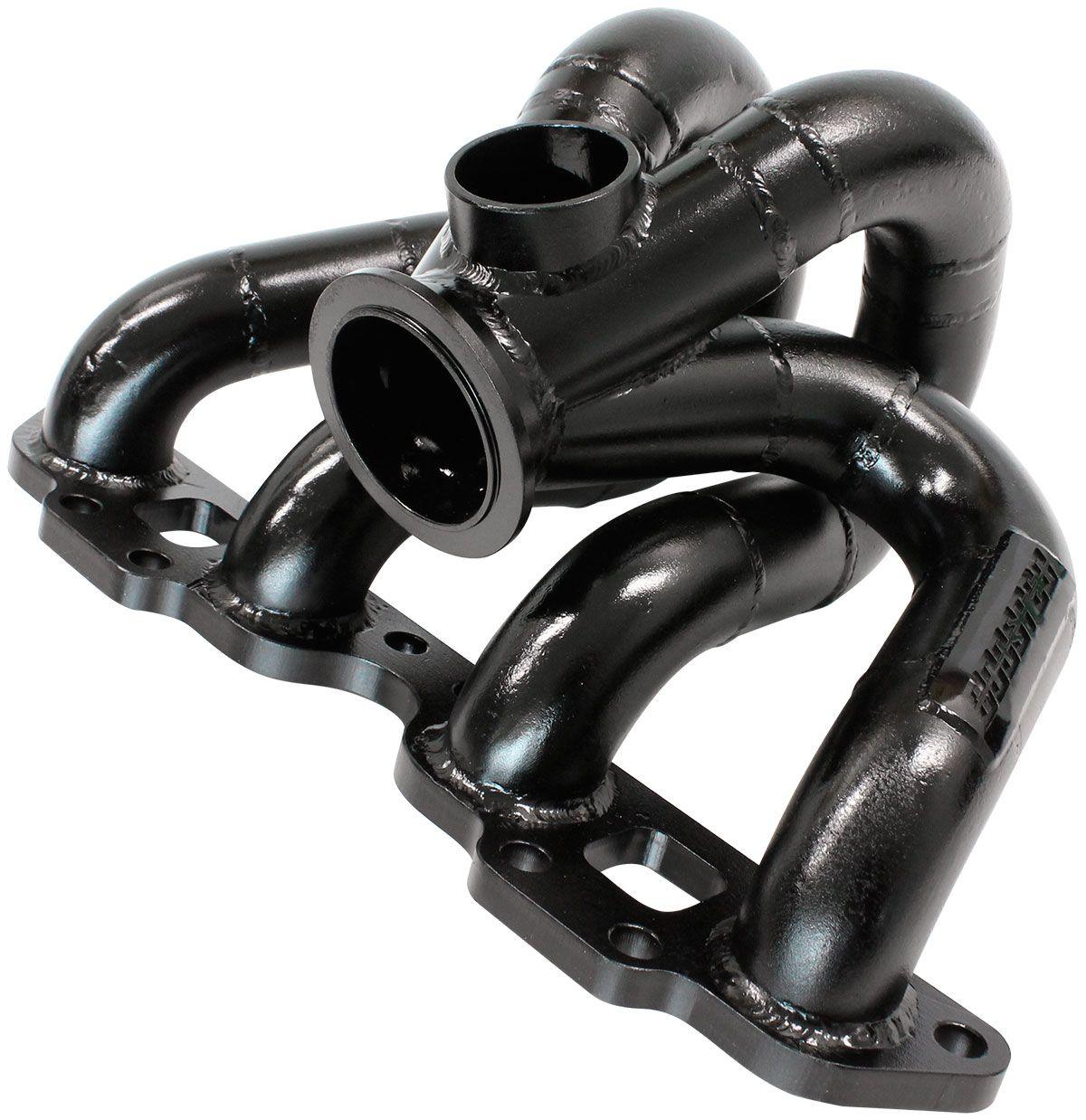

Aeroflow Nissan SR20 V-Band High Mount Turbo Manifold (AF8205-7000)

Suits Boosted AF8080-1016 V-Band Flange, Fits Boosted 4849 up to 6862, fits 45mm External Wastegate
SKU: AF8205-7000
Original price $1,239.20 - Original price $1,239.20
Original price
$1,239.20
$1,239.20 - $1,239.20
Current price $1,239.20
+ GST
Availability:
Low stock, please contact before purchasing

AF8205-7000 - NISSAN SR20 GT30 VBAND MANIFOL

Suits Boosted AF8080-1016 V-Band Flange, Fits Boosted 4849 up to 6862, fits 45mm External Wastegate

Part Number: AF8205-7000

Model
- Nissan S13, S14, S15 & 180SX SR20 (rear wheel drive) turbo steampipe manifold.
Turbo Collector Flange
- V-Band (Boosted AF8080-1016 Flange).
Mounting Location
- High Mount, Will Clear ABS unit.
Turbocharger Style
- GT30/GT35 style (Boosted 4849 up to Boosted 6862 in V-Band flange).
Wastegate Flange
- Single 45mm external wastegate.
Aeroflow Performance steampipe turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channelled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge together at a point in the middle, pointing straight into the turbine. No pipes enter across each other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.
Aeroflow turbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent steam pipe with CNC Machined header and turbo flanges. Each flange is milled after welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, and the position the wastegate sits in.
Each manifold is finished with a black enamel coat for shipping purposes only. We do recommend to have this manifold either wrapped with exhaust wrap or ceramic coated to ensure protection for external accessories and reduce under bonnet temperatures.
The Aeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
