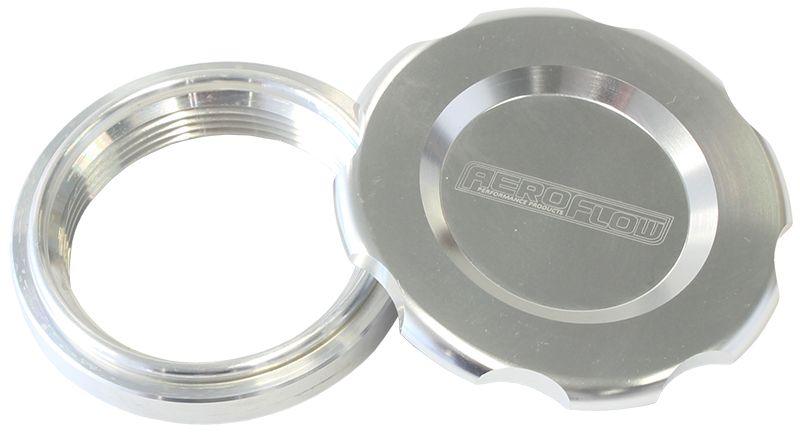

Aeroflow Low Profile Billet Aluminium Filler Cap & Bung (AF465-24S)

AF465-24S - 1.5" WELD BUNG AND SILVER CAP

1-1/2" Female weld-on bung, includes Buna N & EPR O-rings. Silver Cap

Part Number: AF465-24S

Aeroflow’s lightweight, non-vented filler caps feature a low-profile aluminium weld-on which make them perfect for tight clearance applications. These caps are manufactured from 6061-T6 aluminium and are supplied with a BUNA-N (great for a wide range of fuels and oils) and EPR O-Ring seals (for use with Nitromethane fuels). Available 1-1/2”, 2”, 2-1/2” and 3” diameters in blue, red, Black, gold, purple, raw, polished and silver anodized finishes.

• Overall Height - 20mm (13/16”).

• Replacement O-Rings - AF59-465-24

Specifications: Bore - 38mm (1-1/2")
Neck Outside Diameter - 46mm (1-13/16")
Cap Internal Diameter - 44mm (1-47/64")
Overall Height - 20mm
Thread - 1-5/8"-12 UNC
Replacement O-Ring Kit - AF59-465-24
