Aeroflow GM LS Universal Cross Over Turbo Manifold (AF8200-1000)

Suits Single and Twin Turbo GM LS Turbo Manifolds
SKU: AF8200-1000
Original price $857.80 - Original price $857.80
Original price
$857.80
$857.80 - $857.80
Current price $857.80
+ GST
Availability:
Available, allow for 2-10 days shipping

AF8200-1000 - GM LS CROSS OVER PIPE MANIFOLD

Suits Single and Twin Turbo GM LS Turbo Manifolds

Part Number: AF8200-1000

GM LS universal cross over steampipe manifold.
Can be used to fit single turbo manifolds AF8200-1005, AF8200-1010 and twin turbo manifolds AF8200-2000.

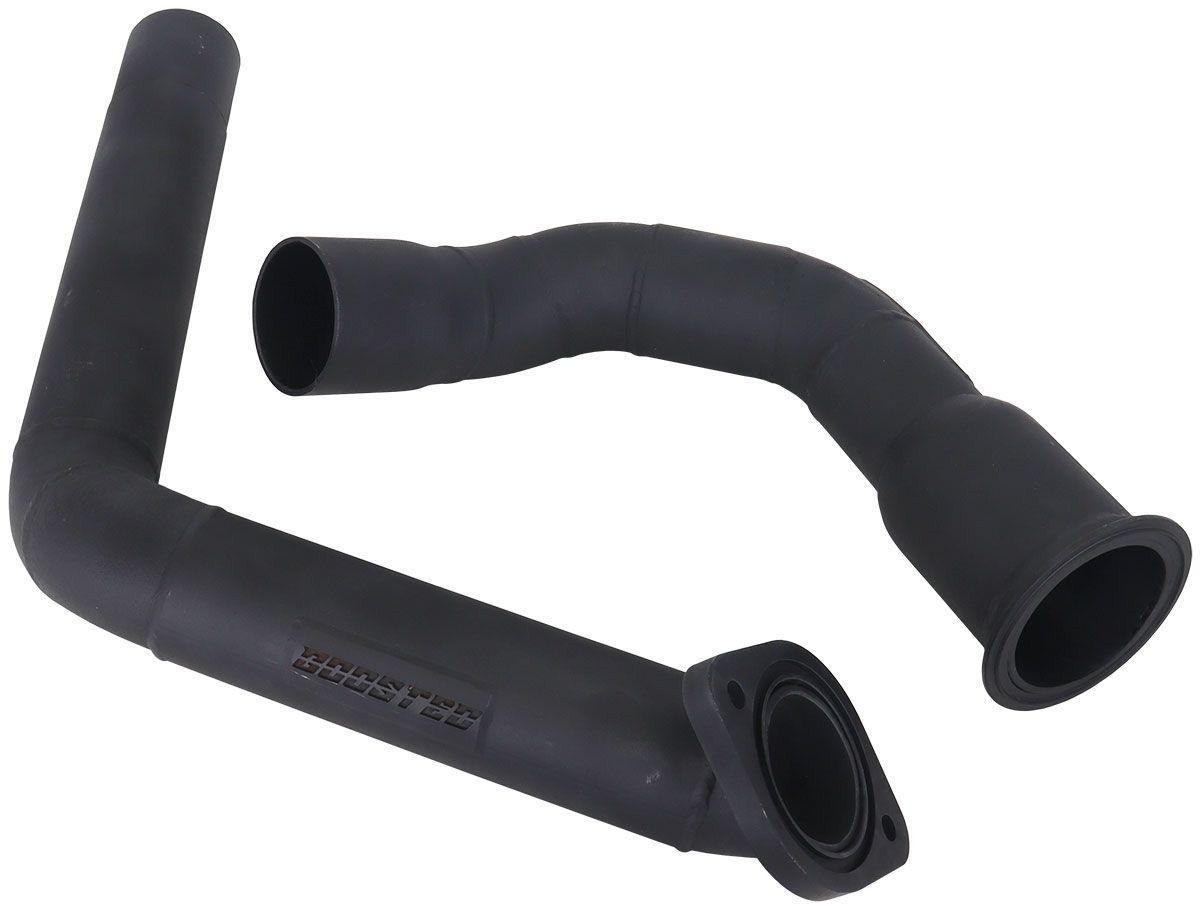

This cross over pipe is supplied in two pieces with the middle slip joint that is designed to be welded in the correct length position once fitted to vehicle. This universal design will allow the user to custom fit to suit each application.
Aeroflow Performance steampipe turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channeled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge together at a point in the middle, pointing straight into the turbine. No pipes enter across each other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.
Aeroflow Performance steampipe turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channelled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge together at a point in the middle, pointing straight into the turbine. No pipes enter across each other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.
Aeroflow turbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent steam pipe with CNC Machined header and turbo flanges. Each flange is milled after welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, and the position the wastegate sits in.
Each manifold is finished with a black enamel coat for shipping purposes only. We do recommend to have this manifold either wrapped with exhaust wrap or ceramic coated to ensure protection for external accessories and reduce under bonnet temperatures.
The Aeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
