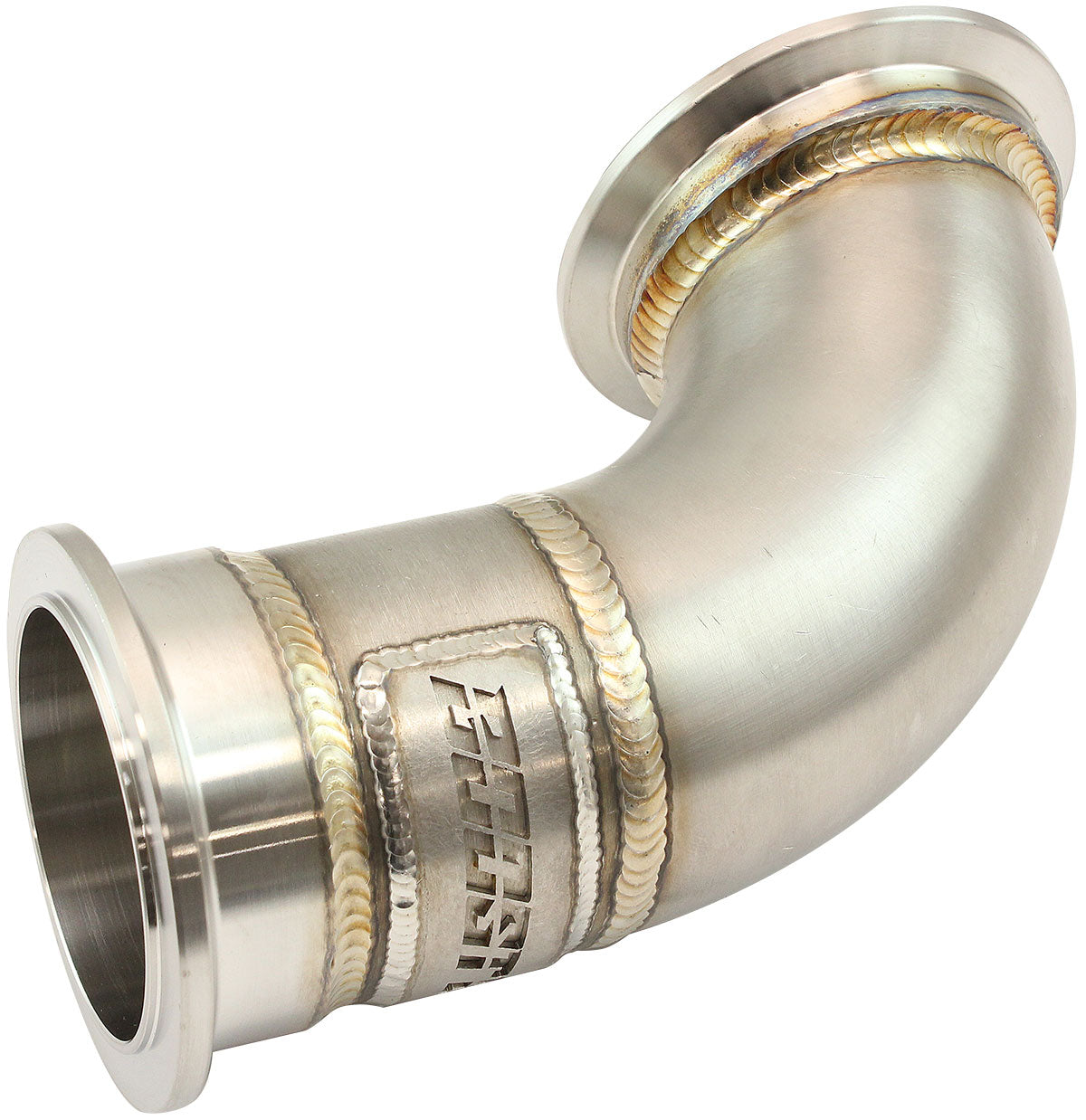

Aeroflow GM LS Twin Turbo Short Turn Up Adapter Stainless Steel Manifold - AF8400-2011

GM LS twin turbo short turn up adapter stainless steel manifold.
Sold Individually.
2.5" V-Band welded on one end and AF8080-1016 flange welded on the other end, this will suit Boosted 4849 up to 6862 Turbochargers.

Aeroflow turbo turn up adapters are finished to the highest of standards, constructed from thick wall 3mm stainless steel with CNC Machined header and turbo flanges. Each flange is milled after welding to ensure precise surface finish.

Specifically designed to suit the Aeroflow Performance GM LS twin Turbo exhaust manifolds AF8400-2000. They will allow the user to mount their turbochargers in line with the outlets of these turbo manifolds. Alternatively, they can be rotated to any position or modified to suit your application. They feature V-bands on both sides of the turn up adapter. 2.5” V-Band welded on one end and AF8080-1016 flange welded on the other end, this will suit Boosted 4849 up to 6862 Turbochargers. These short turn ups have a offset of 80mm compared to the longer turn up (AF8400-2012) which has a offset of 110mm.

We do recommend to have these turn ups either wrapped with exhaust wrap or ceramic coated to ensure protection for external accessories and reduce under bonnet temperatures.
