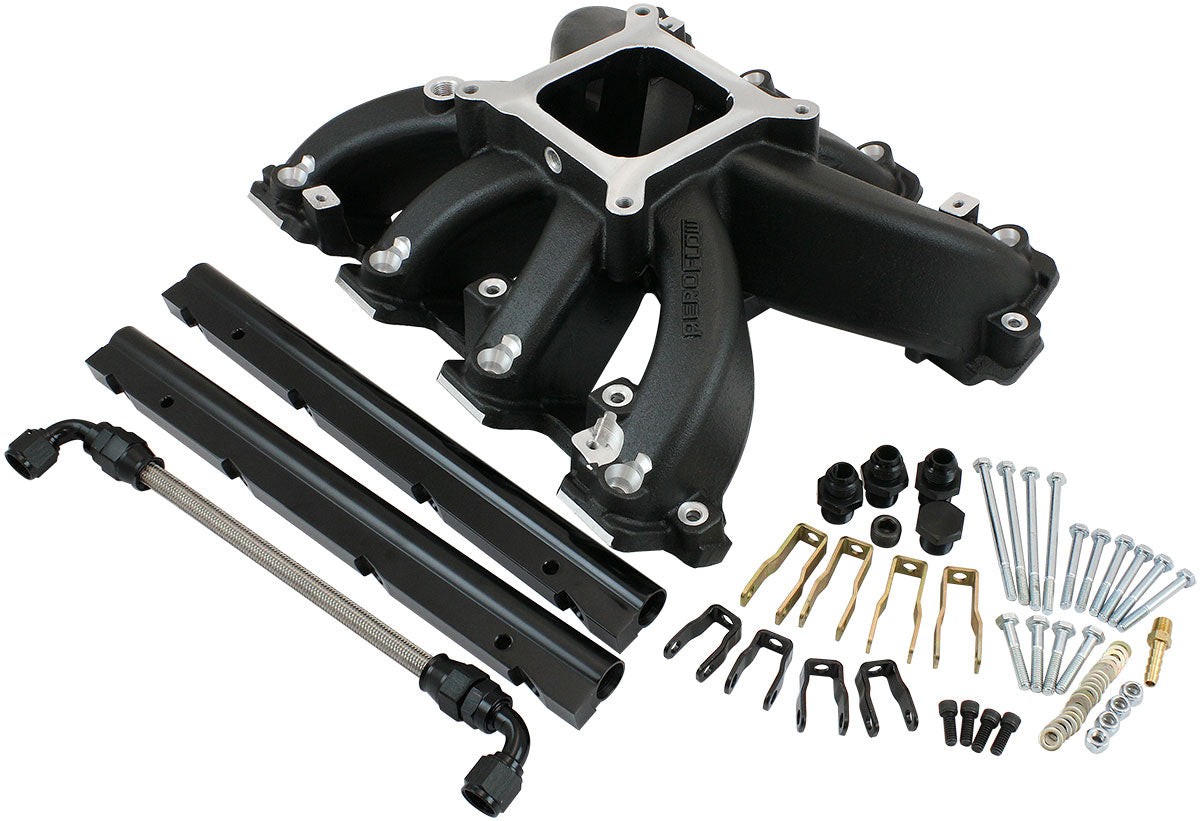

Aeroflow GM LS Rectangle Port Carburettor Hi Rise Race Single Plane EFI Intake Manifold, Black Finish - AF6250-6001
4 Barrel 4150 Square Bore Carburettor Pad
Aeroflow GM LS Rectangle Port Carburettor Hi Rise Race Single Plane EFI Intake Manifold, Black Finish - AF6250-6001
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
GM LS CARBY INTAKE MANIFOLD
4 Barrel 4150 Square Bore Carburettor Pad
Part Number: AF6250-6001
Convert your GM LS engine to allow a 4150 style throttle body to sit on top of your engine for retrofit applications with this Aeroflow Performance Hi Rise Race cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 rectangle port cylinder heads.
• Fits GM LS3 Rectangle Port Engines.
• EFI Applications.
• This is designed for GM LS Engines with EFI only. Use AF6240-6005 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
• Requires the use of 14mm short (33.60mm) fuel injectors (Sold Separately).
• Fits GM LS3 Engines.
• Single Plane Configuration.
• High Rise Intake Manifold.
• RPM operating range - 2500 to 7000.
• Black Finish.
•- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
Specifications:
Manifold Specifications
- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 172mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.08" x 2.45"
- Intake manifold Flat style gasket (must use Fel Pro 1222-2 or 1222-3).
- 5/16-18" carburettor studs (x4)
- 4 x M6 x 1.00mm Mounting Holes for fuel rails.
Intake Manifold Includes
- 10 x M6 x 1.00mm Hex Screws (50mm UHL)
- 10 x M6 Flat Washers
Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hex port plug
- 4 x mounting brackets
- 6 xM6 x 1.00mm socket cap screws (25mm UHL)
- 6 x M6 x 1.00mm hex screws (12mm UHL)
- 4 x M6 nuts
Important Information:
• Fits GM LS3 Rectangle Port Engines.
• EFI Applications.
• This is designed for GM LS Engines with EFI only. Use AF6240-6005 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
• Requires the use of 14mm short(33.60mm) fuel injectors (Sold Separately).
•- Intake manifold Flat style gasket (must use Fel Pro 1222-2 or 1222-3).
