Aeroflow GM LS Fuel Rail Kit for Modular Intake Manifolds - AF6999-6005
Suits Cathedral Port Hi Rise Modular Intake Manifolds
Aeroflow GM LS Fuel Rail Kit for Modular Intake Manifolds - AF6999-6005 is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
GM LS MODULAR FUEL RAIL KIT
Suits Cathedral Port Hi Rise Modular Intake Manifolds
Part Number: AF6999-6005
Give your GM LS intake manifold the capability to flow some serious flow to feed even the most fuel hungry applications. These GM LS fuel rails from Aeroflow Performance are specifically designed for use with the GM LS cathedral port high rise modular intake manifolds. It will not suit the factory GM LS intake manifolds.
Each fuel rail is precision CNC machined from extruded 6063 aluminium with a large internal diameter bore with -8ORB ports on each end and anodized black.
Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.
Specifications:
Requires the use of 14mm short (33.60mm) fuel injectors.

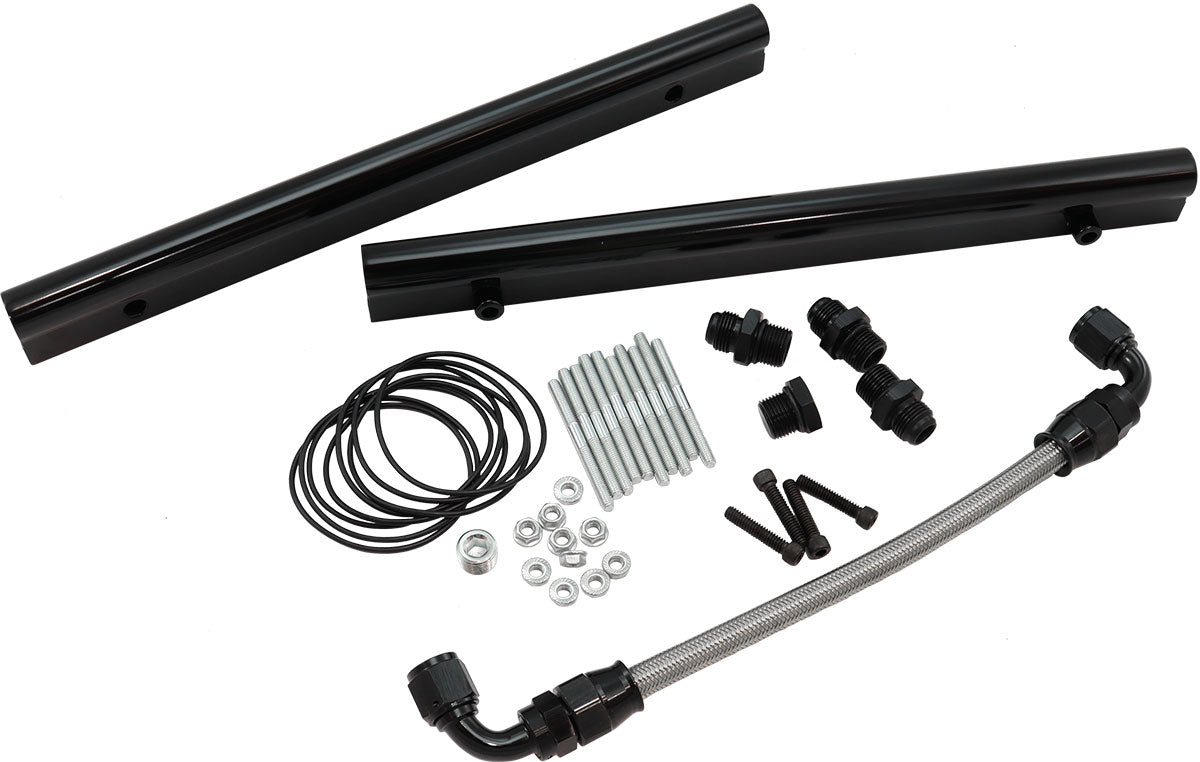

Fuel Rail Kit includes
2 x Two Fuel Rails (-8ORB),
1 x -8AN cross over 200 series braided PTFE line and two 90 degree non full flow fittings
3 x -8an to -8ORB fittings
1 x -8ORB hex port plug
4 x mounting brackets
4 x 5/16-18" hex screws (38mm UHL)
4 x 5/16-18" allen key screws (19mm UHL)
Important Information:
This Fuel Rail kit will not suit Factory GM LS Intake Manifolds. This fuel rail kit can only be used with Aeroflow Performance Modular Intake Manifolds and EFI Bases
