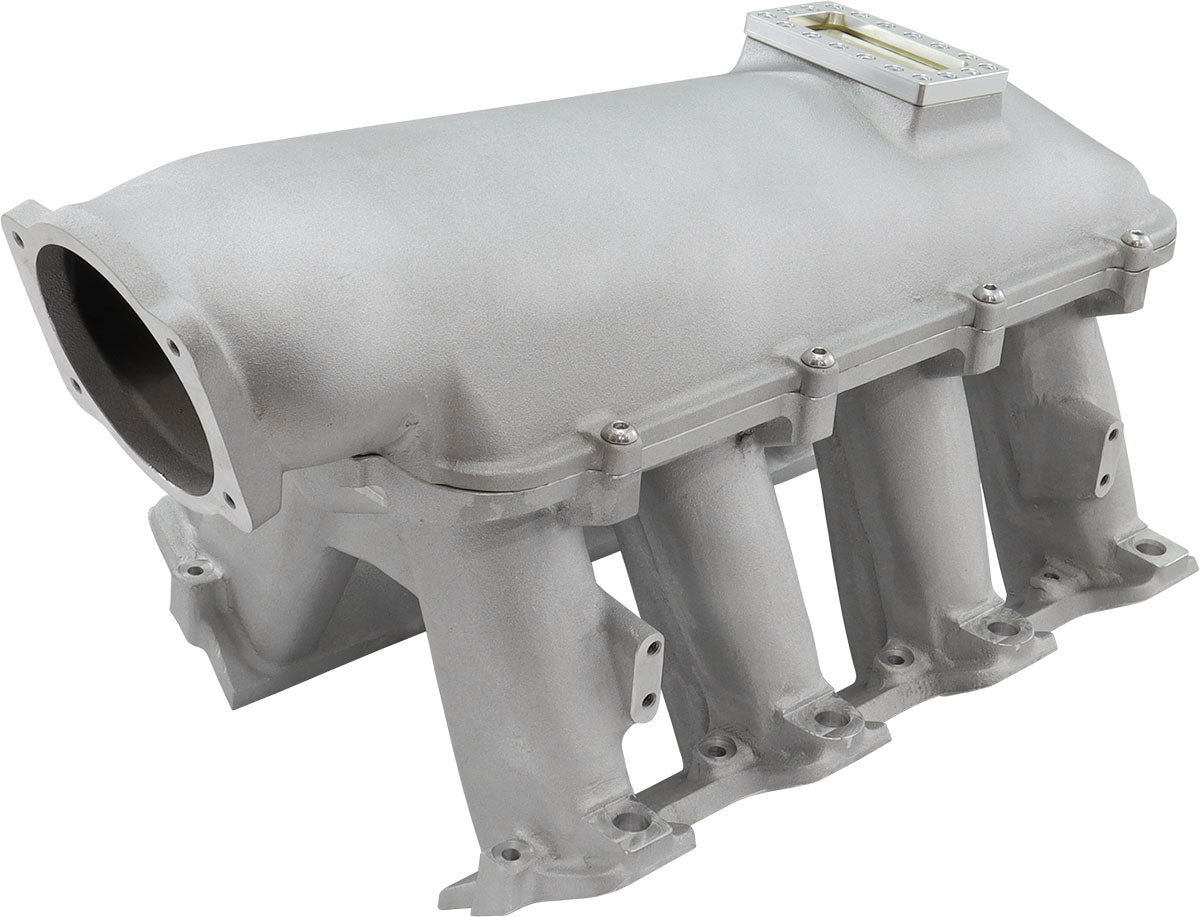

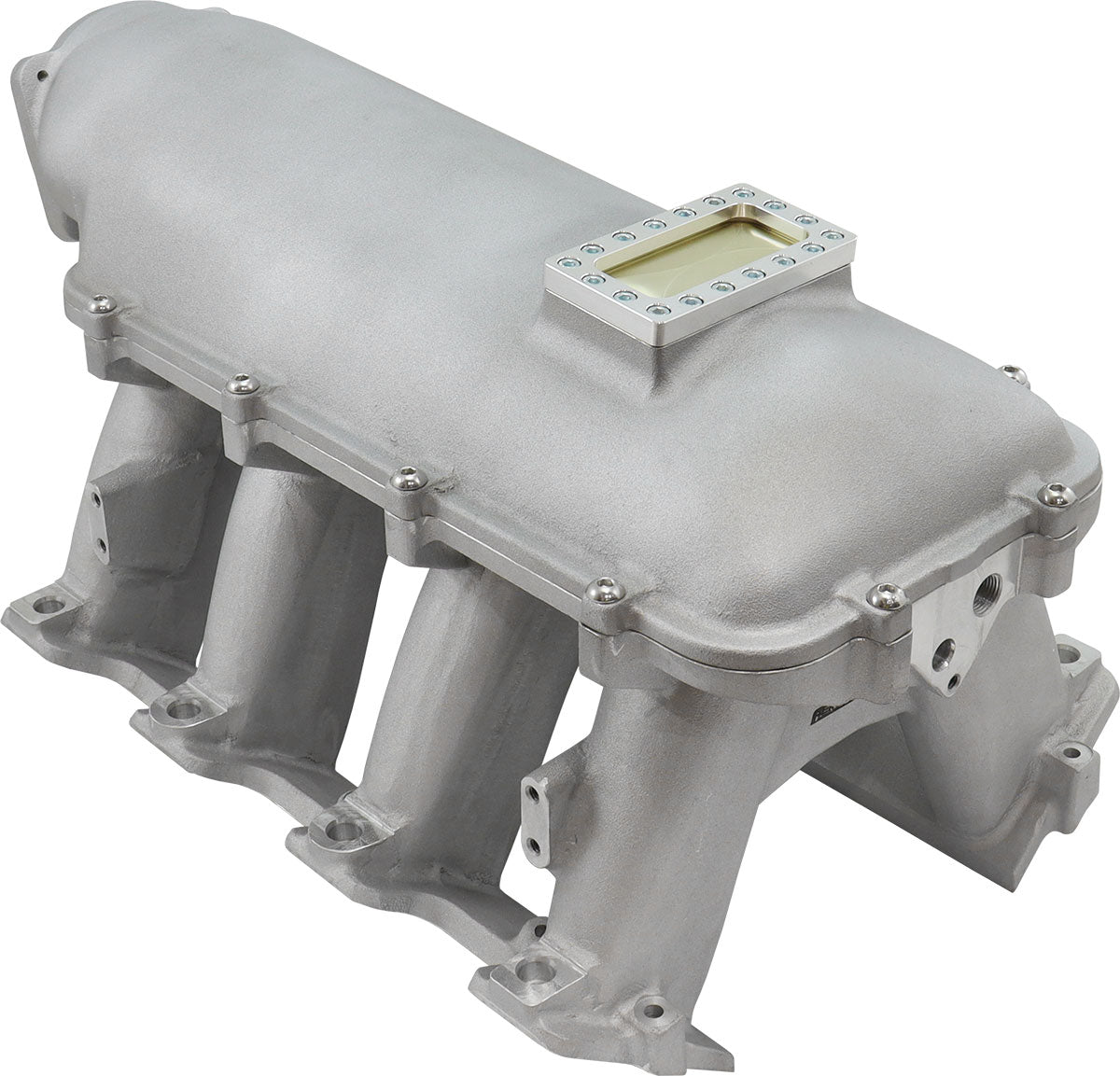

Aeroflow GM LS Cathedral Port Hi Rise EFI Modular Intake Manifold, Natural Cast Finish - AF6063-5001

The Aeroflow Performance GM LS modular intake manifolds allow the end user to customize their intake manifold depending on each individual application. This cast aluminium manifold performs well and offers an extremely good value for a performance intake manifold for the very popular GM LS engine family.

Aeroflow offer the hi rise manifold where bonnet modifications may be required for fitment. The long runner design allows for high rpm horsepower with big cube engines for a serious drag racer.

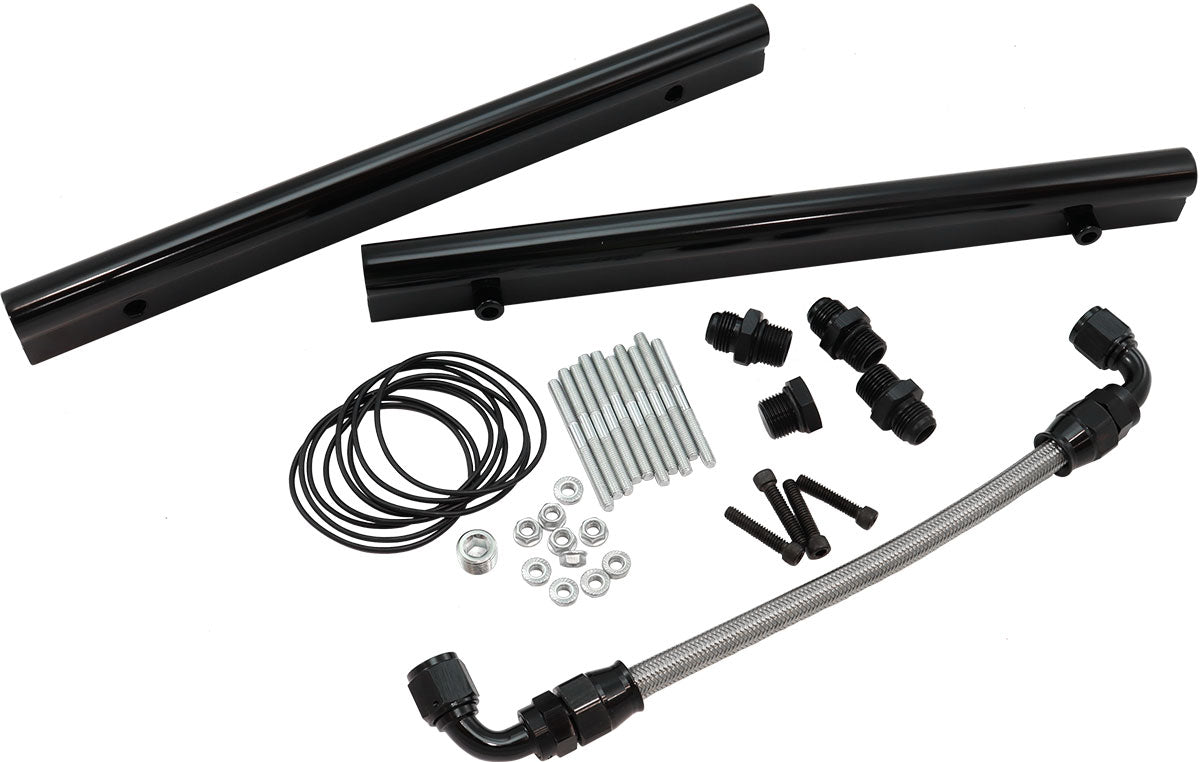

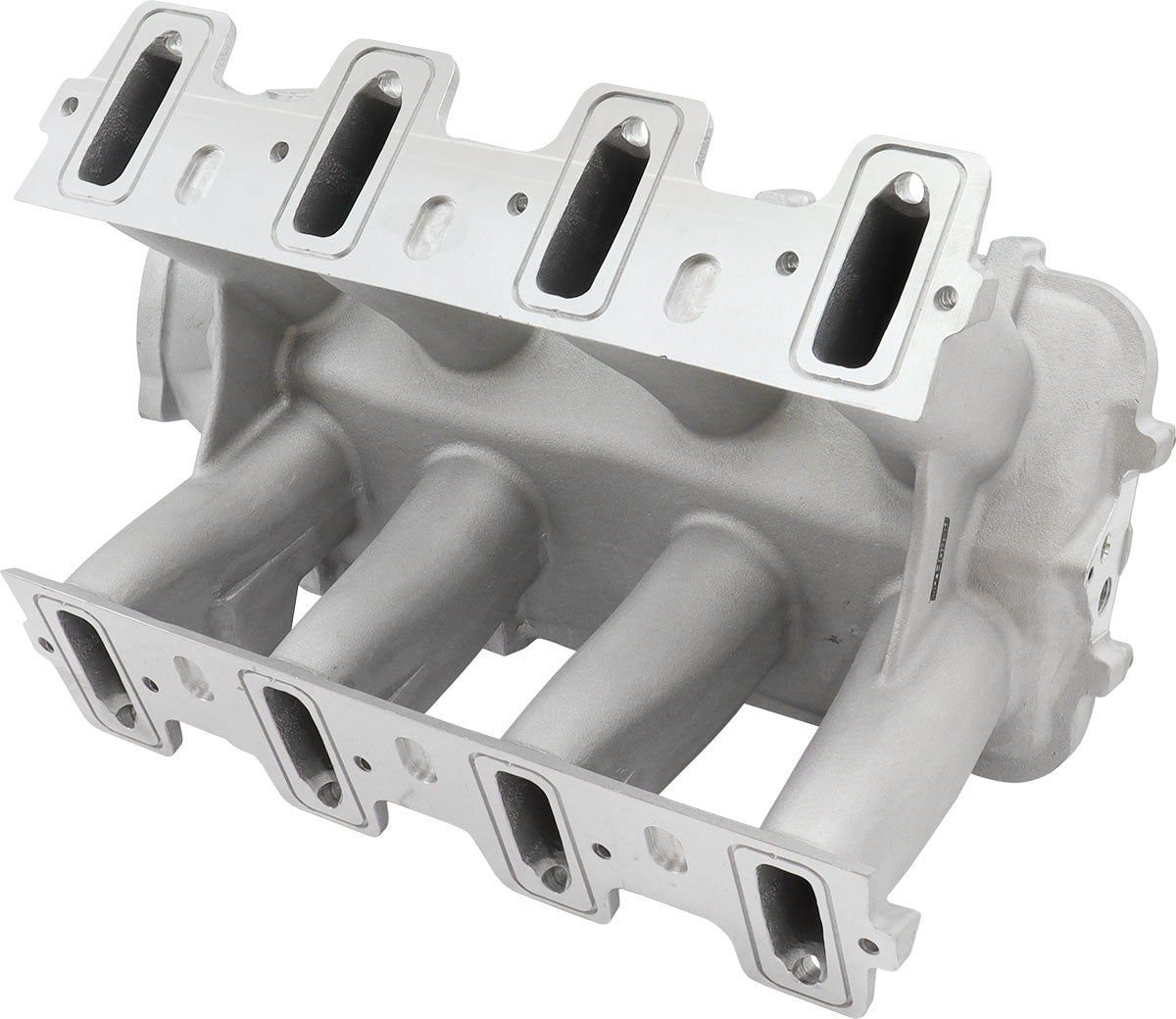

The modular design is made up of the bottom base which bolts to the cylinder heads and the top plate which bolts to the base with an O-ring to seal both components. Each base will fit either a cathedral port or rectangle port cylinder heads. With a choice of NON-EFI with no injector bosses or EFI with 16 injector bosses complete with fuel rails and cross over, designed to suit 14mm short length (33mm) and 14mm full length (60.6mm) fuel injectors. All bases have a provision for a LS style map sensor on the rear along with 1 x 3/8" NPT and 1 x 1/8" NPT ports with bungs.

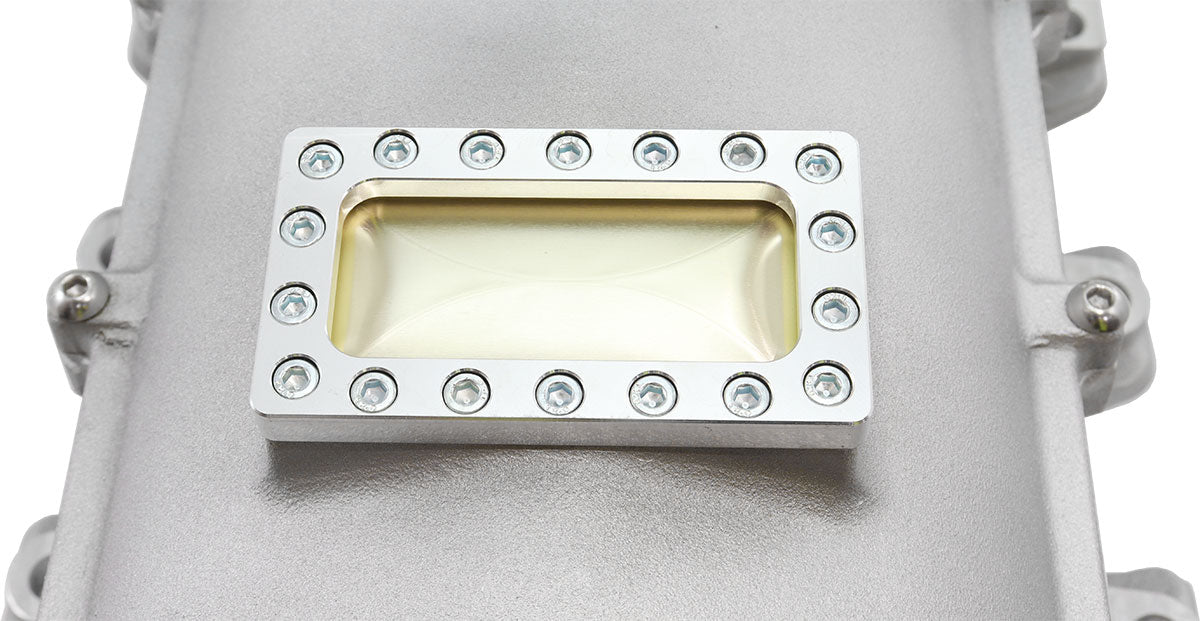

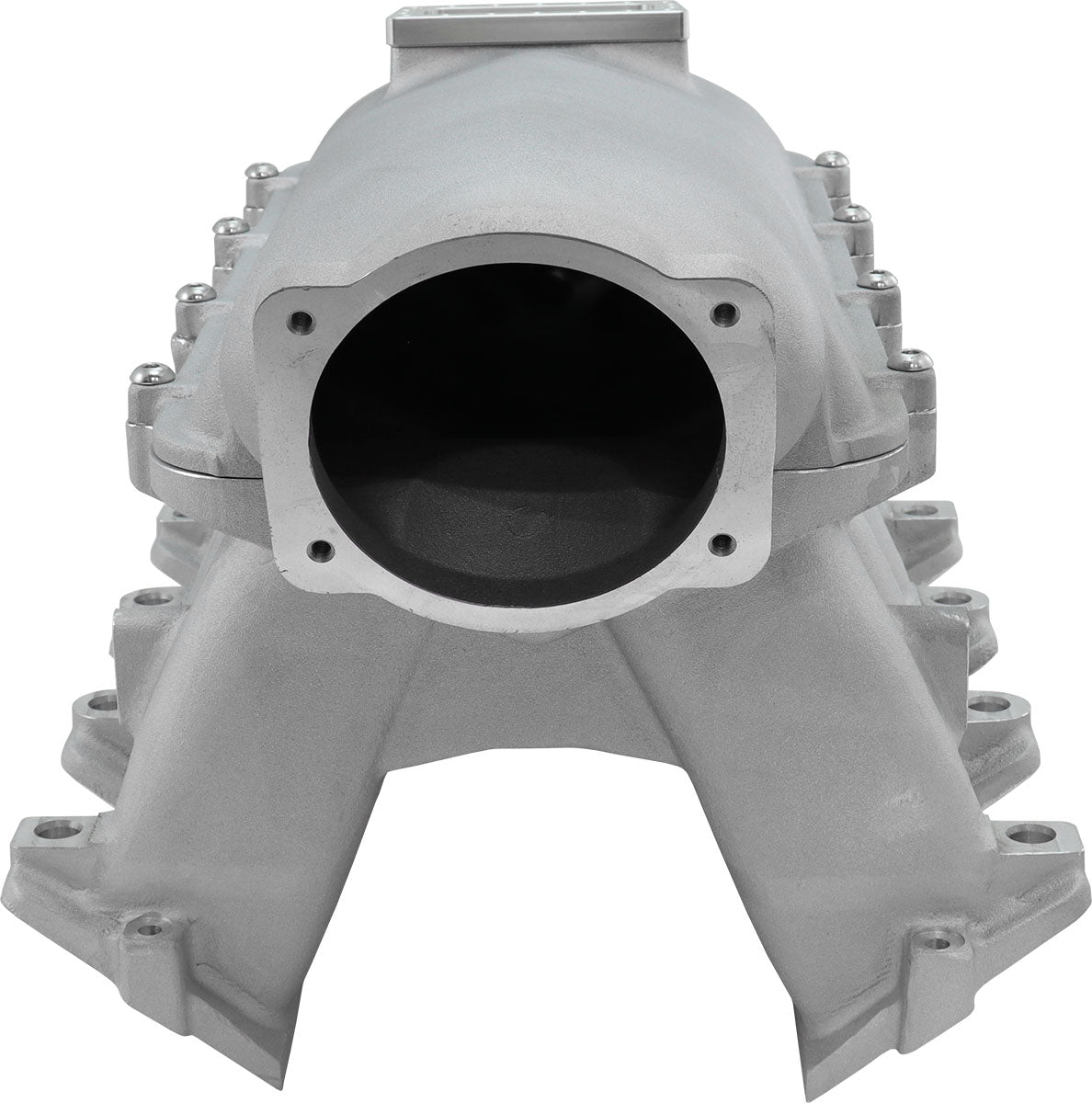

The top plate features a short throttle body snout to accept a 102mm 4 bolt GM LS throttle body. A burst panel is welded on the top plate which releases pressure (200psi) in the event of a backfire to save your intake manifold.

Each intake manifold can be purchased complete or as individual items. Available in either natural cast or black power coated finishes.
