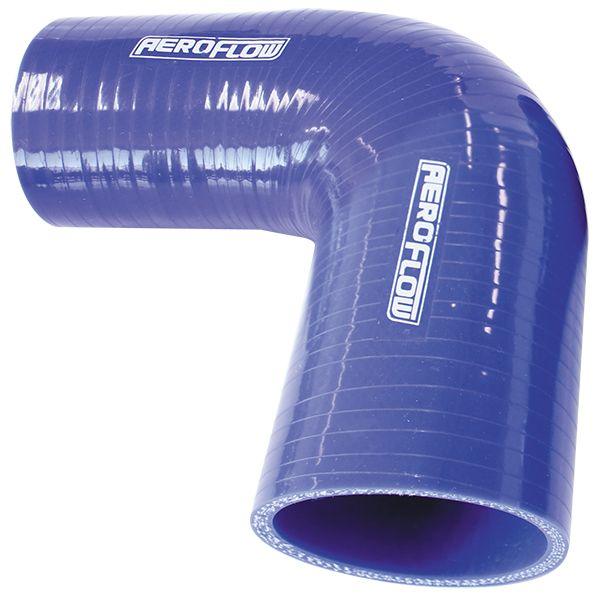

Aeroflow Gloss Blue 90° Silicone Reducer / Expander Hose 1-3/4" (44mm) to 1-1/2" (38mm) I.D (AF9003-175-150)
5mm Wall Thickness, 127mm LegSilicone Hose Reducer 90 Deg;
5mm Wall Thickness, 127mm Leg
Part Number: AF9003-175-150
Aeroflow designs and manufactures premium quality silicone hose for the Performance Automotive Industry, Transport Industry and Industrial applications. Whether it's silicone heater hose, vacuum or high temperature silicone turbo hose, Aeroflow has the right products for your demanding applications.
- 5mm wall thickness- 127mm (5") Length
- Working temperature -60 to +180° C (-75 to +350° F)
- Excellent ply adhesion from the inner core to the outer layers
- Bright gloss Blue finish
- Not recommended for use with oil and fuel
- Weather resistance to harsh sunlight, dry conditions and rain water
Note: Leg sizes are approximate and may vary.
Specifications: Larger Internal Diameter: 45mm
Larger Outside Diameter: 54mm
Smaller Internal Diameter: 38mm
Smaller Outside Diameter: 47mm
Leg Length: 150mm
Recommended Hose Clamp (Guide Only):
Worm Drive Clamp: AF23-3357 (Large Side) and AF23-3357 (Small Side)
Constant Tension Clamp: AF28-3956/AF28-3956BLK (Large Side) and AF28-3956/AF28-3956BLK (Small Side)
T-Bolt Clamp: AF24-5255 (Large Side)and AF24-4447 (Small Side)
