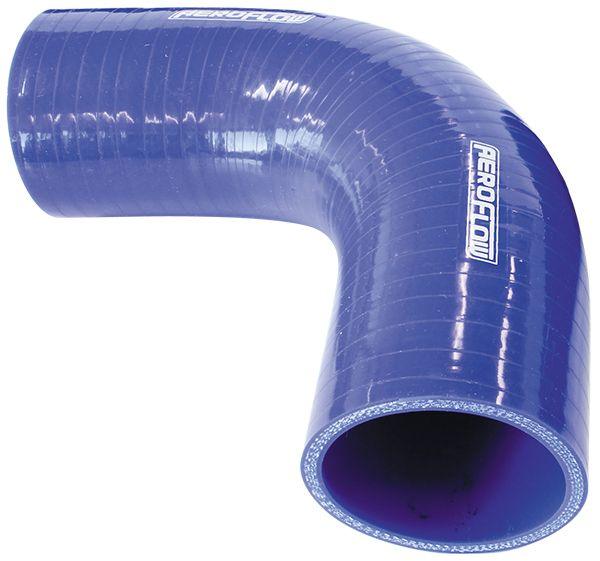

Aeroflow Gloss Blue 90° Silicone Elbow Hose 2-1/4" (57mm) I.D (AF9003-225)
4-Ply, 5.3mm Wall Thickness, 150mm Leg
SKU: AF9003-225
Original price
$54.70
-
Original price
$54.70
Original price
$54.70
$54.70
-
$54.70
Current price
$54.70
+ GST
Availability:
⌛ Available — allow 2–10 days shipping
Silicone Hose 90 Deg; Blue I.D
4-Ply, 5.3mm Wall Thickness, 150mm Leg
Part Number: AF9003-225
Aeroflow designs and manufactures premium quality silicone hose for the Performance Automotive Industry, Transport Industry and Industrial applications. Whether it's silicone heater hose, vacuum or high temperature silicone turbo hose, Aeroflow has the right products for your demanding applications.
- 4 Ply hose with a wall thickness of 5.3mm (13/64")- 145mm (5-45/64") Leg
- Working temperature -60 to +180° C (-75 to +350° F)
- Excellent ply adhesion from the inner core to the outer layers
- Bright gloss Blue finish
- Not recommended for use with oil and fuel
- Weather resistance to harsh sunlight, dry conditions and rain water
Note: Leg sizes are approximate and may vary.
Specifications: Internal Diameter: 57mm
Outside Diameter: 67.6mm
Leg Length: 150mm
Recommended Hose Clamp (Guide Only):
Worm Drive Clamp: AF23-4670
Constant Tension Clamp: AF28-5875 / AF28-5875BLK
T-Bolt Clamp: AF24-6873
