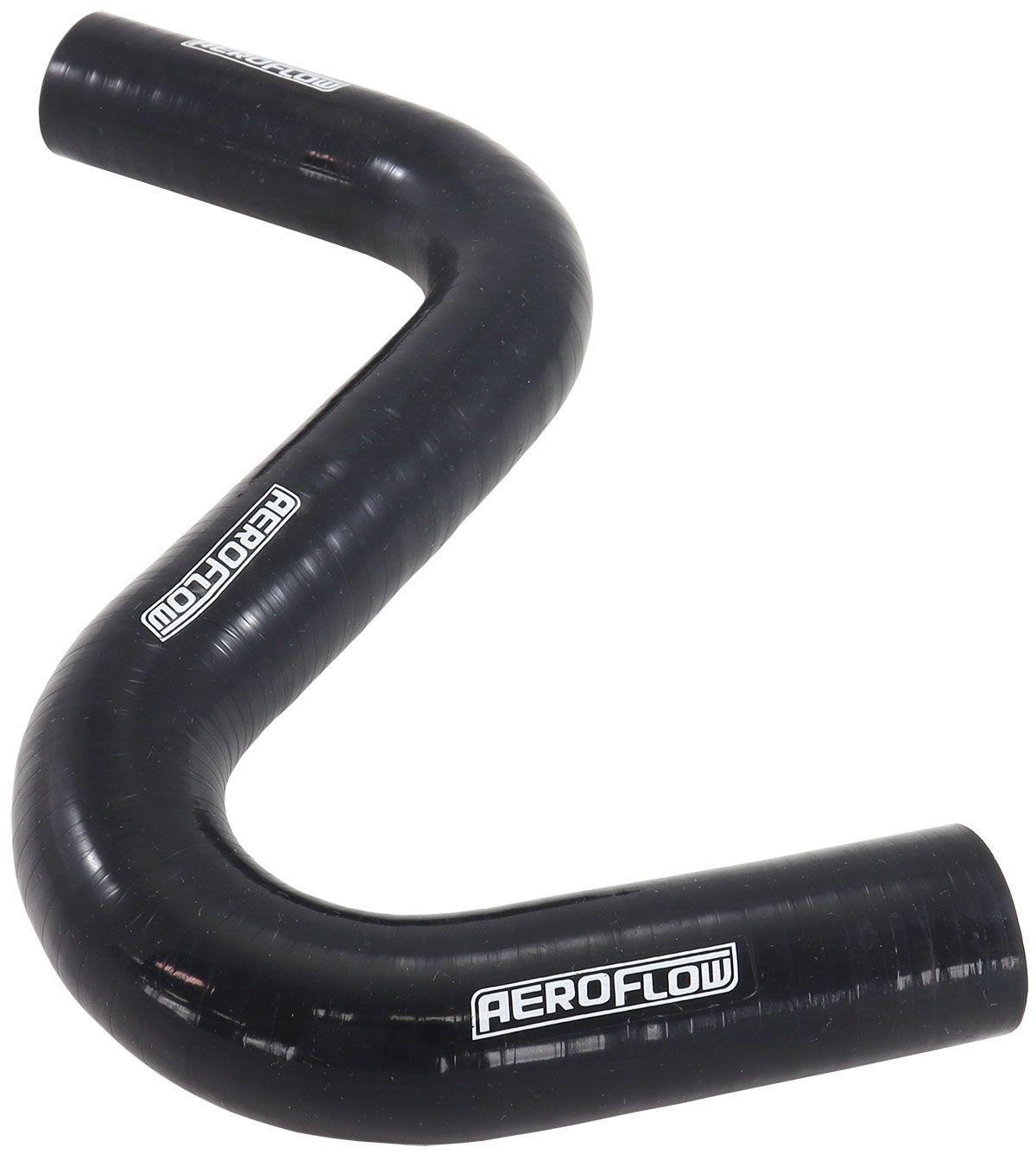

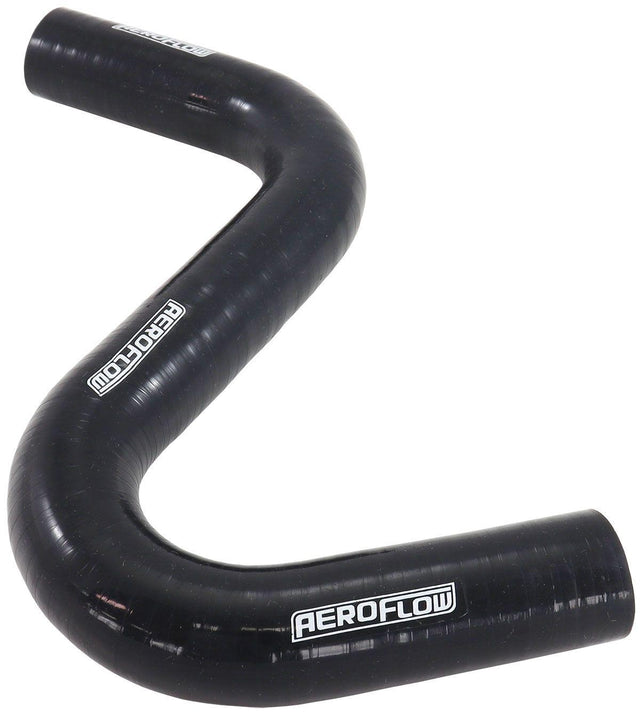

Aeroflow Gloss Black Silicone Z Bend Heater Hose 1-1/4" (32mm) I.D (AF9240-125)135 Degree Bend and 90 Degree Bend
135 Degree Bend and 90 Degree Bend
Part Number: AF9240-125
Aeroflow Universal Z Bend Silicone Hose are can be configured into the various forms demanded by today's complicated and cramped engine bays. They can also be used in many industrial applications. These flexible hoses feature a 90-degree bend and a 135-degree bend ensuring multi-fit applications.
- Constructed from a 3 Ply Nomex hose
- Excellent ply adhesion from the inner core to the outer layers.
- Bright gloss finish
- Not recommended for use with oil and fuel.
- Weather resistance to: harsh sunlight, dry conditions and rain water.
- Working temperature -60 to +180 Celsius (-75 to +350 Fahrenheit).
Specifications: Internal Diameter - 1" (32mm)
Wall Thickness - 5mm
Outside Diameter - 42mm
90 Degree Bend Leg Length - 160mm
Straight Leg Length - 200mm
135 Degree Bend Leg Length - 130mm
Suits Worm Drive Clamp - AF23-2751
Suits Constant Tension Clamp - AF28-3956 / AF28-3956BLK
