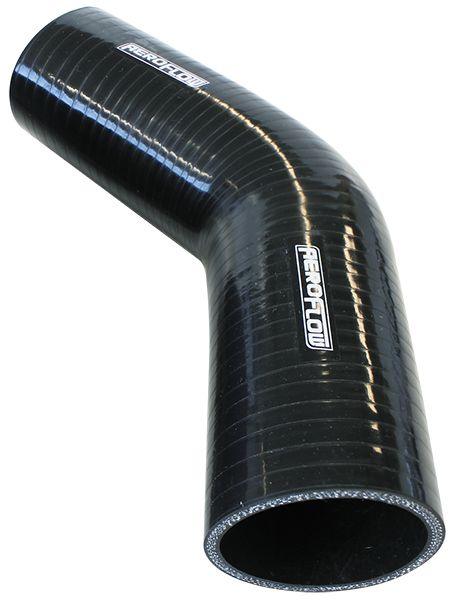

Aeroflow Gloss Black 45° Silicone Elbow Hose 4" (102mm) I.D (AF9202-400) AF9202-400

Aeroflow Gloss Black 45° Silicone Elbow Hose 4" (102mm) I.D (AF9202-400)

4-Ply, 13/64" (5.3mm) Wall Thickness, 5-45/64" (145mm) Leg
SKU: AF9202-400
$76.50 - $76.50
$76.50
$76.50 - $76.50
$76.50
+ GST
Stock Status: ✅ In stock — shipping now from Fast Lane Spares

Silicone Hose 45 Deg; Black

4-Ply, 13/64" (5.3mm) Wall Thickness, 5-45/64" (145mm) Leg

Part Number: AF9202-400

Aeroflow designs and manufactures premium quality silicone hose for the Performance Automotive Industry, Transport Industry and Industrial applications. Whether it's silicone heater hose, vacuum or high temperature silicone turbo hose, Aeroflow has the right products for your demanding applications.

- 4 Ply hose with a wall thickness of 5.3mm (13/64")
- 145mm (5-45/64") Leg
- Working temperature -60 to +180° C (-75 to +350° F)
- Excellent ply adhesion from the inner core to the outer layers
- Bright gloss Black finish
- Not recommended for use with oil and fuel
- Weather resistance to harsh sunlight, dry conditions and rain water

Note: Leg sizes are approximate and may vary.

Specifications: Internal Diameter: 102mm
Outside Diameter: 112.6mm
Leg Length: 145mm
Recommended Hose Clamp (Guide Only):
Worm Drive Clamp: AF23-9114
Constant Tension Clamp: AF28-1012 / AF28-1012BLK
T-Bolt Clamp: AF24-1412
