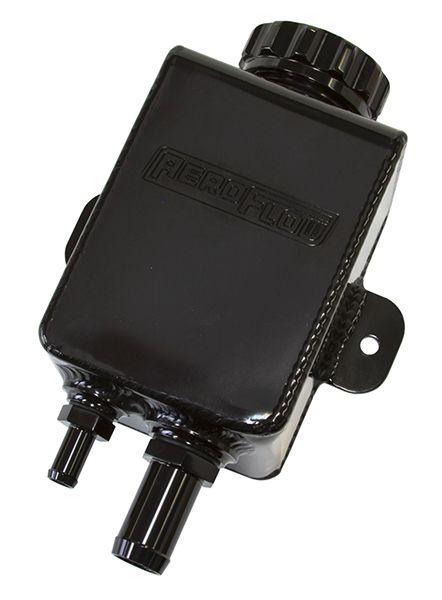

Aeroflow Fabricated Square Power Steering Reservoir - Black (AF77-1025BLK)

With -10 ORB and -6 ORB Ports
SKU: AF77-1025BLK
Original price $244.00 - Original price $244.00
Original price
$244.00
$244.00 - $244.00
Current price $244.00
+ GST
Availability:
Available, allow for 2-10 days shipping

AF77-1025BLK - FABRICATED P/STEER TANK SQUARE

With -10 ORB and -6 ORB Ports

Part Number: AF77-1025BLK

Aeroflow universal square fabricated power steering remote reservoirs are ideal for applications that can not fit a pump mounted reservoir in conversion cars or you wish to dress up your engine bay with an aftermarket power steering system. They are manufactured from 5051 aluminium with internal baffles which act like an air separator to keep the fluid from getting foamy or overflowing. Included on the return side we have incorporated a restrictor to prevent aeration within the tank as well.
Each tank features a 38mm (1-1/2") billet cap and can hold 810ml (27oz) of fluid. 1 x -6ORB port and one -10ORB port on the bottom of each tank are included with barb adapters so you can choose to go a braided line option or rubber lines.
These professionally constructed tanks come either highly polished or in a black anodised finish.

Specifications: Dimensions:
Tank Height: 120mm
Tank Width: 85mm
Tank Length: 85mm
Barb Sizes 9.52mm (3/8") and 19mm (3/4")

Instructions
