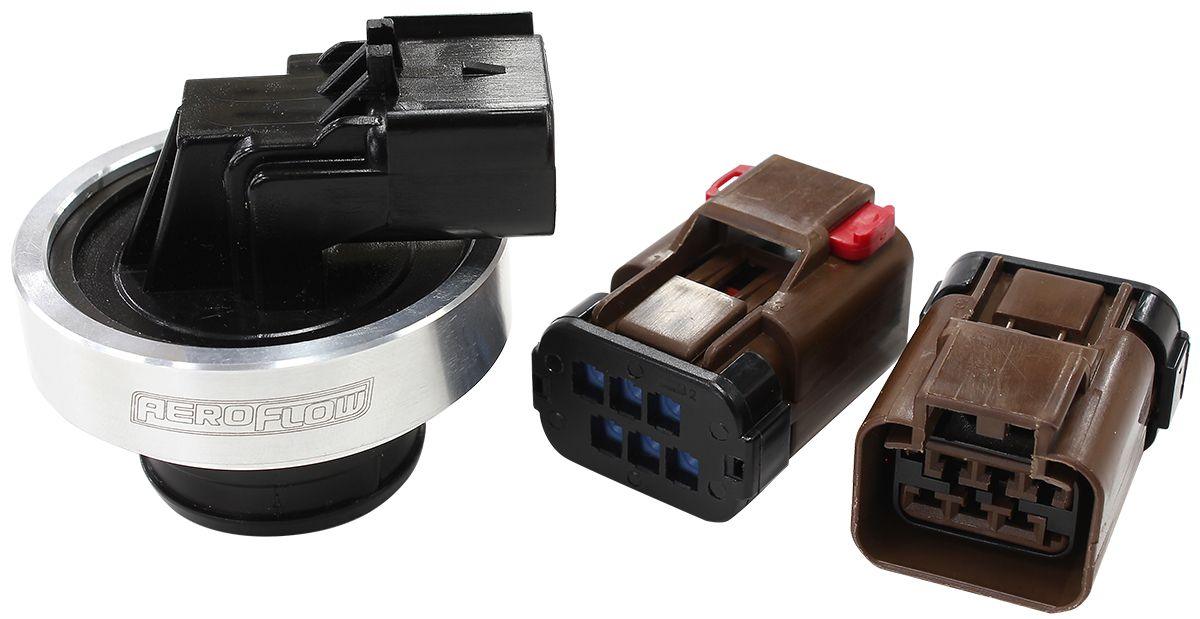

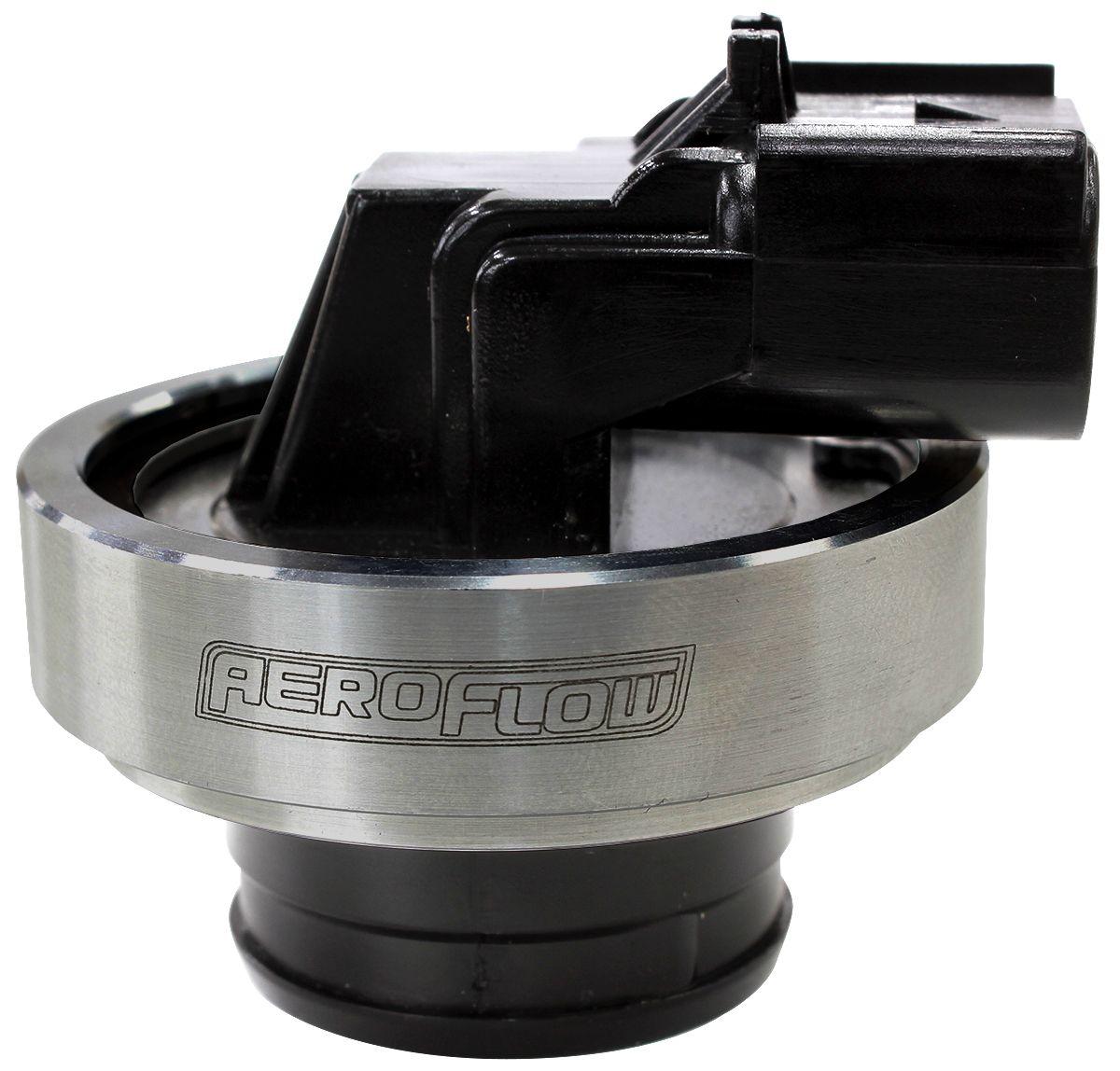

Aeroflow Electrical Bulkhead Connector (AF49-4049)

With Alloy Weld-On Ring
SKU: AF49-4049
Original price $67.10 - Original price $67.10
Original price
$67.10 - $67.10
Current price $67.10
Available, allow for 2-10 days shipping


With Alloy Weld-On Ring

Part Number: AF49-4049

The Aeroflow Performance weld-in electrical bulkhead 6 pin connector is a quality component to wire your fuel pump in your fuel cell project in a safe way to ensure no leaks or fumes escape. The connector kit is rated up to 30amp per pin to supply enough juice to power all aftermarket fuel pumps. The terminals are intended for use with 14-10AWG wires. The terminals are easily installed or de-pinned with ease using basic hand tools and each connector is separate making installation a breeze. This kit includes a weld-in aluminium bung for the bulkhead connector, a Viton O- ring to seal the bulkhead to the bung, and a snap-ring to secure the bulkhead safely in place. Internal and external connectors are included, along with 12 crimp terminals. Max diameter of bung is 2.4" and Minimum Panel hole is 1.9".
