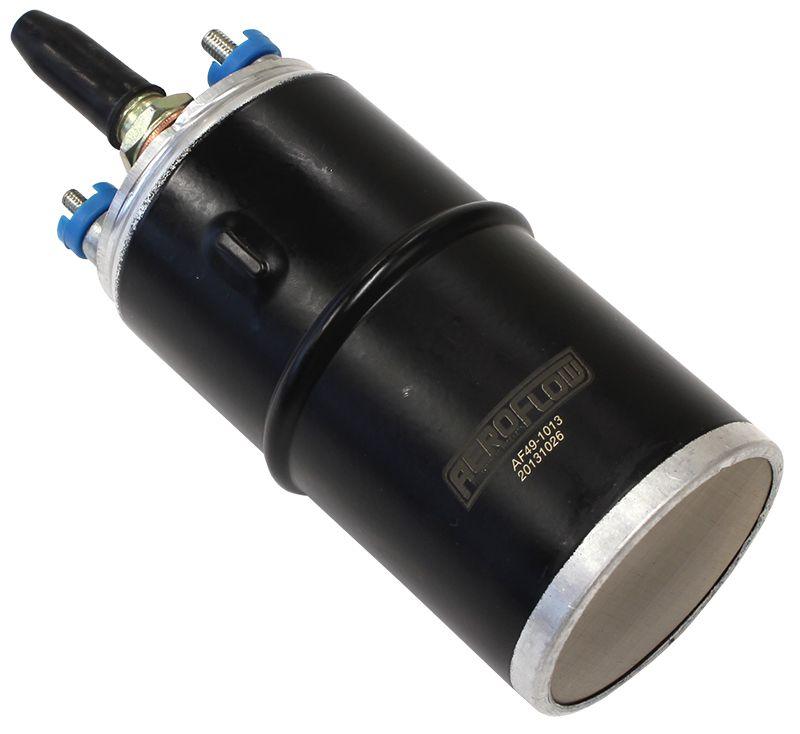

Aeroflow EFI Electric In-tank Fuel Pump 675 HP (AF49-1013)

Screen Inlet, M12 x 1.5mm Outlet, similar to Bosch 023
SKU: AF49-1013
Original price $193.60 - Original price $193.60
Original price
$193.60
$193.60 - $193.60
Current price $193.60
+ GST
Availability:
Available, allow for 2-10 days shipping

AF49-1013 - EFI IN TANK PUMP SCREENED

Screen Inlet, M12 x 1.5mm Outlet, similar to Bosch 023

Part Number: AF49-1013

Universal 60mm EFi In-Tank Pump w/Screen Inlet.

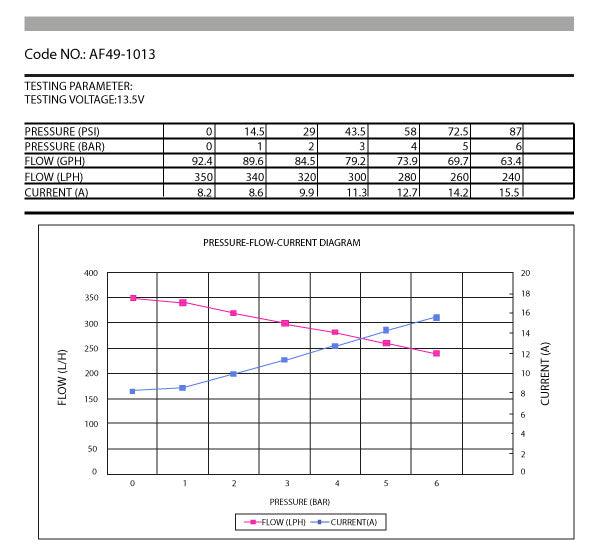

This Aeroflow Performance fuel pump delivers outstanding performance and duraility and is one of the most popular pumps on the market for performance and racing applications. This fuel pump is almost identical to the AF49-1014 but is only suitable for In-Tank applications. It features a screen on the bottom of the fuel pump which acts as a filter to keep any unwanted debris from entering the pump. While producing 300lph (79GPH) of fuel low and operating at 72.5psi, you will be able to support 675 horsepower. It features a check valve already installed into the outlet, if you leave it in you will need to run a banjo fitting off it as it has a tapered thread. It is quite common for people to remove the check valve and screw and adapter straight in to the outlet. If you do this you will need to put an aftermarket check valve in-line to keep fuel pressure in your lines.

Compatible with Unleaded, E85 and Methanol fuels (When used with Alcohol fuels like E85 the service life of the pump will be shortened and filter maintenance must be increased)

In-Tank Applications only.

Specifications: Body Length: 123mm (4-27/32")
Body Diameter: 60mm (2-23/64")
Outlet thread: M12 x 1.50mm
Electrical Terminals: Positive M6, Negative M5
