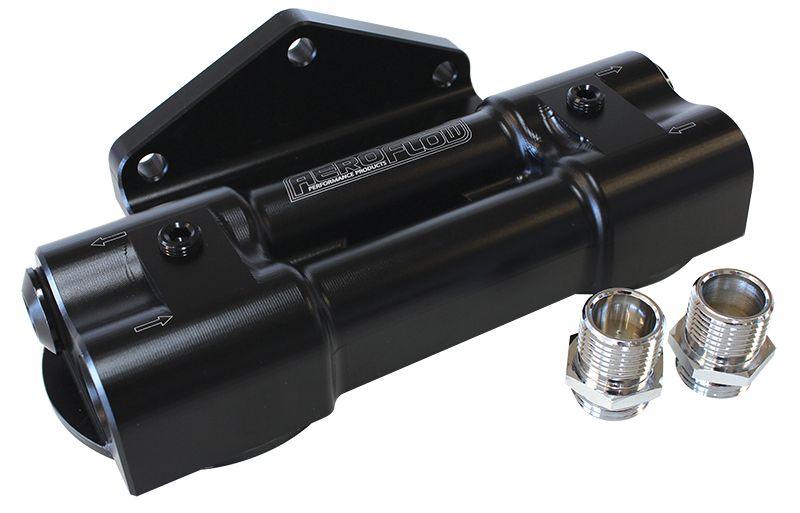

Aeroflow Dual Billet Remote Filter Head - Side Entry (AF64-2089)

AF64-2089 - BILLET DUAL FILTER MOUNT

3/4" -16 Filter Thread with 2 x -8 Port Plugs Included

Part Number: AF64-2089

Move your oil filter and add a second oil filter to a new location with Aeroflow Performance universal Dual Billet Remote Oil Filter head with dual side entry. This is great for mounting engine oil filters away from your engine, to make oil filter changes easier or where space is limited in the engine bay. This is great for users that wish to run two oil filters side by side for extra protection and filtration. Side Entry on both sides labelled inlet and outlet -8AN ORB ports are provided for plumbing the engine oil to and from the oil filter remote mount. The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. Integrated one piece bracket which can be used to make installation easier in various universal applications.
This product has a 3/4”-16 filter thread insert supplied with kit. Which can also be purchased separately (AF59-2075) if required.
NOTE: Must run both oil filters when using this filter head.
Features:
2 x 1/8" NPT port in either end
4 x -8ORB entry and exit ports (2 of each side) to suit left or right entry applications
Oil filters designed to work with this product are either:
AF2296-3001 (RYCO Z9) large oil filter with internal bypass.
AF2296-2008 (RYCO Z145A) small oil filter with no internal bypass.
Note:
Other oil filters may be used if the sealing O-ring on the filters provided above have the same inner and outer dimensions to allow the oil filter to seal
WARNING:
This is only one component required to complete your oil filter relocation. Other components such as oil filters, rubber hoses, fittings etc are all sold separately.

Specifications: Dimensions:
Overall Length - 190mm
Overall Width - 100mm
8mm mounting holes

Centre to Centre of -8ORB ports - 33.30mm

Centre to Centre of oil filters - 130mm
