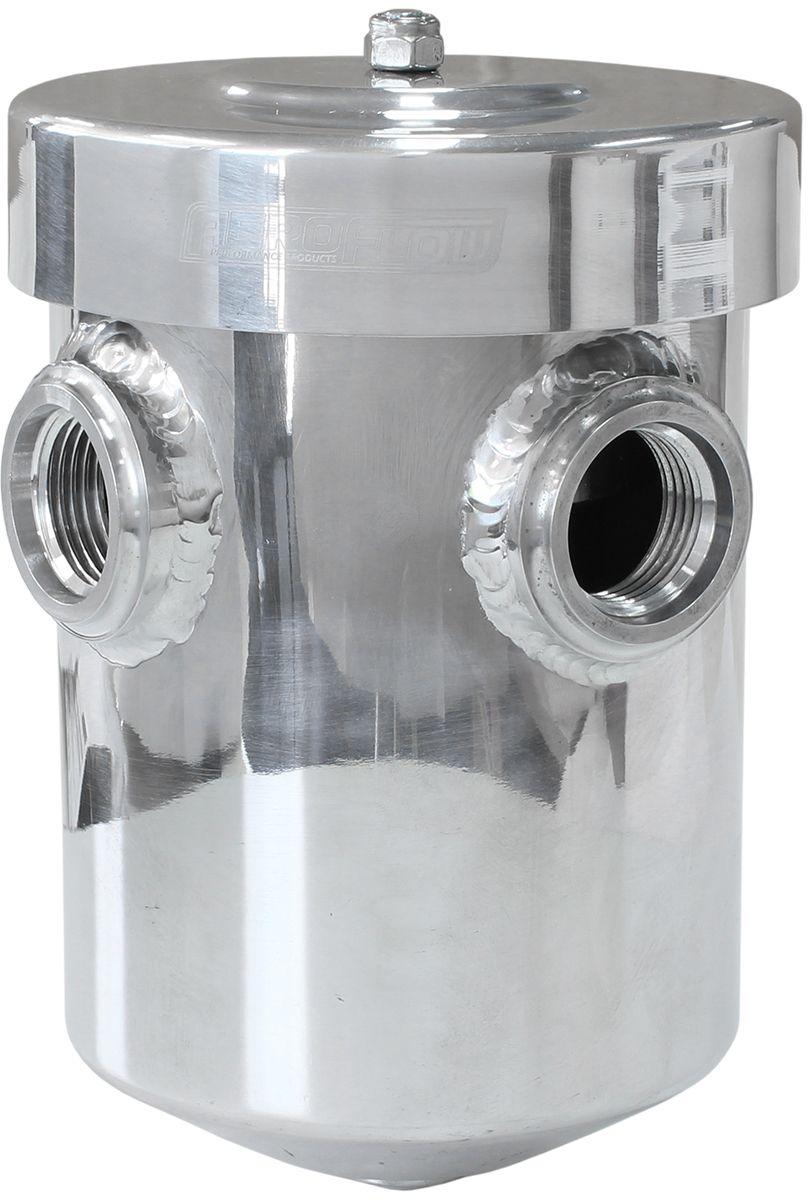

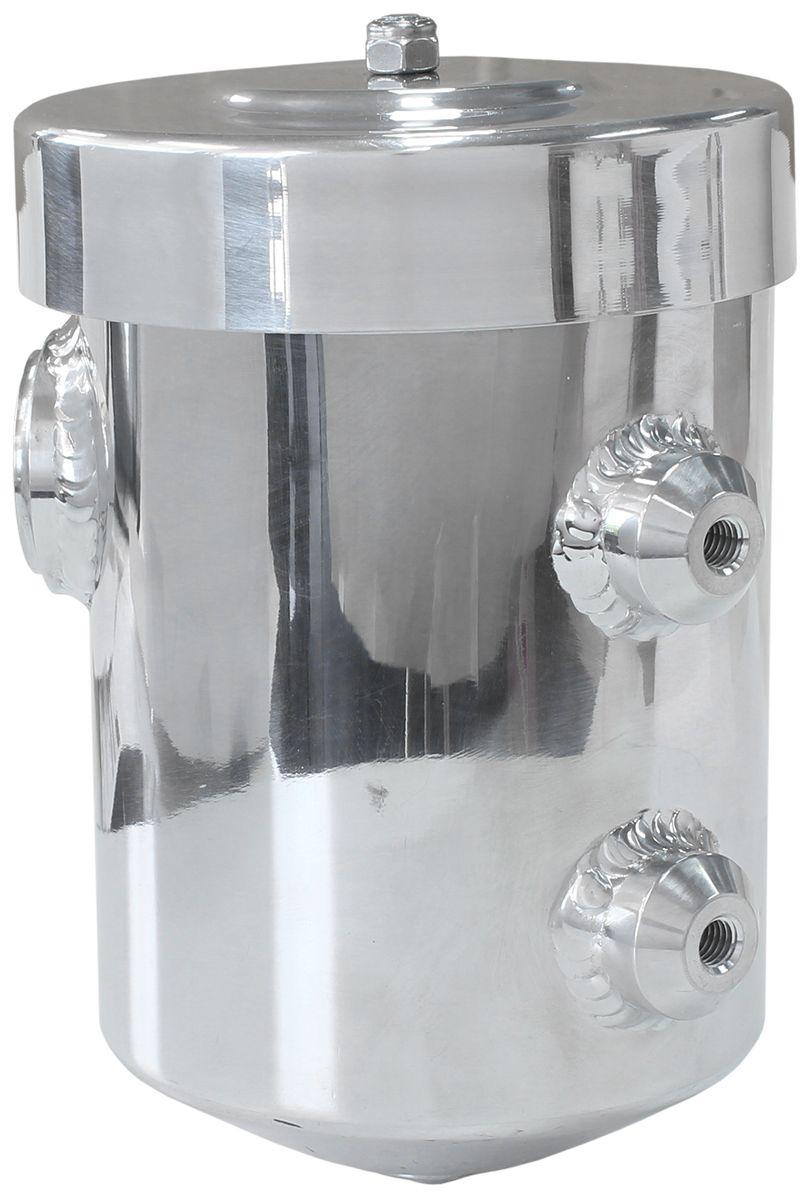

Aeroflow Dry Sump / Breather Tank - Polished (AF77-1019)2 x -12 and 1 x -6 ORB Ports. 4.5" (115mm) Width x 6.5" (165mm) Height
2 x -12 and 1 x -6 ORB Ports. 4.5" (115mm) Width x 6.5" (165mm) Height
Part Number: AF77-1019
The Aeroflow Performance Dry Sump Breather Tank is designed specifically for high performance engines that produce excessive blow-by/crankcase pressure which is the result of pressurised oil vapour which has pushed its way past the seals of the piston rings. This breather tank will help prevent oil and carbon build-up in the intake which can lead to detonation as well as pre-ignition. The inner baffle system is not only great for separating this oil and air but excellent for breathing your dry sump tank to atmosphere. With an internal foam filter built into the top lid that can easily be cleaned or replaced when necessary.
Constructed from billet 6061-T6 aluminium and finished in either polished or black anodized finishes. The tank features two large female -12ORB ports and one -6ORB port that can be used as a drain at the bottom of the tank. Two M8 x 1.25mm mounting bungs are welded on to mount this tank where ever it is convenient.
Overall Diameter: 115mm
Overall Height: 165mm
Centre to Centre of mounting holes: 62mm
2 x M8 x 1.25mm Mounting Holes
