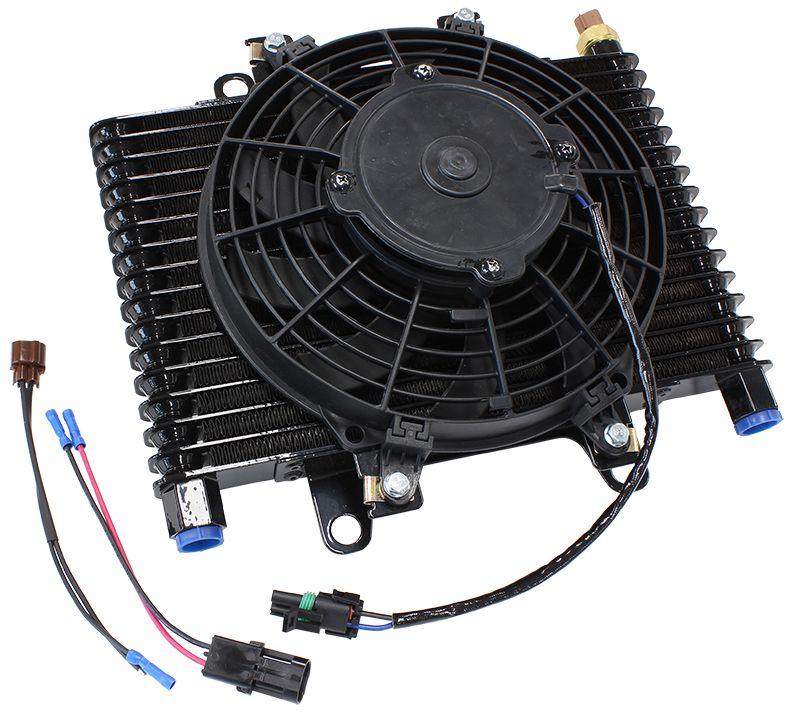

Aeroflow Competition Oil & Transmission Cooler (AF72-6001)

AF72-6001 - 13.5 x 9" COMP TRANS COOLER

-10 ORB, 13-1/2" x 9" x 3-1/2", with Fan & Switch

Part Number: AF72-6001

Aeroflow's engine and transmission competition oil coolers feature -10ORB female fittings, thermostat, wiring plug kit and a high quality electric fan. It accepts engine oil, transmission and power steering applications and has been pressure tested to over 200psi.
The M18 x 1.50mm thermal switch included in the top of the oil cooler activates the fan at 175°F/79.5°C. The cooler also features a fin and plate construction. The dimensions are 13-1/2"(342mm) x 9"(228mm).
The 9-1/2" (241mm) electric fan can be reversed for mounting either side of the heat exchanger. They are boxed in the pusher configuration. To change this to a puller fan simply unscrew 10mm nut (reverse (left hand) thread) and turn fan blade over keeping in mind polarity BLUE - Positive BLACK - Negative.

Specifications: Dimensions:
Overall Length: 342mm (13.5")
Overall Height: 228mm (9")
Oil Cooler Thickness: 32mm
Fan Thickness: 67mm
Centre to Centre of Mounting Holes: 153mm
Centre to Centre of Oil Cooler -10ORB Ports: 305mm
Centre to Centre of Fan Mounts: 113mm
- M18 x 1.50mm Thermal Switch.
- Turns electric fan on at 79.5°C (175°F)
- 9-1/2" (241mm) Reversible Electric Fan
- Flows 500 CFM
- Draws 6 Amps
