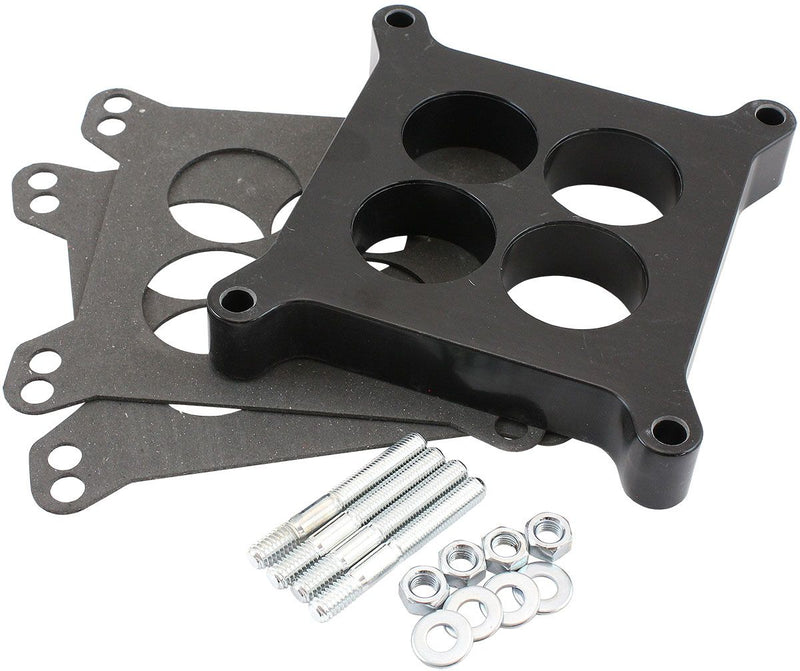

Aeroflow Carburettor Phenolic 1" 4 Hole Spacer (AF42-9134)
Gaskets and Mounting Hardware IncludedCARBURETTOR PHENOLIC 1" 4 HOLE
Gaskets and Mounting Hardware Included
Part Number: AF42-9134
Aeroflow phenolic carburettor spacers improve air/fuel distribution and reduce the fuel temperature for a denser fuel mixture, reduce vapor lock, and add additional plenum volume to increase engine performance. They help with linkage clearance on aftermarket or custom throttle cable setups.
Phenolic spacers also block heat transfer better than any material. The thermoset plastic provides a heat sink between an intake manifold and carburettor. With the harder material they will not warp heat cycles.
They are available in different heights in either open or ported designs to suit 4150 square bore manifolds with gaskets and mounting hardware included in all variations.
Specifications: Carburettor Spacer
- 1" (25.4mm) Thickness
- 4150 Square Bore bolt pattern
- 4 Hole spacer with 1.720" (43.6mm) internal diameter holes
Mounting Studs
- 4 x 5/16"-18 threads on intake end and 5/16"-24 on carburettor end
- 2.63" (66.8mm) Overall Length
Mounting Stud Nuts
- 4 x 5/16"-24 threads with a 1/2" hex head
Mounting Stud Washers
- 4x 5/16" (7.9mm) internal diameter, 0.591" (15mm) outside diameter, 0.060" (1.5mm) thickness
