Aeroflow Carburettor Alloy 1" Spacer with Vacuum Port Gaskets and Mounting Hardware Included (AF42-2103)
Gaskets and Mounting Hardware Included
Aeroflow Carburettor Alloy 1" Spacer with Vacuum Port Gaskets and Mounting Hardware Included (AF42-2103) is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description

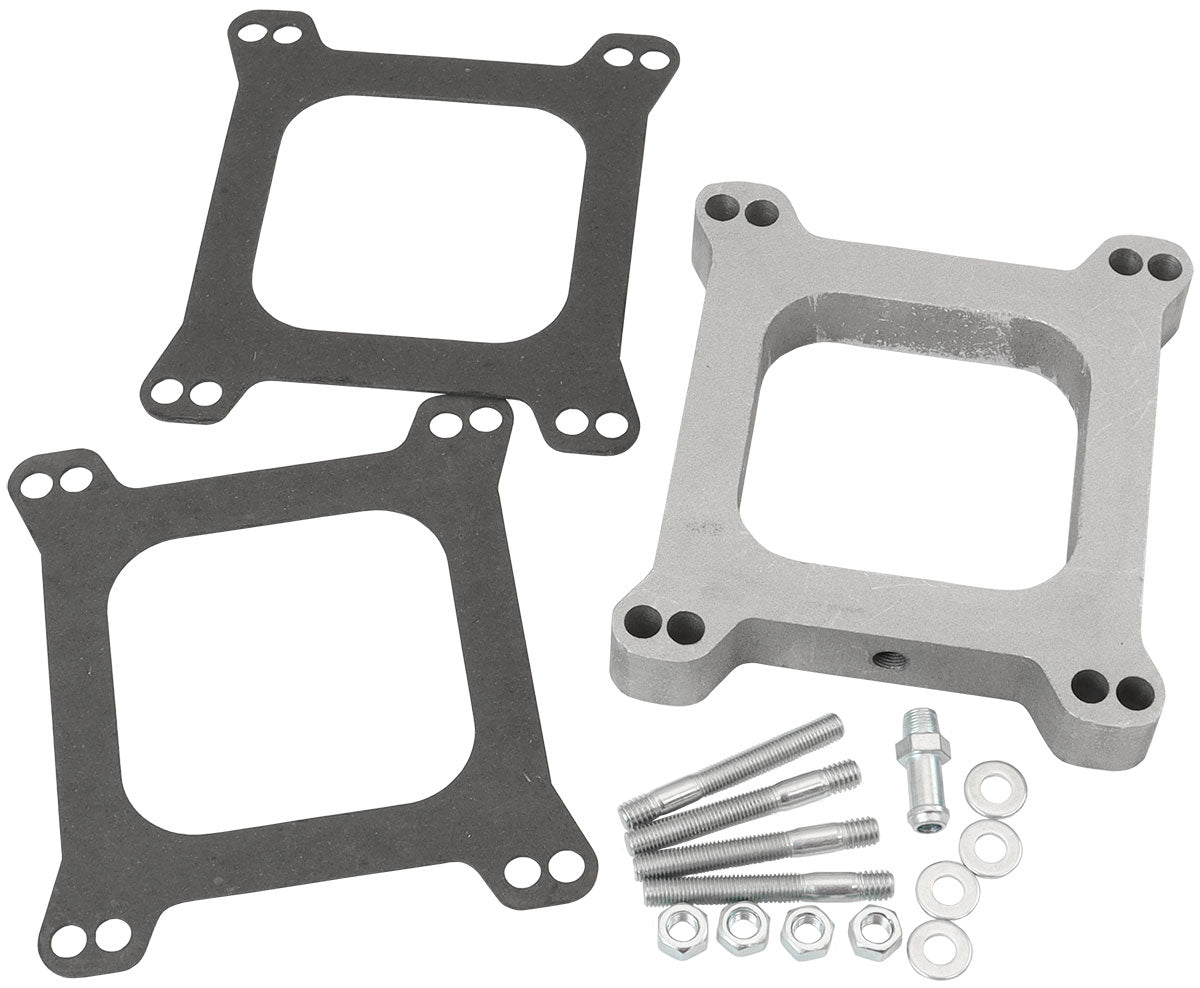

CARBURETTOR ALLOY 1" SPACER
Gaskets and Mounting Hardware Included
Part Number: AF42-2103
Aeroflow die cast aluminium carburettor spacer improves air/fuel distribution and reduce the fuel temperature for a denser fuel mixture, reduce vapor lock, and add additional plenum volume to increase engine performance. They help with linkage clearance on aftermarket or custom throttle cable setups.
This spacer features a 1/8" NPT port that can be used as a vacuum source. A hose tail with a 3/8" (9.52mm) barb is included. This spacer includes gaskets and mounting hardware required.
Specifications:
Carburettor Spacer
- 1" (25mm) Thickness
- 4150 Square Bore bolt pattern and Spread Bore Pattern
- 3.580" (90.9mm) Width x 3.620" (91.9mm) Length open style centre
Mounting Studs
- 4 x 5/16"-18 threads on intake end and 5/16"-24 on carburettor end
- 2.550" (64.8mm) Overall Length
Mounting Stud Nuts
- 4 x 5/16"-24 threads with a 1/2" hex head
Mounting Stud Washers
- 4x 5/16" (7.9mm) internal diameter, 0.591" (15mm) outside diameter, 0.060" (1.5mm) thickness
