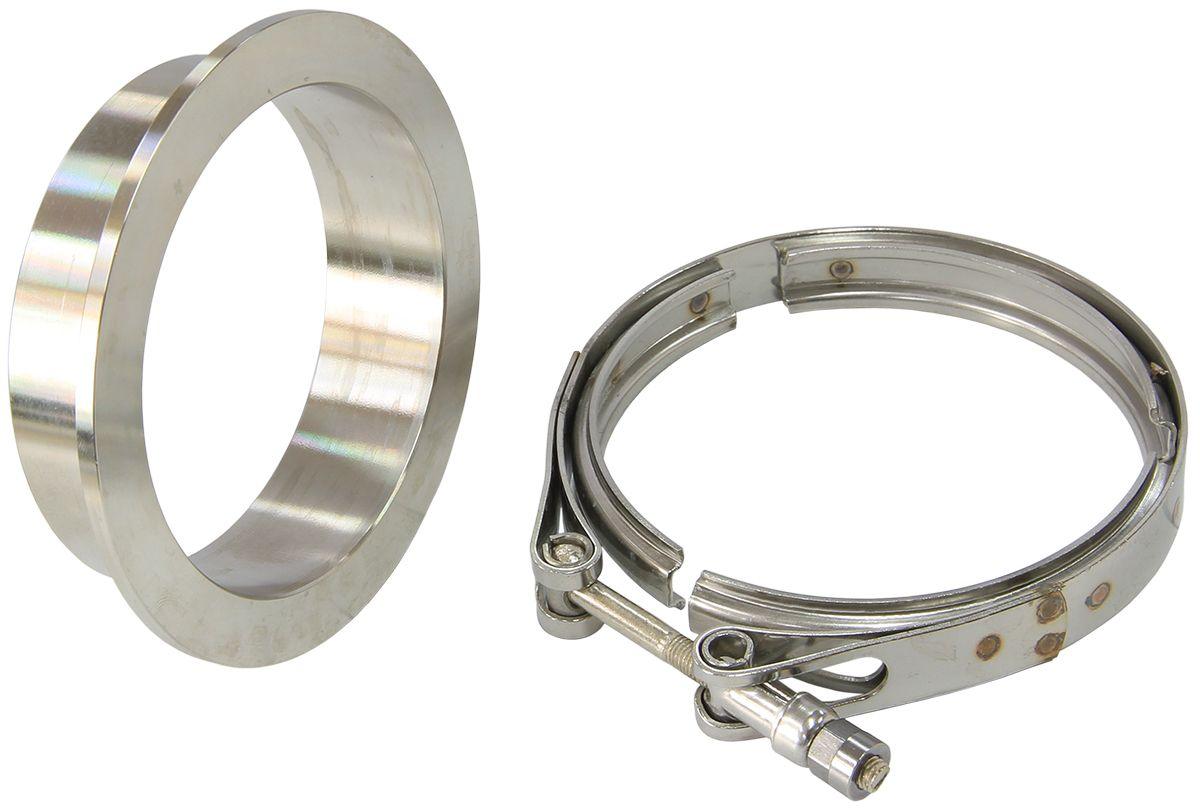

Aeroflow Boosted Turbine Outlet 4.61" O.D Stainless Steel V-Band Kit (AF8080-1001)

AF8080-1001 - 3.59" 304 SS BOOSTED VBAND KIT

Suit Boosted 6270 Up To 8888 Turbochargers

Part Number: AF8080-1001

These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.

Note:
Moly grease all threads before installation and removal.

Material is 304 Stainless Steel.

Suits Boosted Turbocharger Turbine Outlet Flange.

Replacement V-band clamp is AF8080-3001.

AF8080-1001 Aeroflow Performance V-Band Suits Boosted Turbos below:


AF8005-4001 / AF8005-4001BLK

AF8005-4004 / AF8005-4004BLK

AF8005-4004 / AF8005-4004BLK

AF8005-4005 / AF8005-4005BLK

AF8005-4005 / AF8005-4005BLK

AF8005-4005 / AF8005-4005BLK

AF8005-4007 / AF8005-4007BLK

AF8005-4013 / AF8005-4013BLK

AF8005-4014 / AF8005-4014BLK

AF8005-4015 / AF8005-4015BLK

AF8005-4017 / AF8005-4017BLK

AF8005-4018 / AF8005-4018BLK

AF8005-4027 / AF8005-4027BLK

AF8006-4027 / AF8006-4027BLK


Suits Boosted Rear Housings below :


AF8050-1009

AF8050-1029

Specifications: Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 91.4mm (3-19/32").
- V-Band Weld on Ferrule Outside Diameter - 117.3mm (4-39/64").
- V-Band Weld on Ferrule Lip Outside Diameter - 97.3mm (3-53/64").
