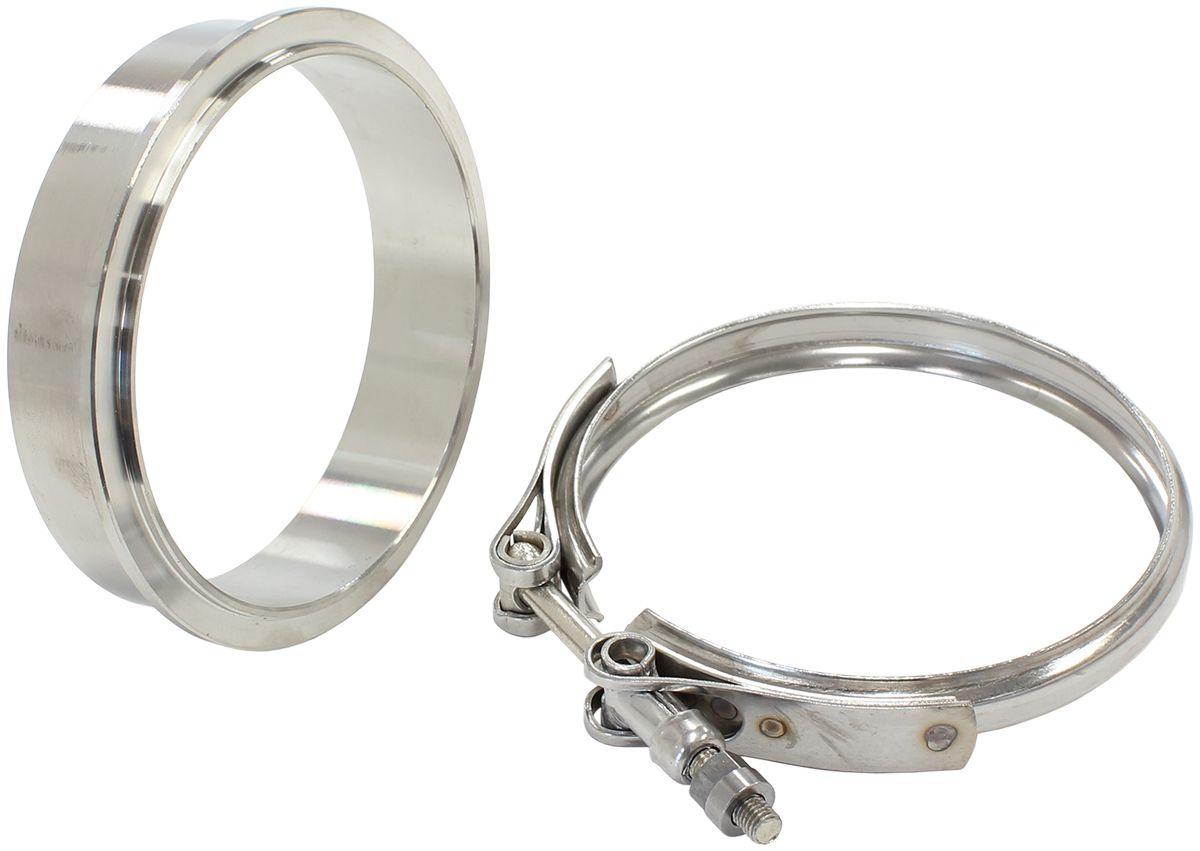

Aeroflow Boosted Turbine Outlet 4.50" O.D Stainless Steel V-Band Kit (AF8080-1012)

AF8080-1012 - 3.8" 304 SS BOOSTED V-BAND KIT

Suit Boosted 7588 & 8888 with 1.31 A/R Turbochargers

Part Number: AF8080-1012

These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.

Note:
Moly grease all threads before installation and removal.

Material is 304 Stainless Steel.

Suits Boosted Turbocharger Turbine Outlet Flange.

Replacement V-band clamp is AF8080-3008.

AF8080-1012 Aeroflow Performance V-Band Suits Boosted Turbos below:


AF8006-6002 / AF8006-6002BLK

AF8006-6003 / AF8006-6003BLK

Specifications: Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 98mm (2-27/32").
- V-Band Weld on Ferrule Outside Diameter - 114.3mm (4-1/2").
- V-Band Weld on Ferrule Lip Outside Diameter - 101.4mm (4").
- Suits Exhaust Tube Outside Diameter - 107.9mm (4-1/4").
