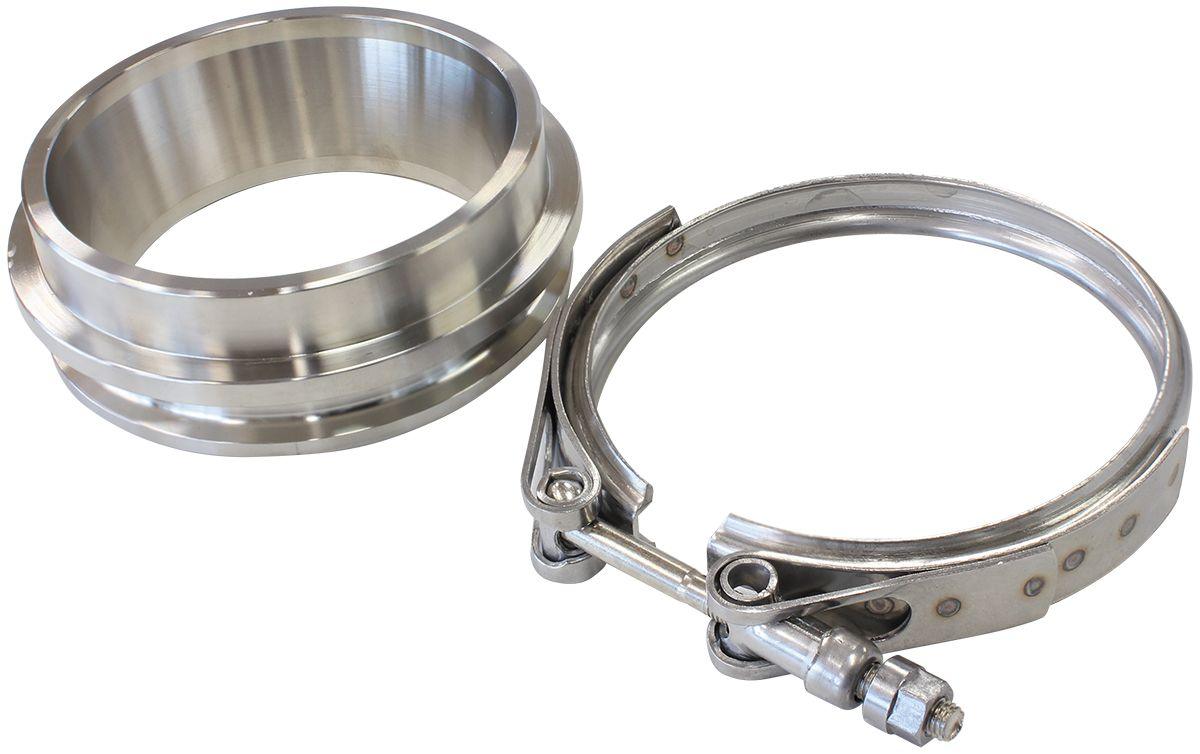

Aeroflow Boosted Turbine Inlet 4.25" O.D Stainless Steel V-Band Kit (AF8080-1028)

Suit Boosted 94102, 98102, 102102 & 106102 Dual V-Band Turbochargers

Part Number: AF8080-1028

These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.

Note:
Moly grease all threads before installation and removal.

Material is 304 Stainless Steel.

Suits Boosted Turbocharger Turbine Inlet Flange.

Replacement V-band clamp is AF8080-3010.

AF8080-1028 Aeroflow Performance V-Band Suits Boosted Turbos below:


AF8005-6015 / AF8005-6015BLK

AF8005-6016 / AF8005-6016BLK

AF8005-6017 / AF8005-6017BLK

AF8005-6018 / AF8005-6018BLK
AF8005- 6025 / AF8005-6025BLK

AF8006-6020 / AF8006-6020BLK

AF8006-6021 / AF8006-6021BLK

AF8006-6022 / AF8006-6022BLK

AF8006-6023 / AF8006-6023BLK


Suits Boosted Rear Housings below :


AF8050-1033

Specifications: Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 79.3mm (3-1/8").
- V-Band Weld on Ferrule Outside Diameter - 107mm (4-1/4").
- Suits Exhaust Tube Inside Diameter - 101.6mm (4")
- Suits Exhaust Tube Outside Diameter - 91.3mm (3-19/32").
