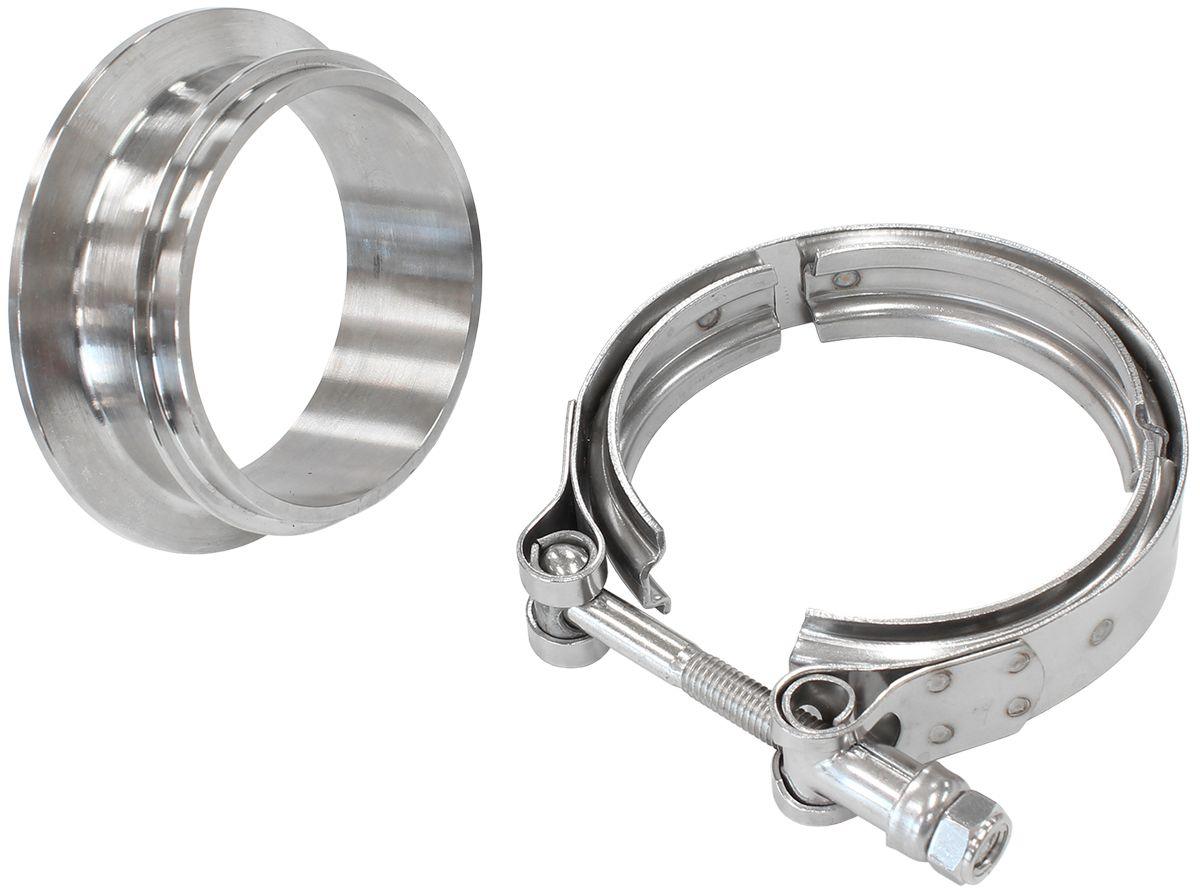

Aeroflow Boosted Turbine Inlet 3.62" O.D Stainless Steel V-Band Kit (AF8080-1019)
Suit Boosted 7375 & 7975 Dual V-Band Turbochargers3.62" 304 SS BOOSTED VBAND KIT
Suit Boosted 7375 & 7975 Dual V-Band Turbochargers
Part Number: AF8080-1019
These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.
Note: Molygrease all threads before installation and removal.
Material is 304 Stainless Steel.
Suits Boosted Turbocharger Turbine Inlet Flange.
Replacement V-band clamp isAF8080-3000.
AF8080-1019 Aeroflow Performance V-Band Suits Boosted Turbos below:
- AF8005-4006 / AF8005-4006BLK
- AF8005-4008 / AF8005-4008BLK
- AF8005-4009 / AF8005-4009BLK
- AF8005-4010 / AF8005-4010BLK
- AF8005-4011 / AF8005-4011BLK
- AF8005-4012 / AF8005-4012BLK
- AF8005-4106 / AF8005-4106BLK
- AF8005-4108 / AF8005-4108BLK
- AF8005-4109 / AF8005-4109BLK
- AF8005-4110 / AF8005-4110BLK
- AF8005-4111 / AF8005-4111BLK
- AF8005-4112 / AF8005-4112BLK
Specifications: Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 68mm (2-43/64").
- V-Band Weld on Ferrule Outside Diameter - 92mm (3-5/8").
- V-Band Weld on Ferrule Lip Outside Diameter - 76.75mm(3-1/64").
- Suits Exhaust Tube Outside Diameter - 73.75mm (2-29/32").
