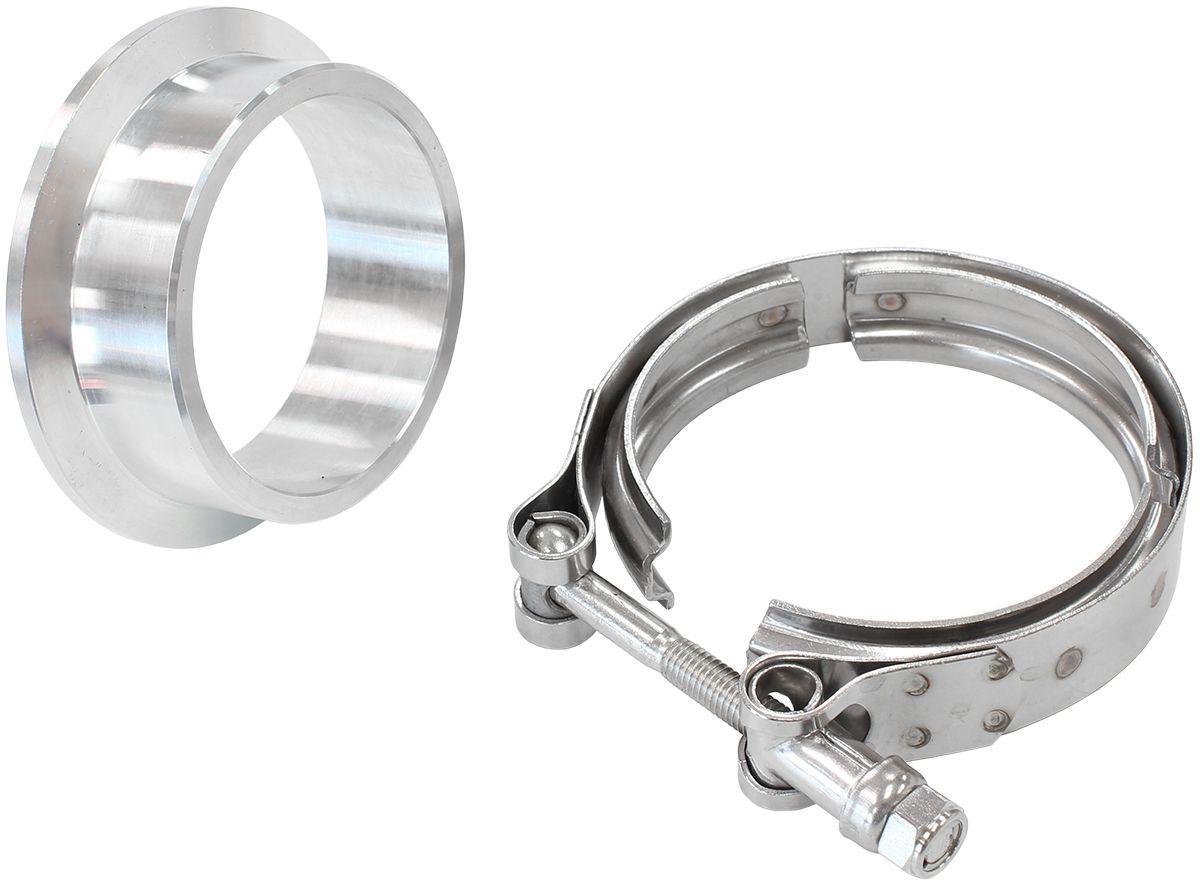

Aeroflow Boosted Compressor Outlet 4.21" O.D Aluminum V-Band Kit (AF8080-1025)

AF8080-1025 - 2.57" ALLOY BOOSTED V-BAND KIT

Suit Boosted 7075, 7675, 7975 & 8077 Turbochargers

Part Number: AF8080-1025

These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.

Note:
Moly grease all threads before installation and removal.

Material is Aluminium.

Suits Boosted Turbocharger Compressor Outlet Flange.

Replacement V-band clamp is AF8080-3000.

AF8080-1025 Aeroflow Performance V-Band Suits Boosted Turbos below:


AF8005-4001 / AF8005-4001BLK

AF8005-4017 / AF8005-4017BLK

AF8005-4027 / AF8005-4027BLK

AF8005-6010 / AF8005-6010BLK

AF8005-6011 / AF8005-6011BLK

AF8006-4001 / AF8006-4001BLK

AF8006-4017 / AF8006-4017BLK

AF8006-4018 / AF8006-4018BLK

AF8006-4027 / AF8006-4027BLK

AF8006-6000 / AF8006-6000BLK

AF8006-6001 / AF8006-6001BLK

AF8006-6002 / AF8006-6002BLK

AF8006-6003 / AF8006-6003BLK

Specifications: Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 65.35mm (2-9/16").
- V-Band Weld on Ferrule Outside Diameter - 92mm (3-5/8").
- Suits Exhaust Tube Outside Diameter - 76.2mm (3").
