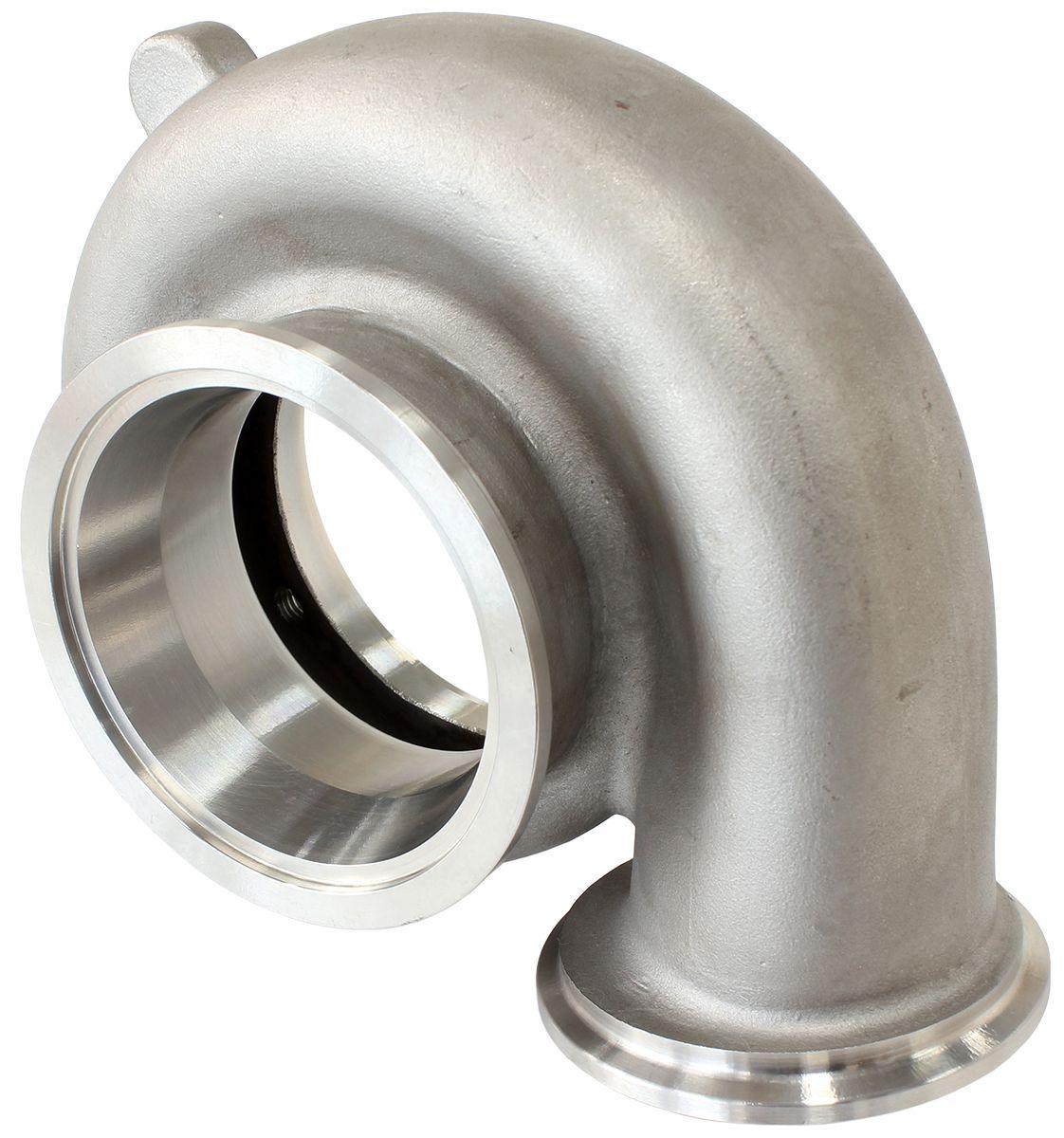

Aeroflow Boosted .82 A/R Dual V-Band Turbo Exhaust Housing, Suits Boosted 6662 Turbochargers (AF8050-1000)304 Stainless Steel Material
304 Stainless Steel Material
Part Number: AF8050-1000
Aeroflow Performance offers a variety of replacement turbine rear housings for their entire range for Boosted series turbochargers. You can choose to option for a smaller or larger A/R ratio. This will allow you to fine tune depending on your application for engine configuration and driving conditions. Available in many different turbine inlet and outlet flanges to fit most exhaust manifolds such as T25/T28, T3, T4 ,T6 and V-Band and Exhaust downpipes such as 5 bolt and V-band. Turbine housings can be replaced on most turbos easily via mounting bolts or V-bands and a few minutes of time. They can be clocked 360 degrees to just about any position needed.
Specifications: Boosted Dual V-Band Stainless Steel Turbine Housing
0.82 compressor ratio ( A.R ) 304 stainless exhaust housing.
V-band turbine outlet flange AF8080-1022.
V-band turbine inlet flange AF8080-1010.
Suits Boosted turbos with a 10-blade 62mm turbine exducer wheel.
Suits the following Boosted turbos:
AF8005-3010 / AF8005-3010BLK
AF8005-3011 / AF8005-3011BLK
AF8005-3012 / AF8005-3012BLK
AF8005-3014 / AF8005-3014BLK
AF8005-3015 / AF8005-3015BLK
AF8005-3016 / AF8005-3016BLK
AF8005-3017 / AF8005-3017BLK
AF8005-3020 / AF8005-3020BLK
AF8005-3022 / AF8005-3022BLK
AF8005-3023 / AF8005-3023BLK
AF8005-3024 / AF8005-3024BLK
AF8005-4000 / AF8005-4000BLK
