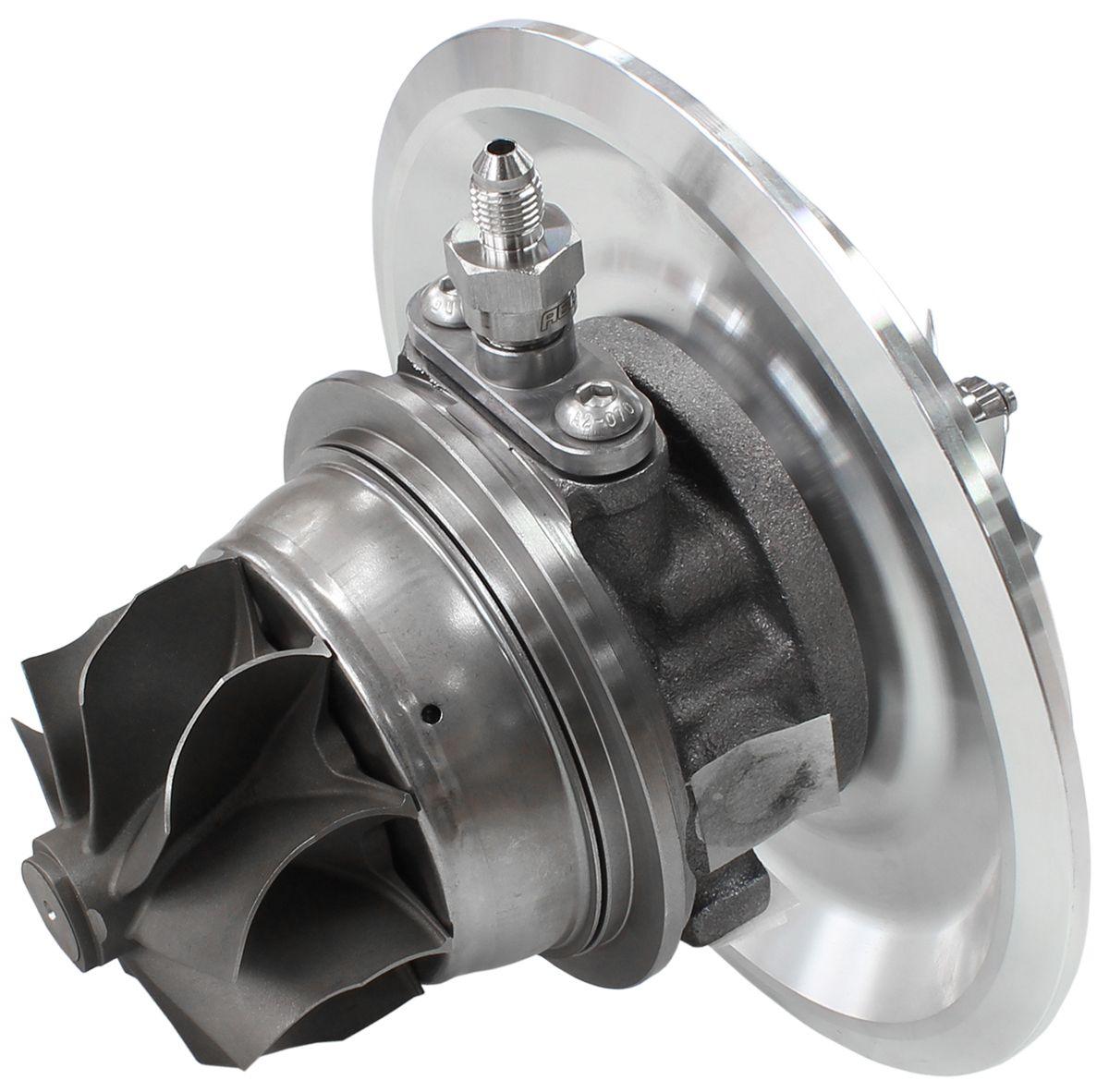

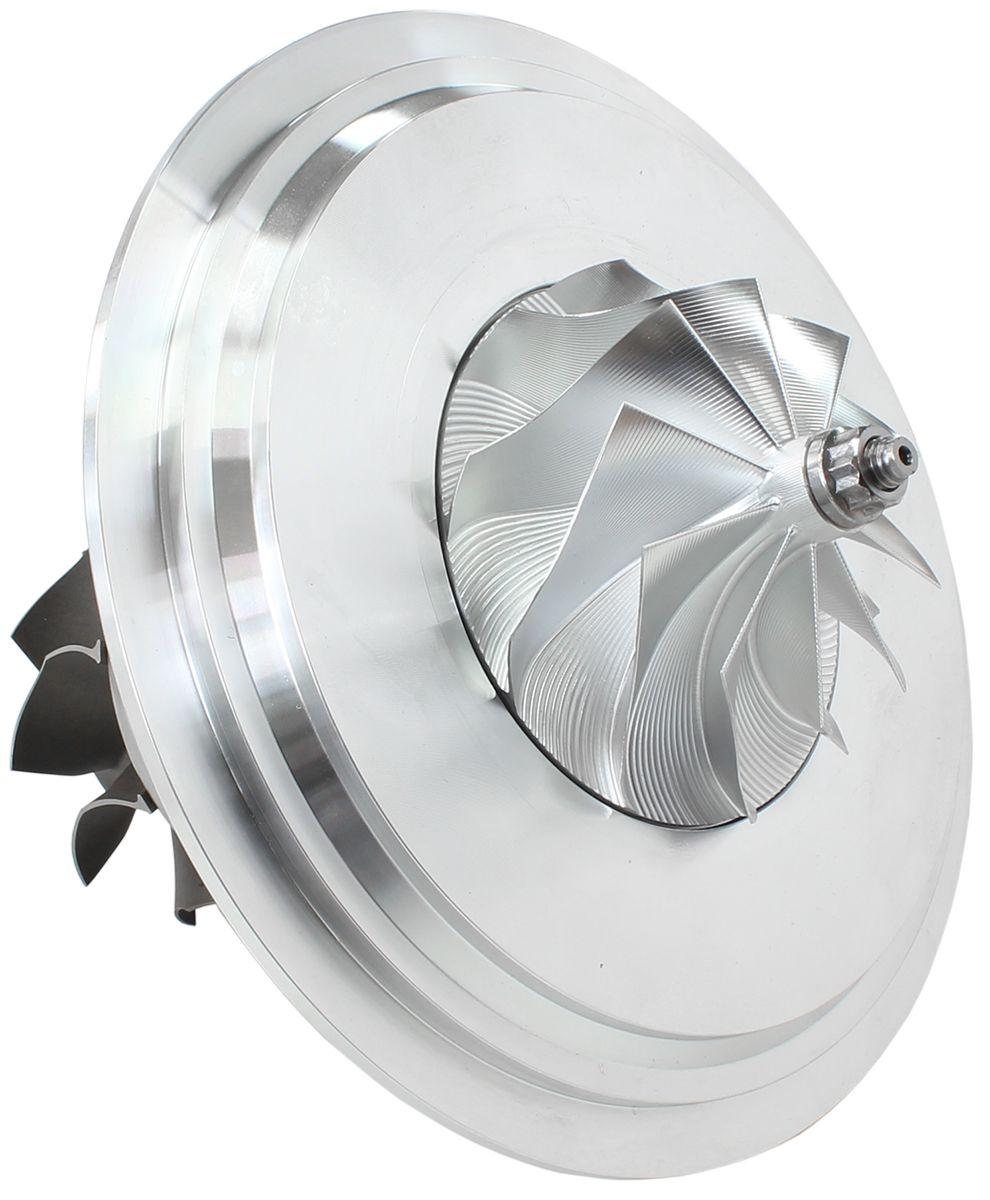

Aeroflow Boosted 7975 Reverse Rotation Turbocharger Core Only (AF8059-4110)

SKU: AF8059-4110
Original price $1,753.40 - Original price $1,753.40
Original price
$1,753.40
$1,753.40 - $1,753.40
Current price $1,753.40
+ GST
Availability:
Low stock, please contact before purchasing

AF8059-4110 - 7975 Core only - Dual BB - REV

Part Number: AF8059-4110

Boosted Turbocharger Replacement Core.

As another way of backing up our excellent Boosted Turbocharger range, we stock replacement core's for all popular Boosted Turbo models. This way if you have a mis-hap that has damaged either of the wheels or even the internals of the turbocharger you can easily purchase the core and swap it out. These cores are designed to suit Boosted Turbochargers specifically however you may find some crossover on other brands that have a similar core design.

Specifications: BOOSTED 7975 V-Band Reverse Rotation Core Specifications

Recommended horsepower rating:  475-1450HP
Recommended engine displacement:  2.0L to 8.0L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty
VOID
if not used)
- 9 blade turbine wheel
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications

Inducer:  79mm
Exducer:  98mm
Extended Tip:  103mm

Turbine Specifications

Inducer:  82mm
Exducer:  75mm
Wastegate

External wastegate

Important Information: Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date of purchase however warranty will be void if the product is not used in the correct way for which it was intended. Boosted Turbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectly installed or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.
This Boosted ball bearing turbocharger from Aeroflow Performance does not feature an internal oil flow restrictor. A -4AN fitting is provided with a built in external oil feed restrictor and must be used to ensure oil does not push past the seals and shorten the life span of the turbocharger. Should you choose not to use the provided -4AN fitting then an external oil feed restrictor (AF399-04 or AF399-03, available for purchase separately) must be installed in the turbo oil feed line at the engine side and turbo side of the line. Failure to use a suitable restrictor will void the warranty. Boosted turbochargers that feature water cooling ports must have these ports connected to the water cooling system in order to cool the turbocharger core. Failure to connect any and all of these ports will void all warranties.
