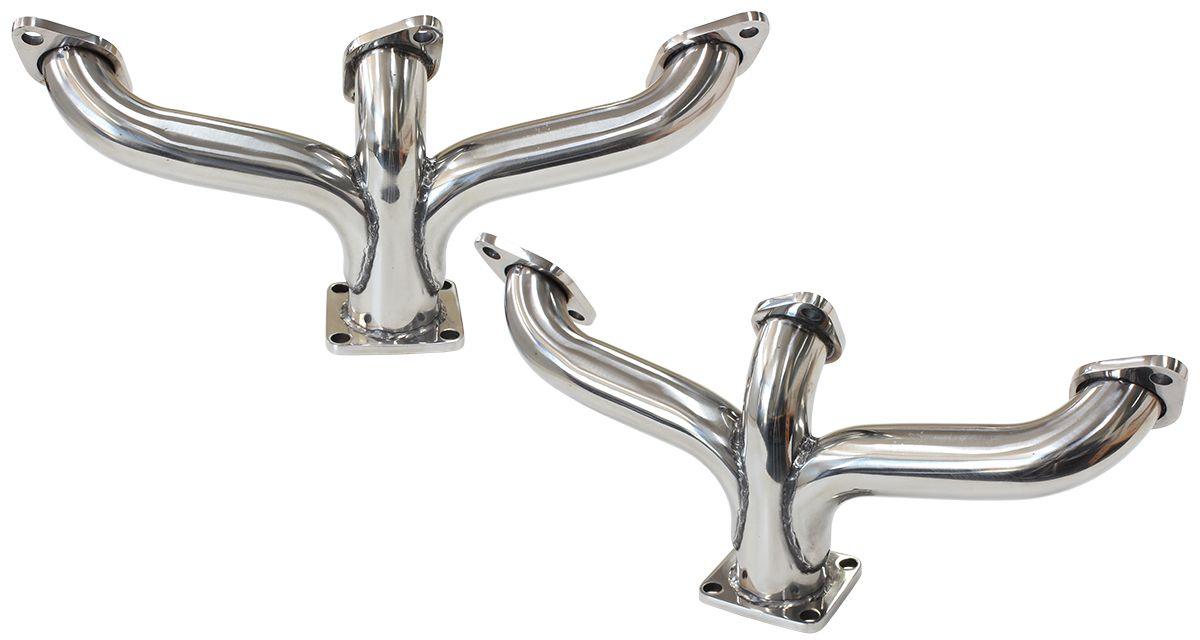

Aeroflow Block Huggers (AF9599-1000)

Aeroflow Performance stainless steel center dump headers are a universal fitment to suit the 1932- 1953 Ford V8 Flathead. These are manufactured from high tubular steel and is not recommended for use with the stock Ford wishbone front suspension.

This header kit will include the following:

2 x Header Manifold.

2 x 4 bolt Square Header Flange.

2 x 4 bolt Square Exhaust Gasket.

6 x Manifold Exhaust Gasket.

4 x 7/16”-14 Header Bolt.

4 x 3/8”-16 Header Bolt.

6 x 3/8”-24 Bolts with Nuts and Washers.

Specifications: Primary Tube Diameter
- 44.45mm (1-3/4”).

Collector Diameter
- 63.5mm (2-1/2”).

Exhaust Ports
- Round 41.14mm x 41.14mm (1.62” x 1.62”).



Dimensions:

Width of Header at Widest Point from Exhaust Port
- 154.95mm (6.10”).

Height of Header from Top of Flange to Lowest Point
- 190.5mm (7.50”).
