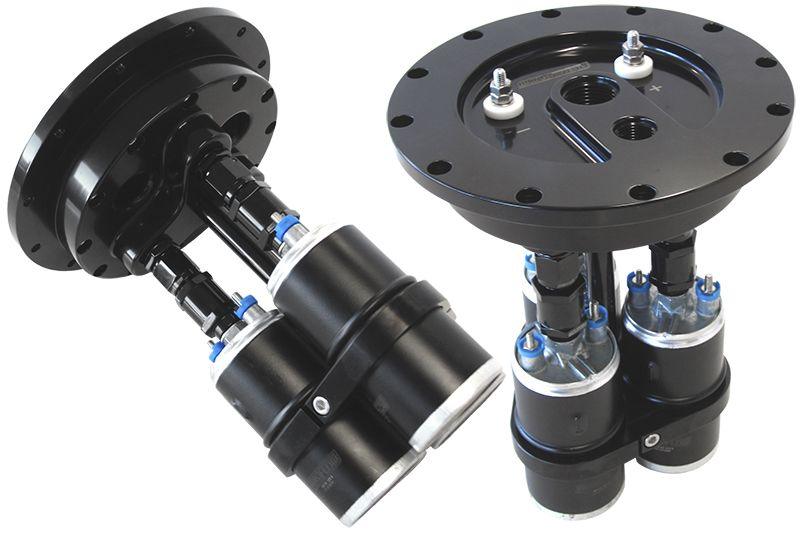

Aeroflow Billet Triple Fuel Pump Hanger - Black (AF64-4050BLK)

Suits Aeroflow or Bosch style pumps, 8" (205mm) cut-out required
SKU: AF64-4050BLK
Original price $686.20 - Original price $686.20
Original price
$686.20
$686.20 - $686.20
Current price $686.20
+ GST
Availability:
Available, allow for 2-10 days shipping

AF64-4050BLK - AEROFLOW BILLET TRIPLE PUMP

Suits Aeroflow or Bosch style pumps, 8" (205mm) cut-out required

Part Number: AF64-4050BLK

Deliver more fuel to your high powered car with Aeroflow's Triple Pump hanger kit! Our triple Pump Hanger is CNC machined from billet 6061-T6 aluminium with a black anodised option for maximum durability and corrosion protection against E85/Methanol. The 3 piece head incorporates a weld on for custom tanks. The Buna N O-rings provide a positive seal for the internal fuel log which has a -12 feed for large flow applications with a -8 return. With 3 x -8 internal feeds along with the check valves and male to female joiners which remove the need for in tank hose or clamps. We've designed the CNC Billet hanger to mount 2 or 3 Intake pumps
Suits a 205mm or 8" diameter cut-out.
For Use with 250mm or 10" deep tanks.

Twin or triple E85 compatible Aeroflow pumps AF49-1013 or Bosch in tank pumps
Built-in fuel manifold chamber for better pressure equalization and no external couplers
-12 feed for maximum flow
-8 Return
Pump wiring kit
Block-Off plugs required if using less than 3 pumps (sold separetly)

Instructions
