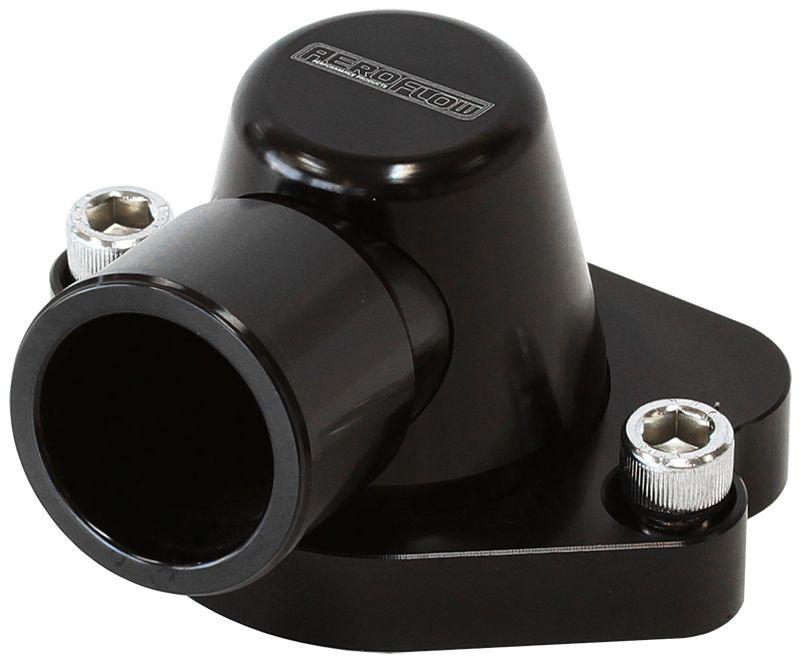

Aeroflow Billet Thermostat Housing - Black (AF64-2056BLK)

AF64-2056BLK - 253 308 HOLDEN THERMOSTAT

Suit Holden V8 (Swivel. No Heater Outlet)

Part Number: AF64-2056BLK

Suits Holden 253 304 308 (GM Australia V8) Swivel with NO Heater Barb Option.

Accepts Chevy Thermostat.

The Aeroflow Performance billet thermostat housings are a three-piece design that allows for correct positioning of the outlet to suit a large array for applications especially in conversions where small can be an issue. Machined from T6-6061 billet aluminium and allows for a full 360-degree swivel rotation for ease of installation. All Aeroflow Performance thermostat housings feature an O-ring base flange, as opposed to using the factory paper style gasket, this ensured a superior leak free seal. Each thermostat housing outlet can be untreated exposing a female 1-1/4”-20 thread to adapt a AN fitting or a larger barb fitting for custom applications. Available in several anodised finishes.

Replacement O-ring and bolts - AF59-2091

Specifications: Centre to Centre of Bolt Holes
- 84.40mm (3-5/16").
Overall Height
- 77.60mm (3-3/64").
Body Height
- 59.80mm (2-11/32").
Overall Length
- 101.70mm (4").
Width of Body
- 70.50mm (2-49/64").
Radiator Hose Size
- 38.25mm (1-1/2").
Radiator Hose Angle
- 45 Degree.
