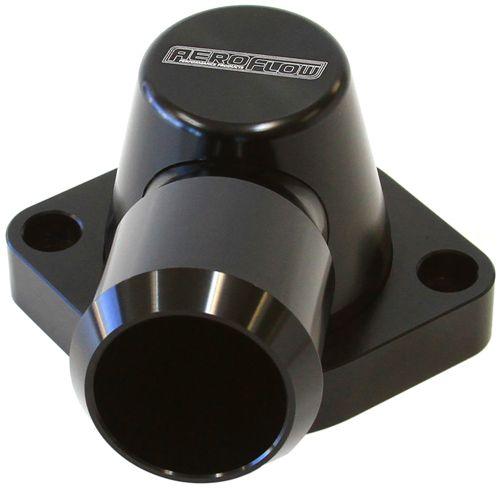

Aeroflow Billet Swivel Thermostat Housing - Black Finish (AF64-2115BLK)
Suits GM LS3. Housing isdesigned to suit LS2 thermostat.AF64-2115BLK - BILLET THERMOSTAT HOUSING
Suits GM LS3. Housing is designed to suit LS2 thermostat.
Part Number: AF64-2115BLK
Suits GM LS3 (Swivel).
Accepts
ONLY GM LS2
Thermostat.
The Aeroflow Performance billet thermostat housings are a three-piece design that allows for correct positioning of the outlet to suit a large array for applications especially in conversions where small can be an issue. Machined from T6-6061 billet aluminium and allows for a full 360-degree swivel rotation for ease of installation. All Aeroflow Performance thermostat housings feature an O-ring base flange, as opposed to using the factory paper style gasket, this ensured a superior leak free seal. Each thermostat housing outlet can be untreated exposing a female 1-1/4”-20 thread to adapt a AN fitting or a larger barb fitting for custom applications. Available in several anodised finishes.
Replacement O-ring and bolts - AF59-2092
Specifications: Centre to Centre of Bolt Holes
- 78mm (3-1/16").
Overall Height
- 68.10mm (3-3/64").
Body Height
- 58.80mm (2-11/16").
Overall Length
- 93.95mm (3-11/16").
Width of Body
- 69.90mm (2-47/64").
Radiator Hose Size
- 40mm (1-9/16").
Radiator Hose Angle
- 15 Degree.
