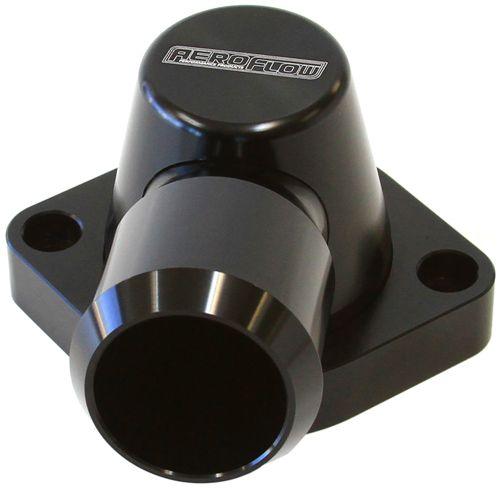

Aeroflow Billet Swivel Thermostat Housing - Black Finish (AF64-2092BLK)
Suits GM LS1 & LS2. Housing is designed to suit LS2 thermostat.
Aeroflow Billet Swivel Thermostat Housing - Black Finish (AF64-2092BLK) is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
BILLET THERMOSTAT HOUSING LS1
Suits GM LS1 & LS2. Housing is designed to suit LS2 thermostat.
Part Number: AF64-2092BLK
Suits GM LS1 LS2 LS6 LS7 (Swivel).
Accepts ONLY GM LS2 Thermostat.
The Aeroflow Performance billet thermostat housings area three-piece design that allows for correct positioningof the outlet to suit a large array for applications especially in conversions where small can be an issue. Machined from T6-6061 billet aluminium and allows for a full 360-degree swivel rotation for ease of installation. All Aeroflow Performance thermostat housings feature an O-ring base flange, as opposed to using the factory paper style gasket, this ensured a superior leak free seal. Each thermostat housing outlet can be untreated exposing a female1-1/4”-20 thread to adapt a AN fitting or a largerbarb fitting for custom applications. Available in several anodised finishes.
Replacement O-ring and bolts - AF59-2092
Specifications: Centre to Centre ofBolt Holes
- 76.2mm (3").
Overall Height
- 68.10mm (3-3/64").
Body Height
- 58.80mm (2-11/16").
Overall Length
- 93.95mm (3-11/16").
Width of Body
- 69.90mm (2-47/64").
Radiator Hose Size
- 40mm (1-9/16").
Radiator Hose Angle
- 15 Degree.
