Aeroflow Billet Remote Oil Filter Head -12 ORB Top Entry, Black anodized finish, accepts filter with 13/16"-16 thread (AF64-2275)
'-12 ORB Top Entry, Black anodized finish, accepts filter with 13/16"-16 threadREMOTE FILTER HEAD TOP ENTRY
-12 ORB Top Entry, Black anodized finish, accepts filter with 13/16"-16 thread
Part Number: AF64-2275

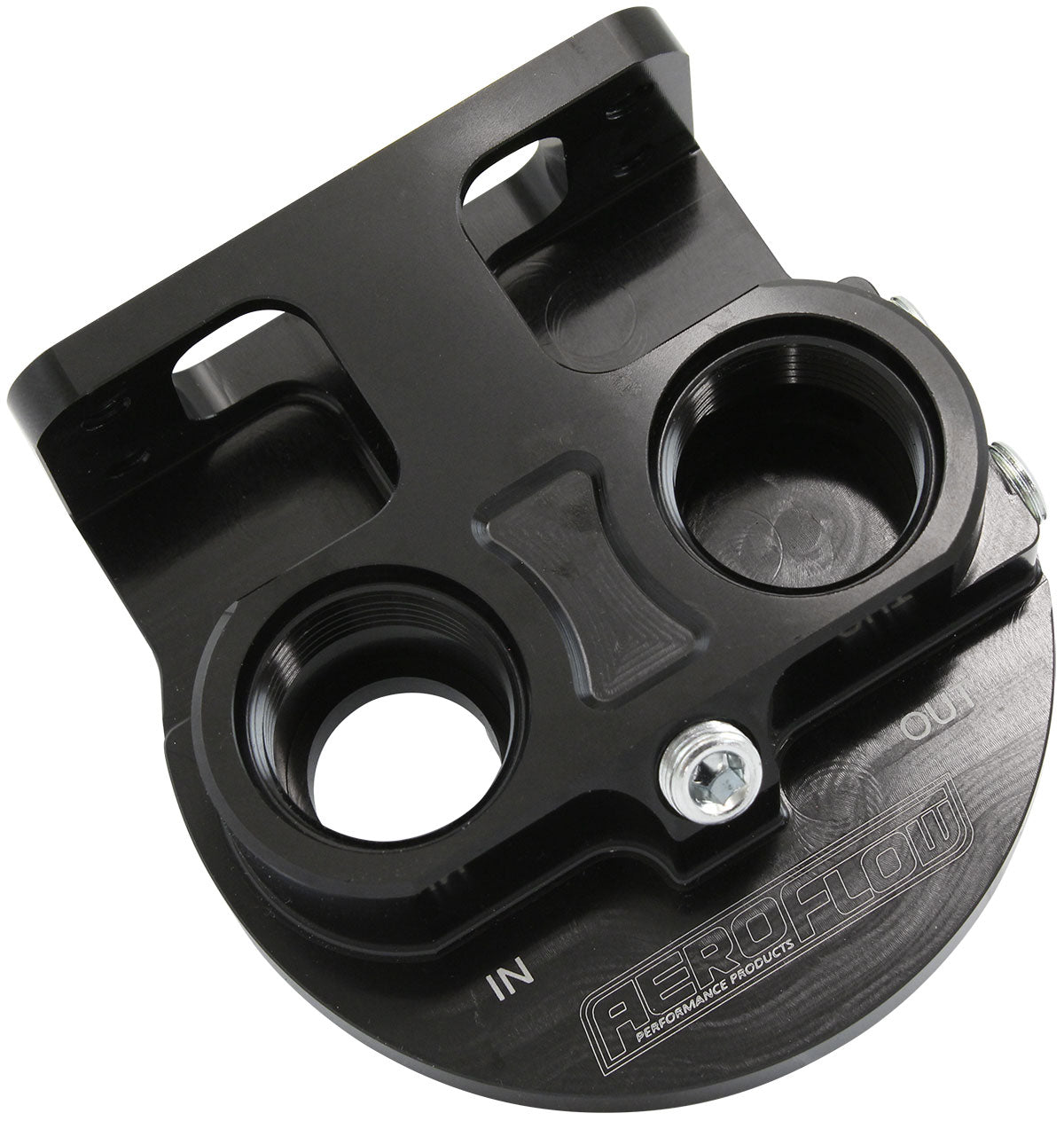

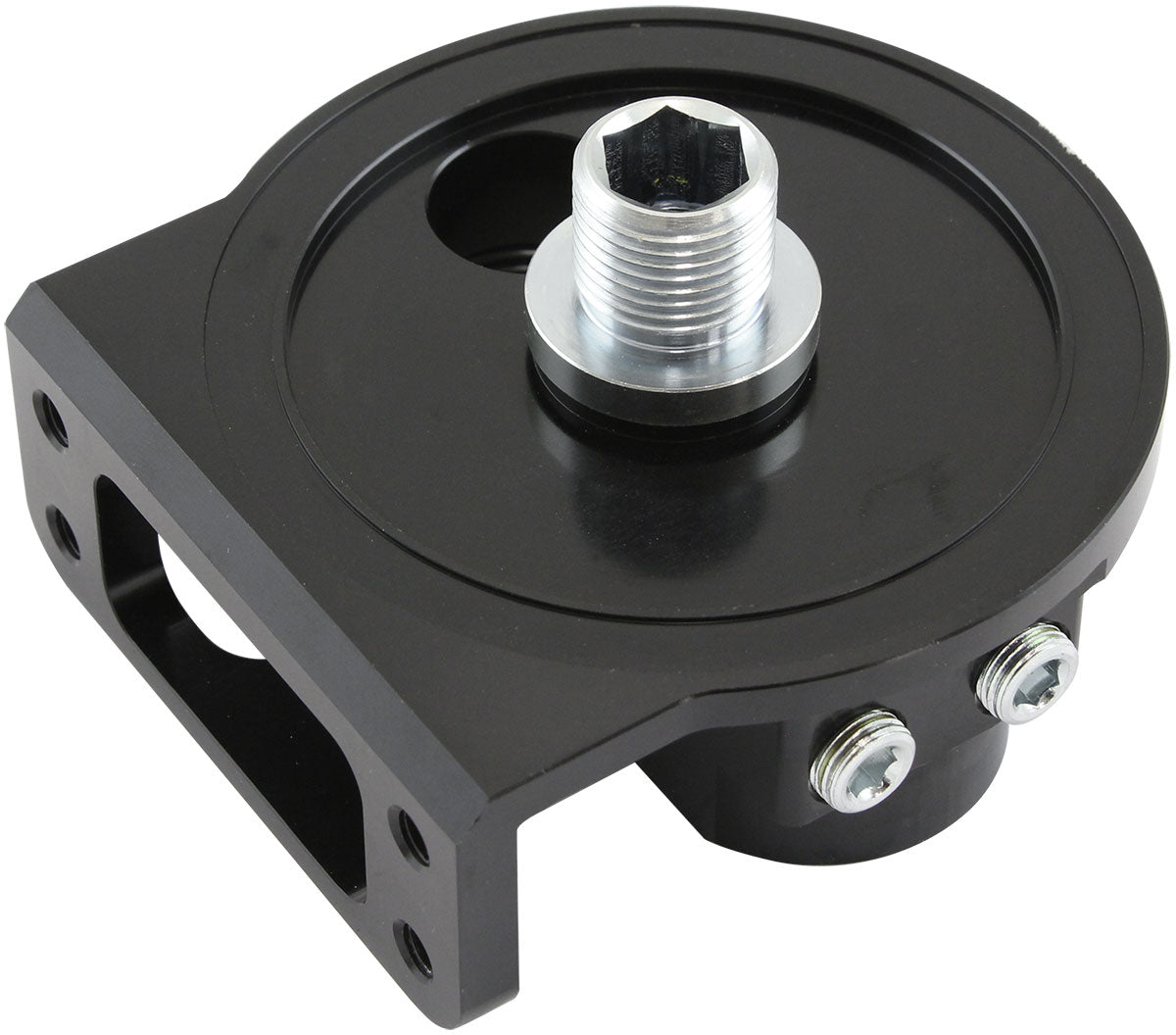

Move your oil filter to new location with Aeroflow Performance universal Billet Remote Oil Filter head. This is great for mounting an engine oil filter away from your engine, to make oil filter changes easier or where space is limited in the engine bay. Two labelled inlet and outlet -12 ORB ports are provided for plumbing the engine oil to and from the oil filter remote mount. The main body is made from billet 6061 aluminium, then anodized black for great looks and corrosion resistance. Integrated one piece bracket which can be used to make installation easier in various universal applications. Featuring 3 x 1/8” NPT female ports for various auxiliary accessories such as turbo feed, sensors and more.
This product has a 13/16”-16 filter thread insert supplied with kit.
Specifications:
Overall Diameter: 97.8mm
Body Height: 34.50mm
Centre to Centre -12ORB Ports: 48.30mm
Centre to Centre M6 x 1.00mm Mounting Holes: 63.50mm
Important Information:
WARNING: This is only one component required to complete your oil filter relocation. Other components such as oil filters, rubber hoses, fittings etc are all sold separately.
