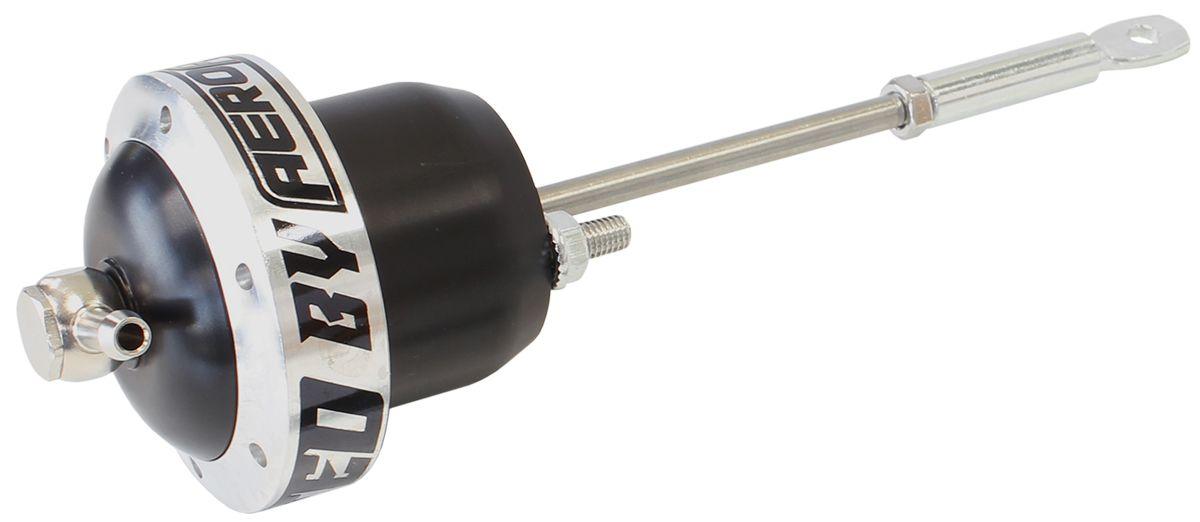

Aeroflow Billet Actuator / Internal Gate (AF8050-1022)

AF8050-1022 - UNIVERSAL BILLET ACTUATOR

Universal Application, 14 PSI

Part Number: AF8050-1022

The Aeroflow Performance billet internal wastegate actuator is designed to provide better turbo response, stable boost control and better management of boost pressures. This billet actuator is constructed from high grade aluminium with stainless steel adjustable rod and connecting clevis for corrosion resistance which makes it a much stronger and more reliable replacement for any OEM application. The ability to interchange for various spring pressures are great for any application to suit a range of boost pressures.

Specifications: AF8050-1011 - 7 PSI spring.
AF8050-1012 - 9 PSI spring.
AF8050-1013 - 14 PSI spring.
AF8050-1014 - 20 PSI spring.
Dimensions :
Body Diameter - 49mm
Locking Ring Diameter - 64mm
Body Length - 65mm
Minimum Rod Length - 127mm
Maximum Rod Length - 150mm
Actuator Rod Eyelet - 5.95m m
