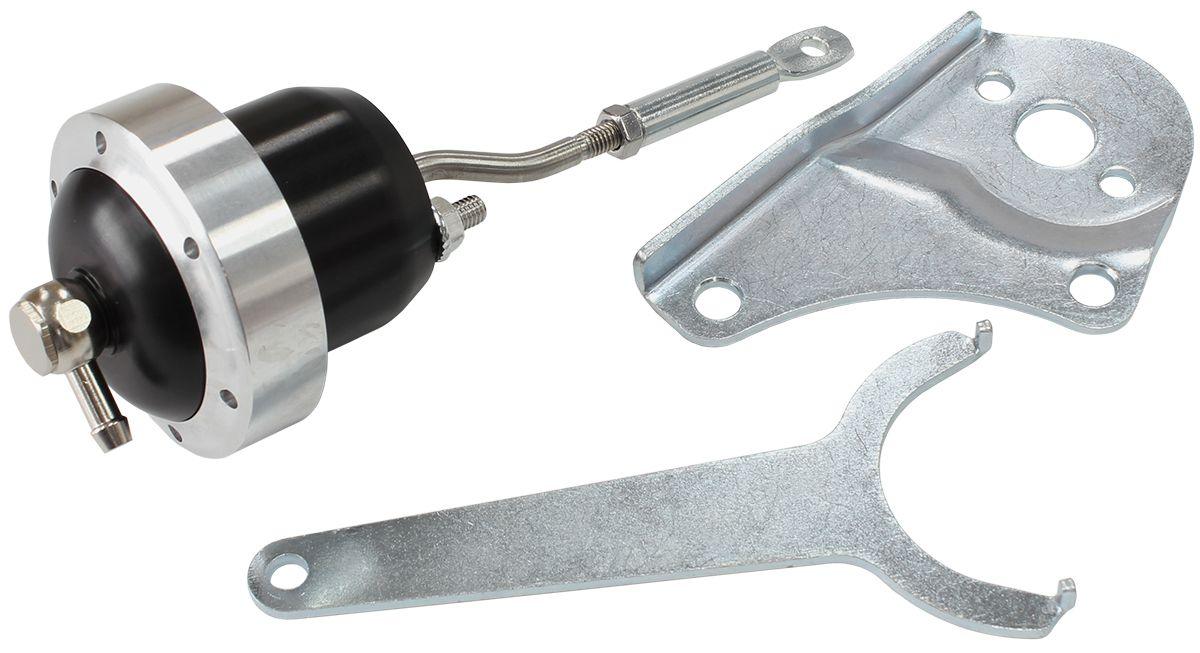

Aeroflow Billet Actuator / Internal Gate (AF8050-1021)

AF8050-1021 - T25 T28 BILLET ACTUATOR

Suit T25/T28 Turbo, 14 PSI

Part Number: AF8050-1021

The Aeroflow Performance billet internal wastegate actuator is designed to provide better turbo response, stable boost control and better management of boost pressures. This billet actuator is constructed from high grade aluminium with stainless steel adjustable rod and connecting clevis for corrosion resistance which makes it a much stronger and more reliable replacement for any OEM application. The ability to interchange for various spring pressures are great for any application to suit a range of boost pressures.

Specifications: Dimensions:
Body Length -
75mm (2-61/64”).
Body Diameter -
67mm (2-5/8”).
Rod Actuator Adjustable Length -
138mm to 160mm (5-7/16” to 6-19/64”).
Barb -
5 mm (13/64”).

Upgrade Springs Suit AF8050-1021 Billet Actuator:
AF8050-1011
- Yellow: 7 PSI spring
AF8050-1012
- White: 9 PSI spring
AF8050-1013
- Blue: 14 PSI spring (Installed)
AF8050-1014
- Green: 20 PSI spring
