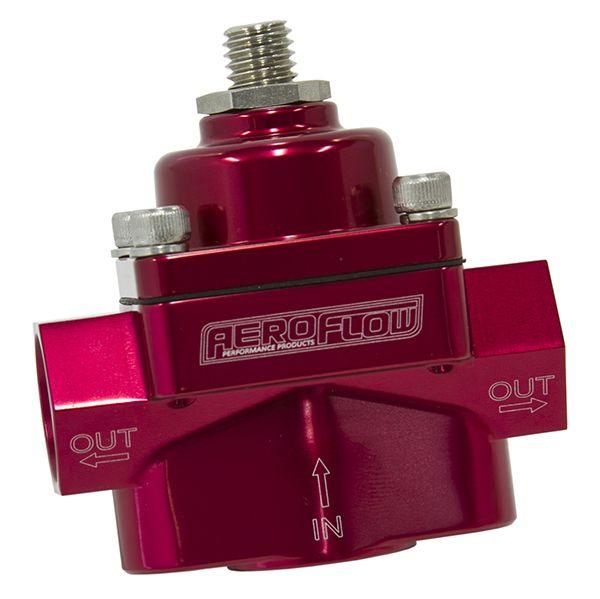

Aeroflow Billet 2-Port Fuel Pressure Regulator with -8 ORB Ports (AF49-3001R)
Red Finish. 1-11 psi Adjustable
Aeroflow Billet 2-Port Fuel Pressure Regulator with -8 ORB Ports (AF49-3001R)
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
RED STYLE REG 1-11 PSI ADJUSTA
Red Finish. 1-11 psi Adjustable
Part Number: AF49-3001R
Aeroflow fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburettor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems. These billet aluminium regulators are fully adjustable from 1 to 11 PSI so regulating the fuel pressure to your engines needs is a simple task. available with either 3/8" NPT or -8ORB female threads and are the perfect choice for fuel systems running a dead head system with no return line. Available in blue, black and red anodised or polished finishes.
Suitable for use with pump fuel, E85 alcohol and diesel fuels.
Note: Recommended for use with Carburettor fuel pumps only - not EFI.
Specifications: Dimensions
Overall Length - 70mm
Body Height - 59mm
Bracket Height - 42mm
Overall Width - 38mm
Bracket Centre to Centre - 43mm
Fittings - -8ORB
Adjustable from 1-11PSI
Important Information: Real world testing of this regulator with a dead head fuel system. Found an AeroflowBlue Fuel Pump (AF49-1009) would regulate from 2-12PSI. With the Compact Silver fuel pump (AF49-1064) would regulate from 3-6 PSI.
