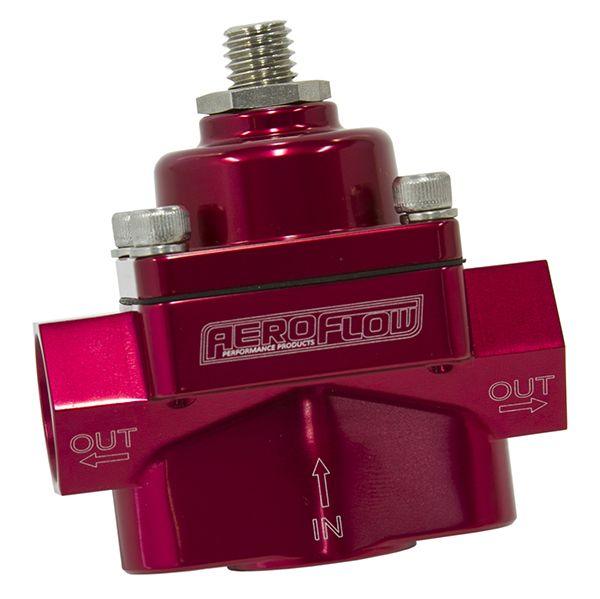

Aeroflow Billet 2-Port Fuel Pressure Regulator with 3/8" NPT Ports (AF49-4000R)
Red Finish. 4.5-9 psi Adjustable
Aeroflow Billet 2-Port Fuel Pressure Regulator with 3/8" NPT Ports (AF49-4000R)
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
BLUE STYLE REG 4.5-9 PSI ADJUS
Red Finish. 4.5-9 psi Adjustable
Part Number: AF49-4000R
Billet 2 Port Carb Fuel Regulator.
Made from Billet 6061-T6 aluminium, these regulators are an ideal replacement/upgrade from the traditional Holley style 2 port regulator. Available withNPT or ORB fittings and in 2 pressure adjustment ranges - 1-4psi & 4.5-9psi. Available in 4 different finishes - Blue, Red, Black & Polished. Comes with chrome mounting bracket and mounting screws.
Suitable for use with pump fuel, E85 alcohol and diesel fuels.
Note: Recommended for use with Carburettor fuel pumps only - not EFi.
Specifications: Dimensions:
Body Overall Length = 69mm
Body Overall Width = 41mm
Body Overall Height = 62mm
Fittings: 3/8" NPT Female
Adjustable Pressure Range: 4.5-9psi
Important Information: Real world testing of this regulator with a dead head fuel system. Found an AeroflowBlue Fuel Pump (AF49-1009) would regulate from 2-12PSI. With the Compact Silver fuel pump (AF49-1064) would regulate from 3-6 PSI.
