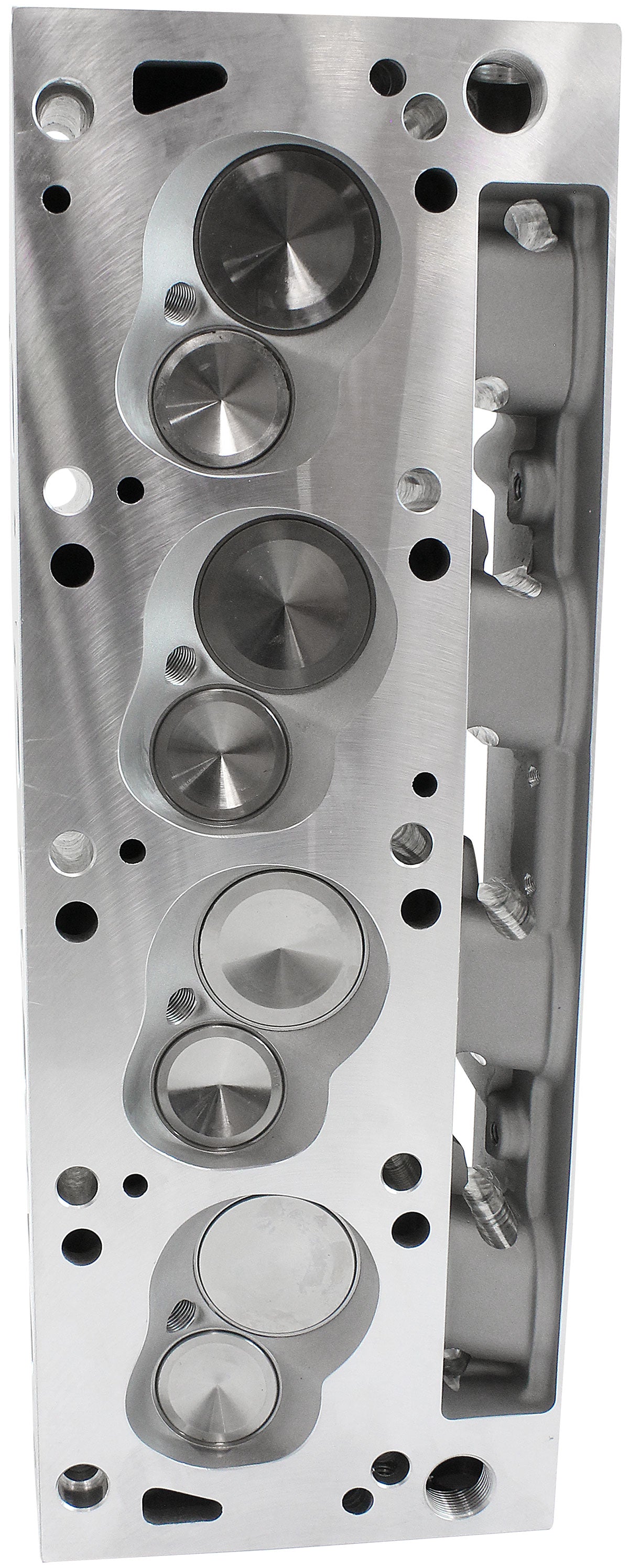

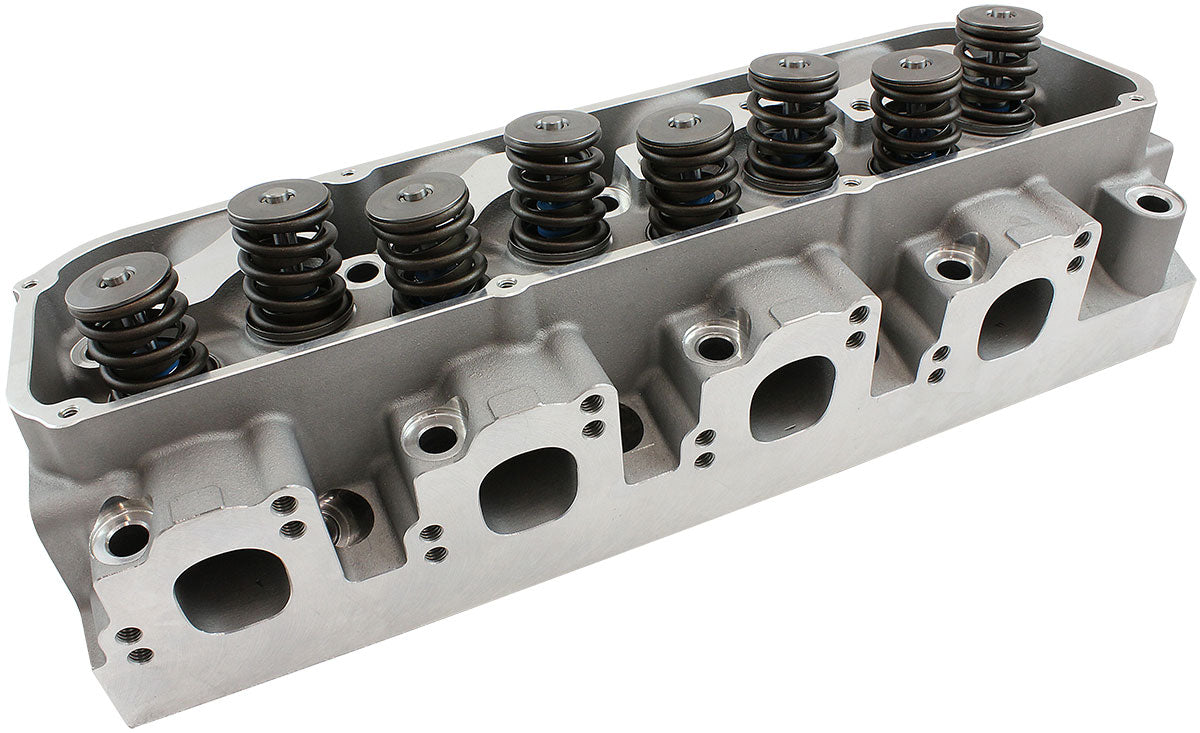

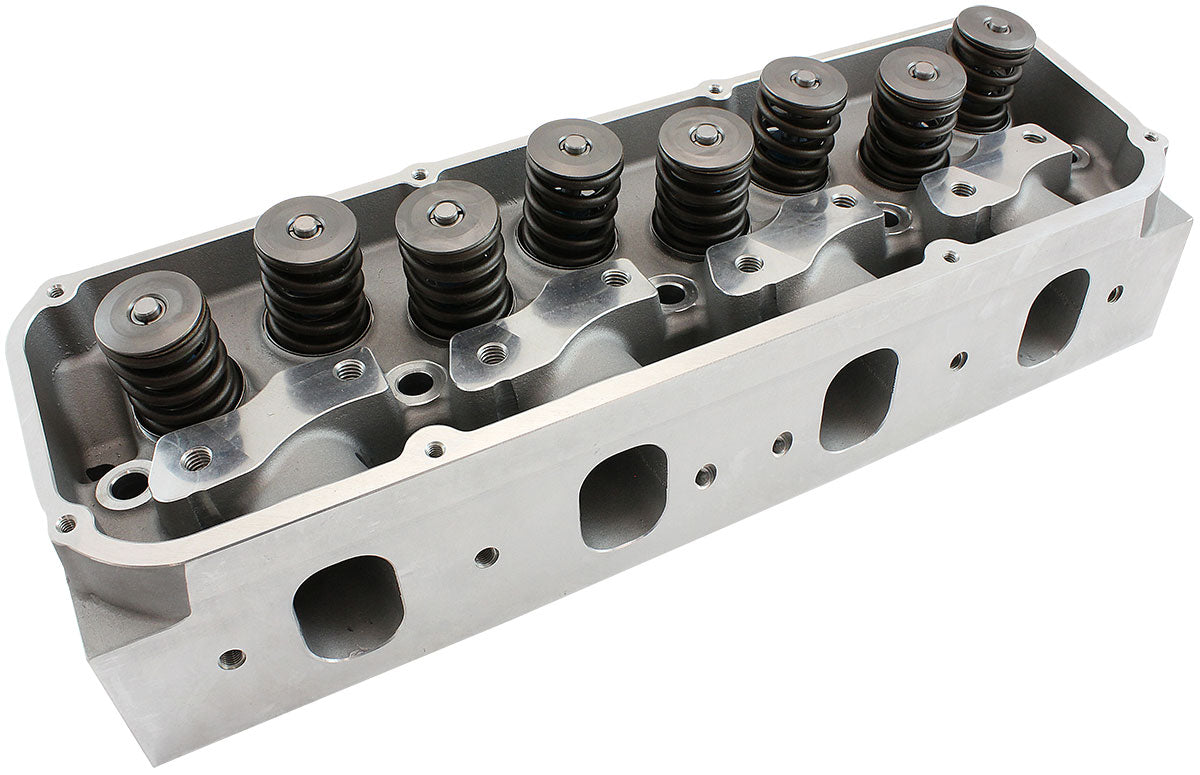

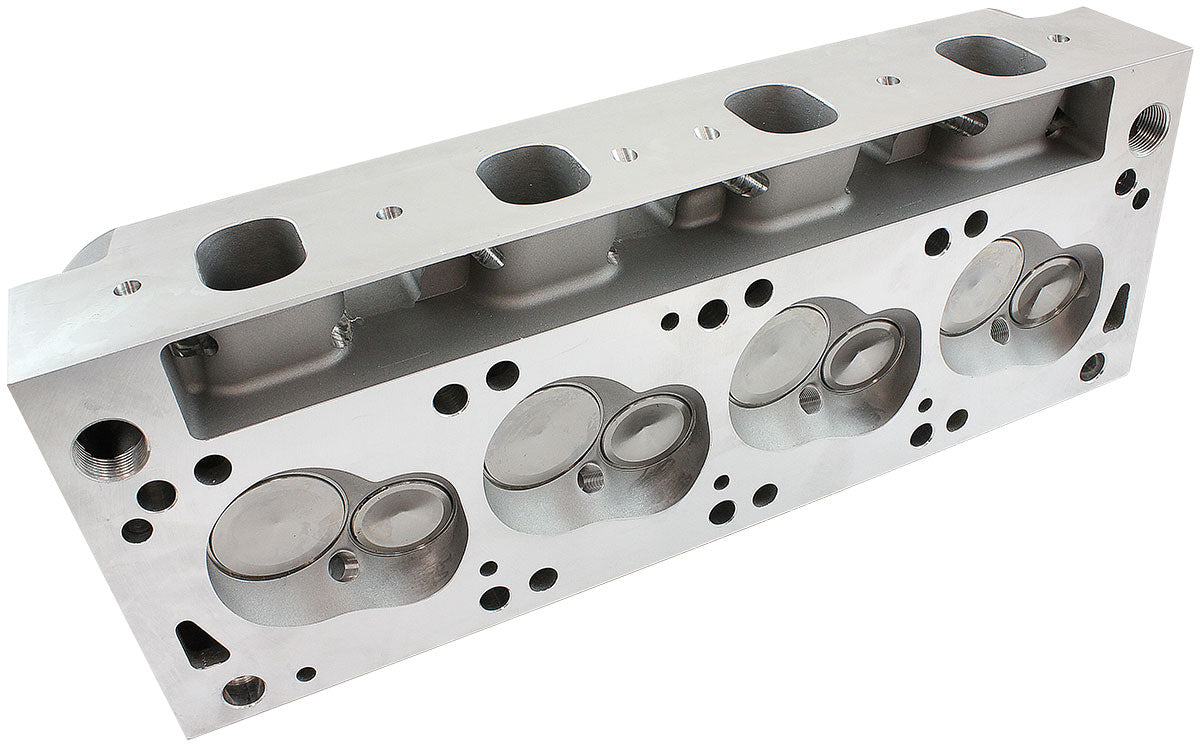

Aeroflow Assembled 208cc Aluminium Cylinder Heads, 68cc Chamber, Pair - AF95-2351
Fits Ford 302-351 Cleveland V8
Aeroflow Assembled 208cc Aluminium Cylinder Heads, 68cc Chamber, Pair - AF95-2351 is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
2V CLEVELAND ALLOY HEADS ASSE
Fits Ford 302-351 Cleveland V8
Part Number: AF95-2351
The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilize ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
The Aeroflow Performance Ford Cleveland 2V cylinder heads are designed for street / race performance engines to give the ultimate in flow at a budget price. Made from A356 aluminium castings the 208cc cylinder heads are ideal for operating in the idle to 6500 rpm range. The complete heads include larger then stock 1.550" diameter single valve spring to handle up to .620" maximum lift. Suits flat tappet and hydraulic roller camshaft. Sold as a pair. Rocker studs and guide plates sold separately.
Specifications:
Head Specifications
Material: A356 Aluminium
Chamber: 68cc
Intake Port Volume: 208cc
Intake Port Dimension: 2.08" x 1.49"
Exhaust Port Volume: 119cc
Exhaust Port Dimension: 1.61" H x 1.50" W
Exhaust Port Location: OEM
Spark Plug Location: OEM
Intake Valve Diameter: 2.10"
Exhaust Valve Diameter: 1.65"
Valve Stem Diameter: 11/32"
Valve Spring Pocket I.D.: 1.70"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: 0.560"
Rocker Stud Thread Size: 7/16" x 14
Valve Angle: 10°
Deck Thickness: .470"
Valve Spring Specifications
Installed Height: 1.880"
Installed Pressure: 123lbs
Open Pressure: 280lbs @ 500"
Maximum Lift: .630" @ 1.160"
Coil Bind: 1.150"
Spring Outside Diameter: 1.550"
Spring Inside Diameter: 1.135"
Spring Free Length: 2.300"
Valve Spring Retainer Outside Diameter: 1.495"
Valve Spring Retainer Step 1: 1.115"
Valve Spring Retainer Step 2: 0.640"
Valve Spring Locator Outside Diameter: 1.700"
Valve Spring Locator Inside Diameter: 1.530"
Important Information:
We recommend to check installed spring seat pressure & open pressure before installing your cylinder heads to make sure the spring pressure is correct for your application.
CLEANING:Aeroflow thoroughly cleaned your cylinder heads prior to dispatch. The heads were washed in a water-soluble chemical agitation tank and blown out with high-pressure air three to four times before being packaged.
During certain machining operations, however, small metal particles can become lodged in the water jackets and may dislodge during transit. Please note that a single chip approximately the size of a 10-cent coin can fragment into many smaller particles, which may make the situation appear more significant than it is.
It is not uncommon, when applying high-pressure air to the water jackets, for additional debris to be expelled. Aeroflow recommends thoroughly blowing out the cylinder heads prior to installation.
