Aeroflow 90° Low Profile -8ORB to EFI Push On 5/16" Barb Blue Finish (AF969-05-08)

Aeroflow 90° Low Profile -8ORB to EFI Push On 5/16" Barb Blue Finish (AF969-05-08)

SKU: AF969-05-08
$81.50 - $81.50
$81.50
$81.50 - $81.50
$81.50
+ GST
Availability:
Available, allow for 2-10 days shipping

AF969-05-08 - SLIMLINE -8ORB TO 5/16" EFI

Part Number: AF969-05-08

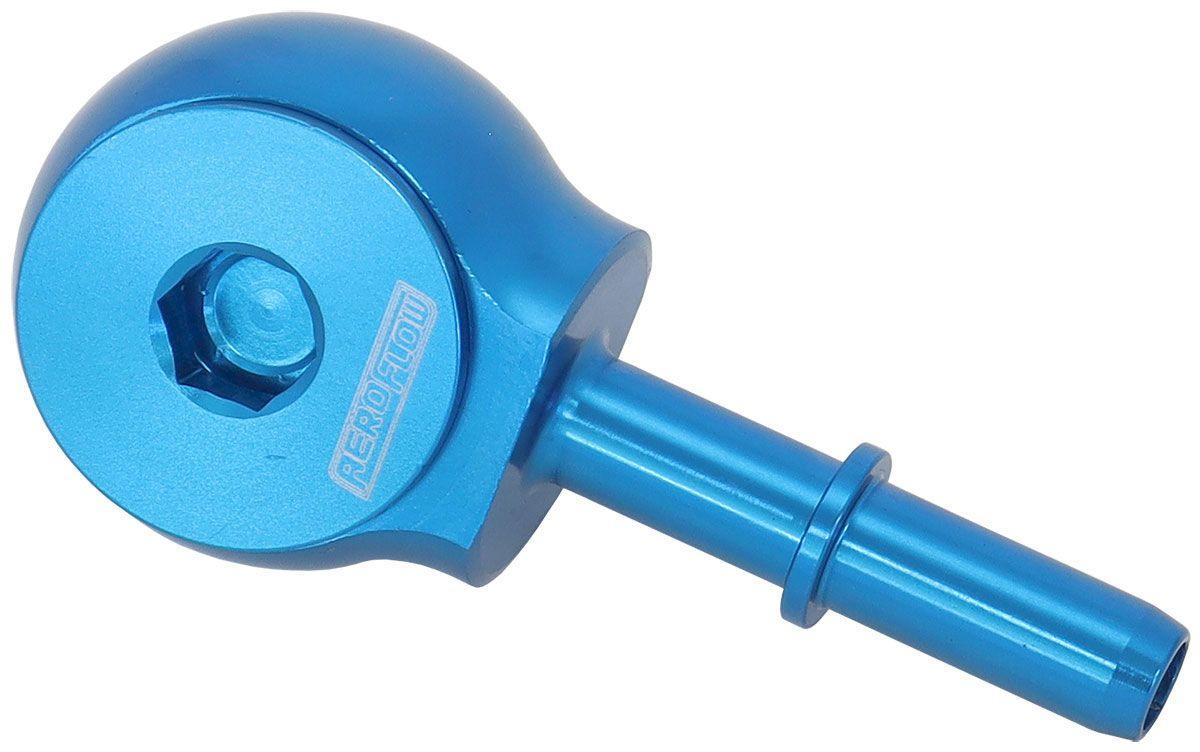

Low Profile 90 Degree -8ORB to EFI Push On 5/16" (7.95mm) Straight Barb.
Aeroflow have designed these low profile 90 degree ORB to efi push on male adapters that are perfect for tight clearance applications. The EFI push male fitting is perfect for OEM applications and designed specifically to suit the range of Aeroflow Performance billet quick connect EFI fittings as well. They swivel 360 degrees allowing you get the perfect desired position and are hi flow so not only are they low profile they do not restrict flow. Manufactured from 6061-T6 aerospace grade aluminium and available in Blue, Black and Silver anodised finishes. Supplied with Viton O-rings and available in straight and stepped sizing ranging from -6 to -10ORB to various barb sizes.

Specifications: Dimensions :
Height From O-Ring - 19mm
Overall Length - 68.60mm
Overall Width - 31.20mm
